DOUBLE BRANCH 45° - (837.050.050 S)
×
![]()
Part Of the Series: Double branch-45-90
Type no.: 837.050.050 S
EAN no.: 5705499402254
VVS no.: 160236350
RSK no.: 1549408
NRF no.: 2172618
LVI no.: 0254452

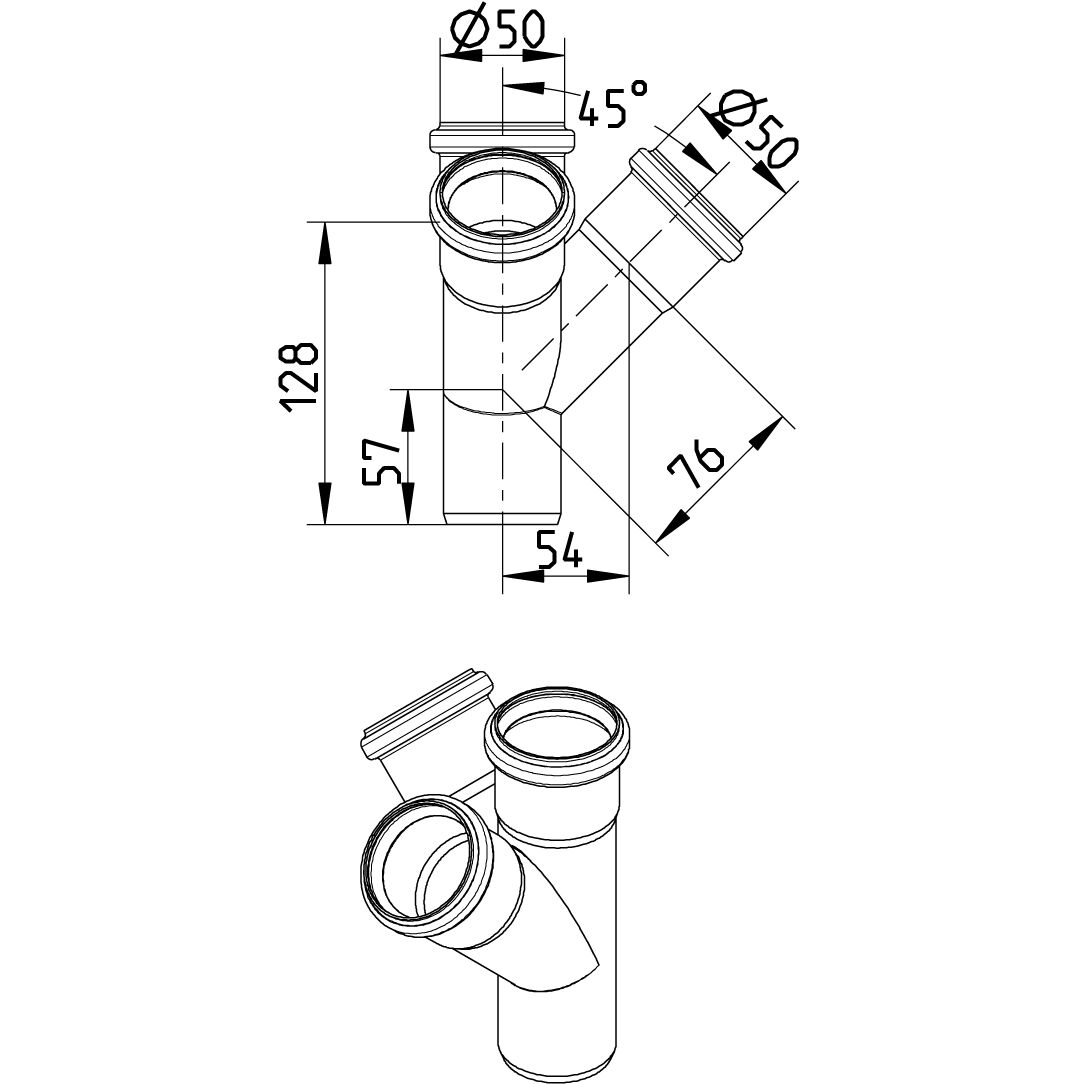

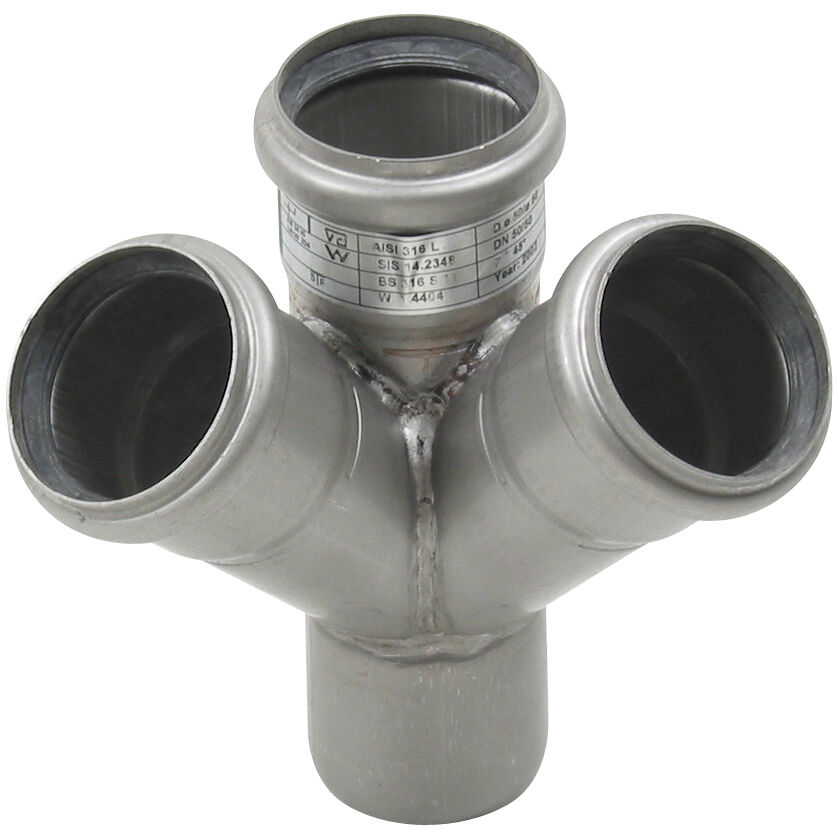

DOUBLE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 128 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,49 |
| Weight (lbs) | 1,08 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24 KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains
