DOUBLE BRANCH 45° - (836.050.050 S)

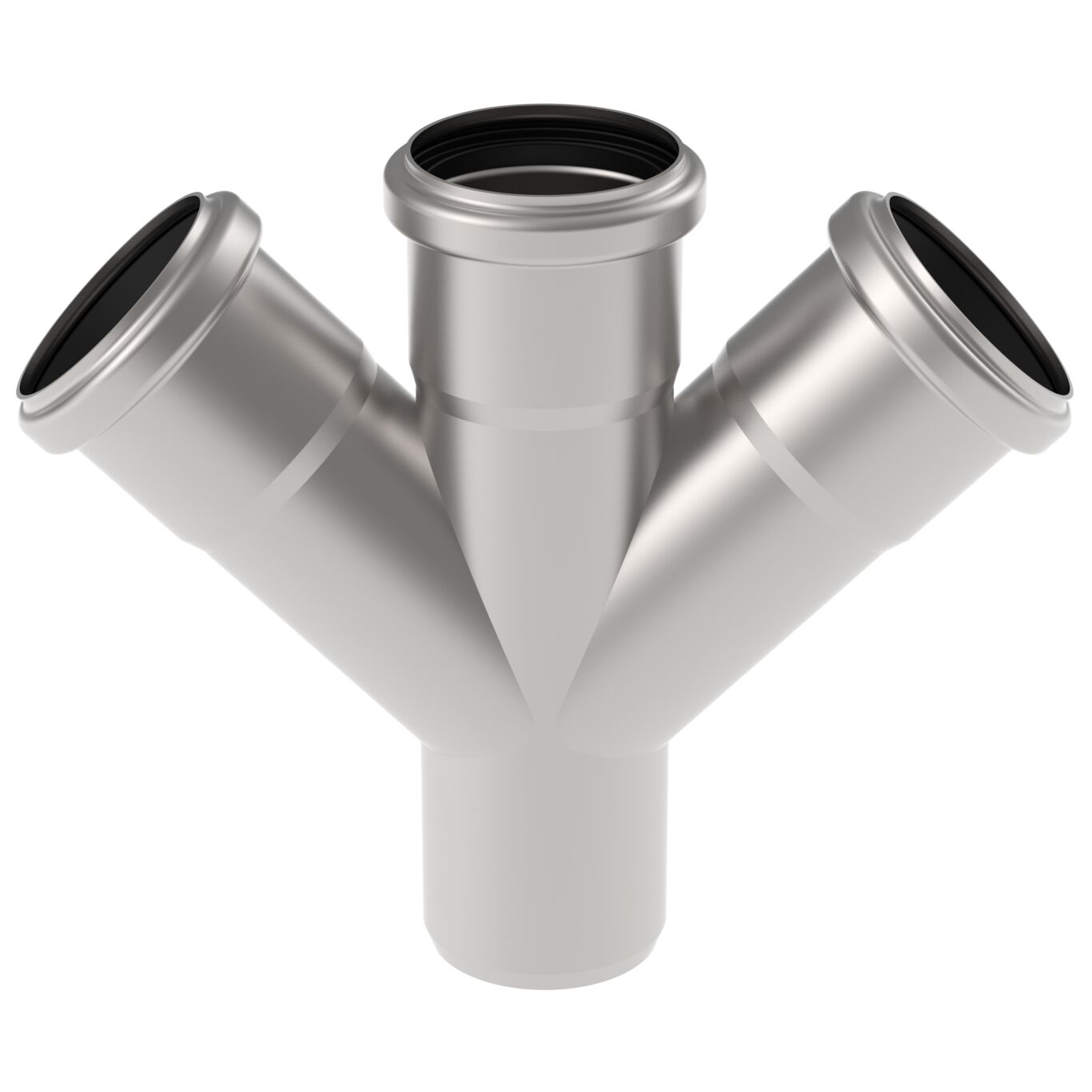

Product Image - Branch-87.5-access

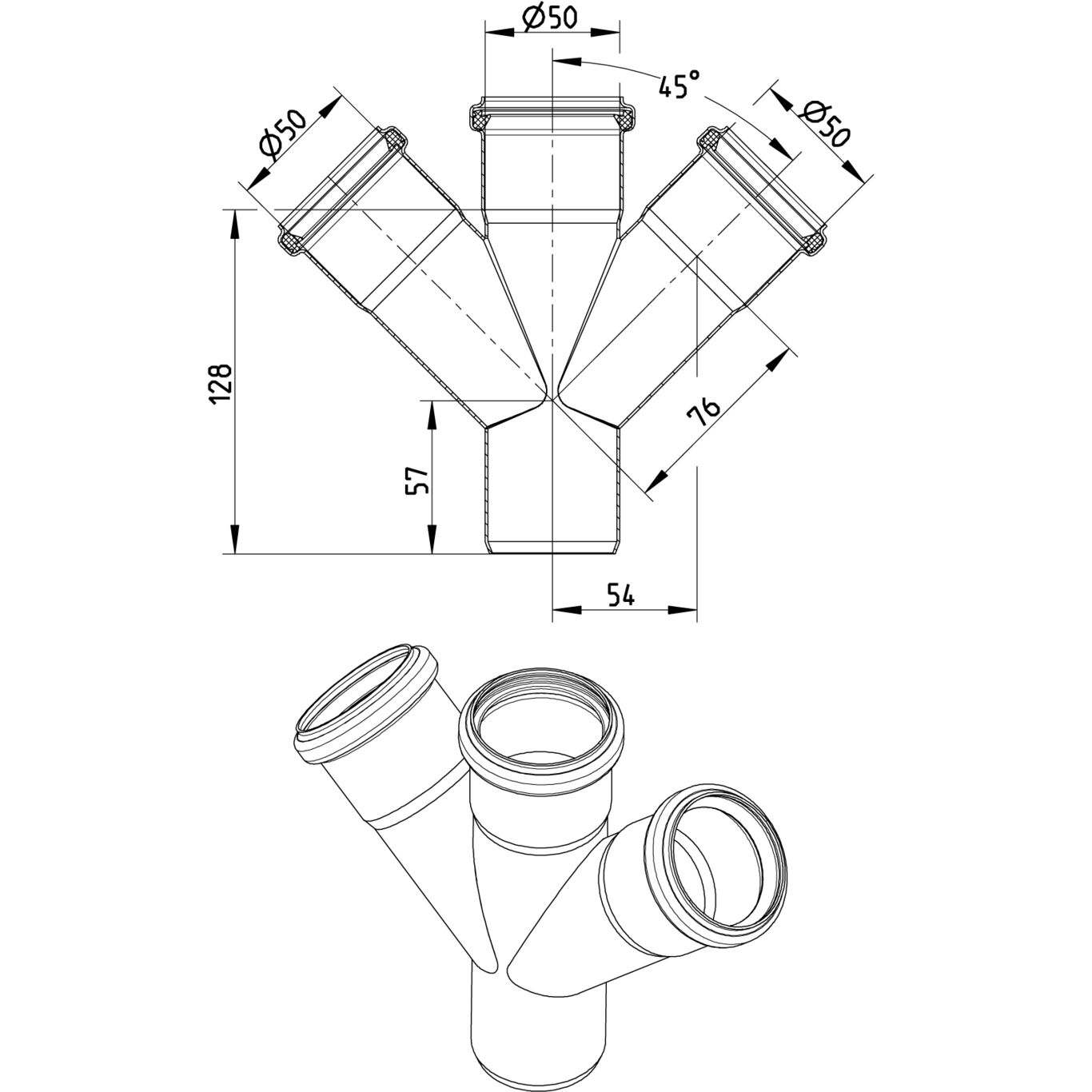

Line Drawing - Double branch-45-180

Part Of the Series: Double branch-45-180

Type no.: 836.050.050 S

EAN no.: 5705499402117

VVS no.: 160235350

RSK no.: 1549392

NRF no.: 2170503

LVI no.: 0253653

Take me to FAQ section

DOUBLE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	45
Length (mm)	128
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet dia. (Inch)	2
Outlet Diameter (mm)	50
Weight (kg)	0,45
Weight (lbs)	1,3

Downloads

Approvals and standards

For approvals and standards information, please refer to the below certificates.

FR - DTA 14.1/12-1811_V3 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Australasia Achilles Certificate - 46702-22 ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02 DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains
