BRANCH 89° - (830.050.075 AS)
×
![]()
Part Of the Series: Branch-89
Type no.: 830.050.075 AS
EAN no.: 5705499408904
NRF no.: 2172562

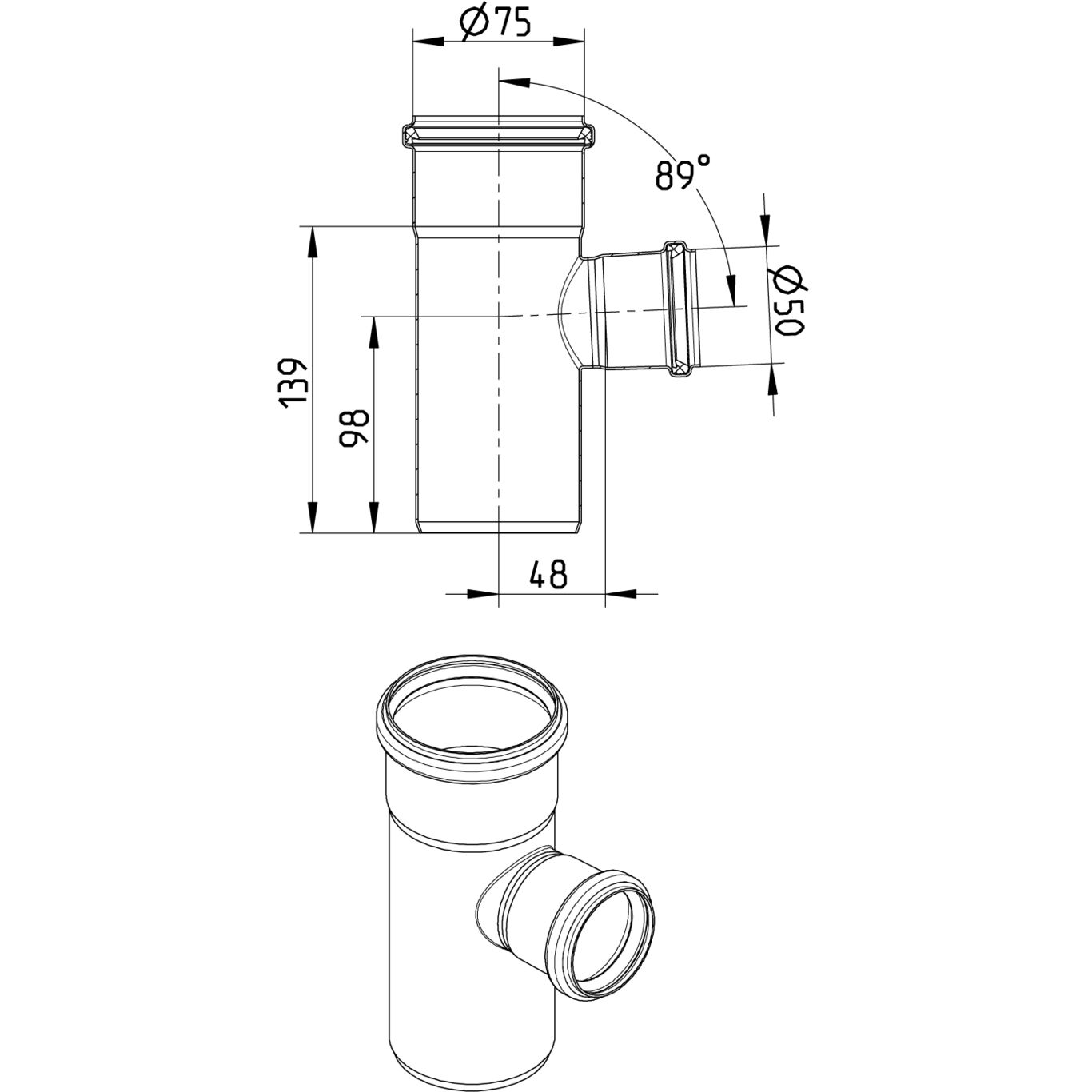

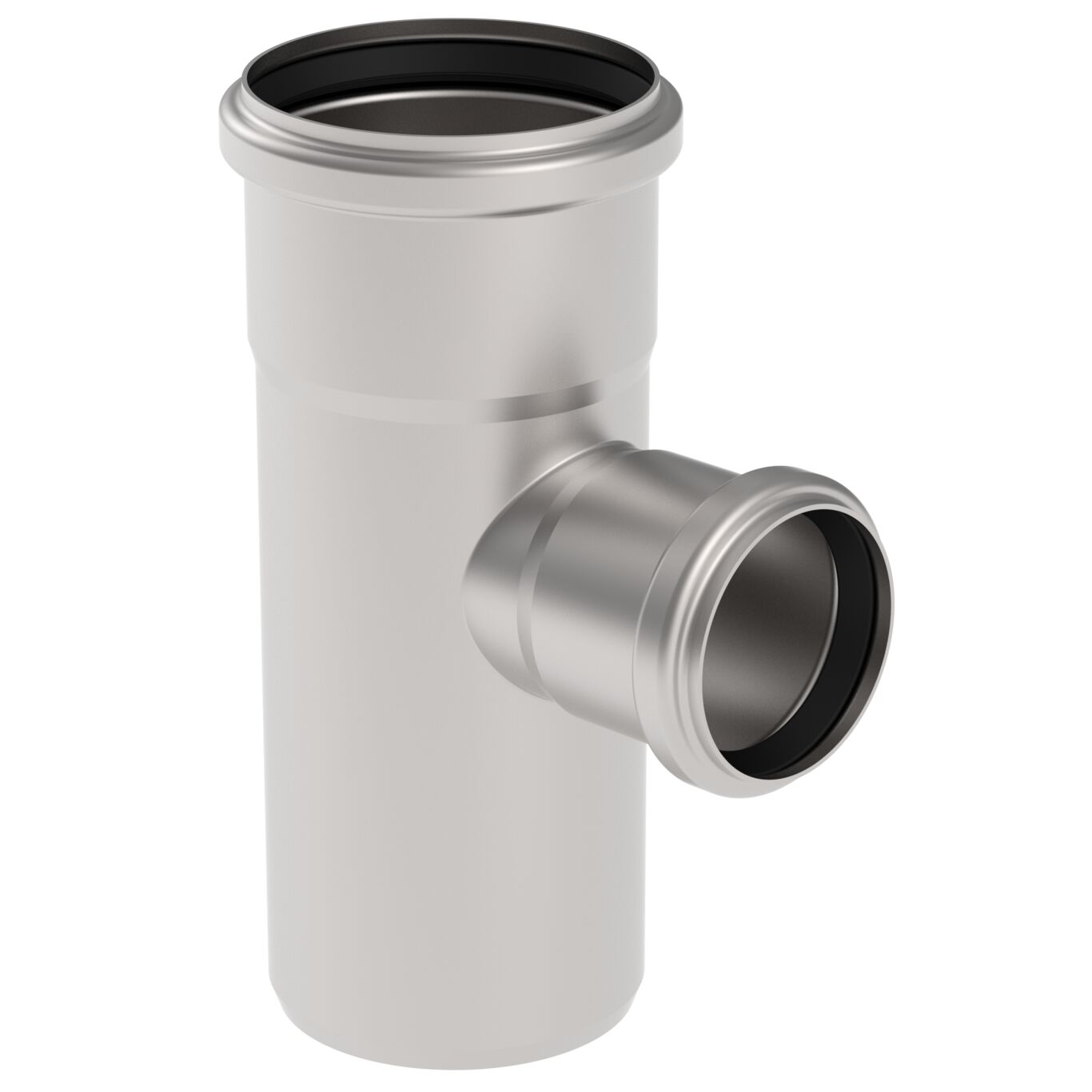

BRANCH 89°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 139 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,44 |
| Weight (lbs) | 0,97 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
