BRANCH 87.5° - (830.050.082 S)

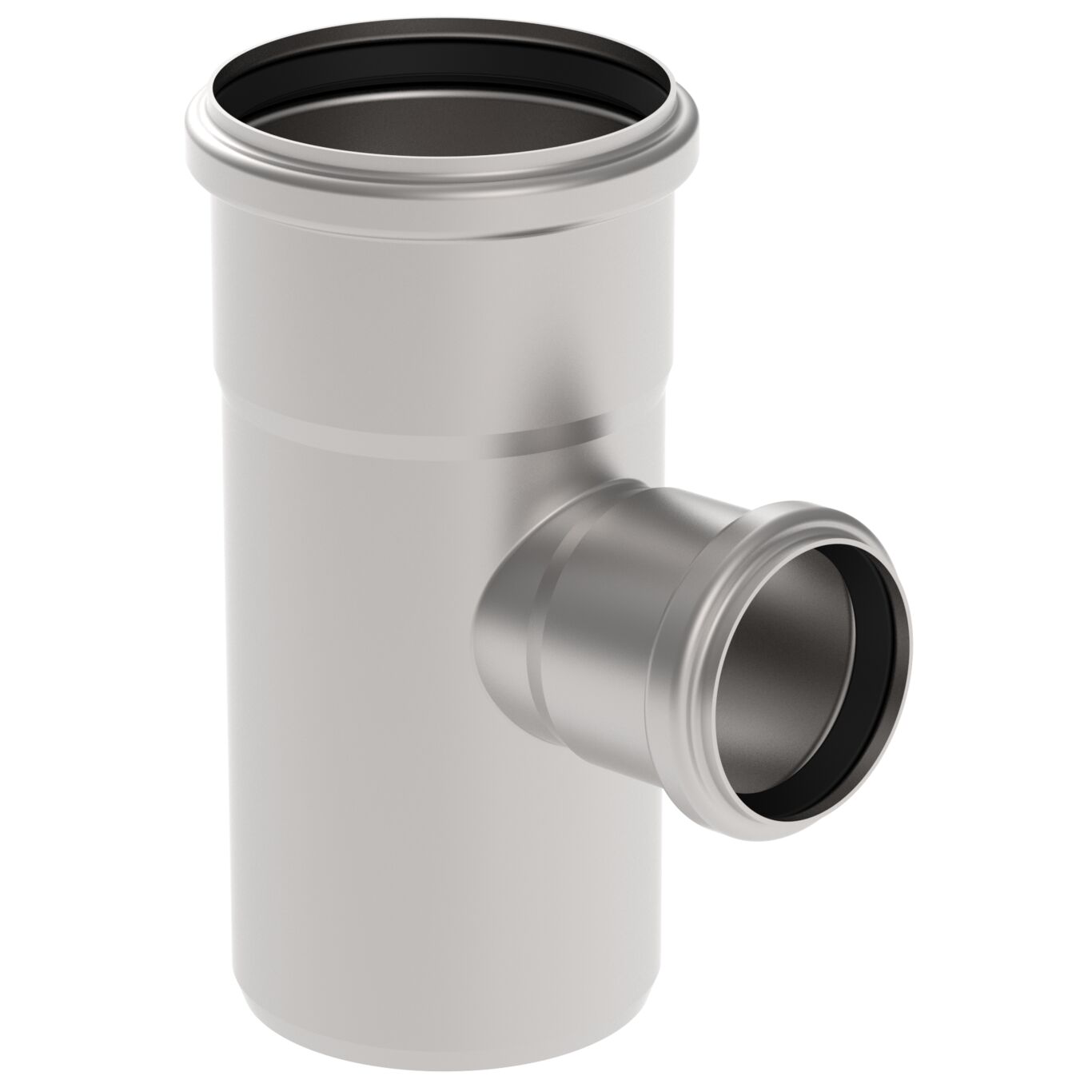

Product Image - Branch-89

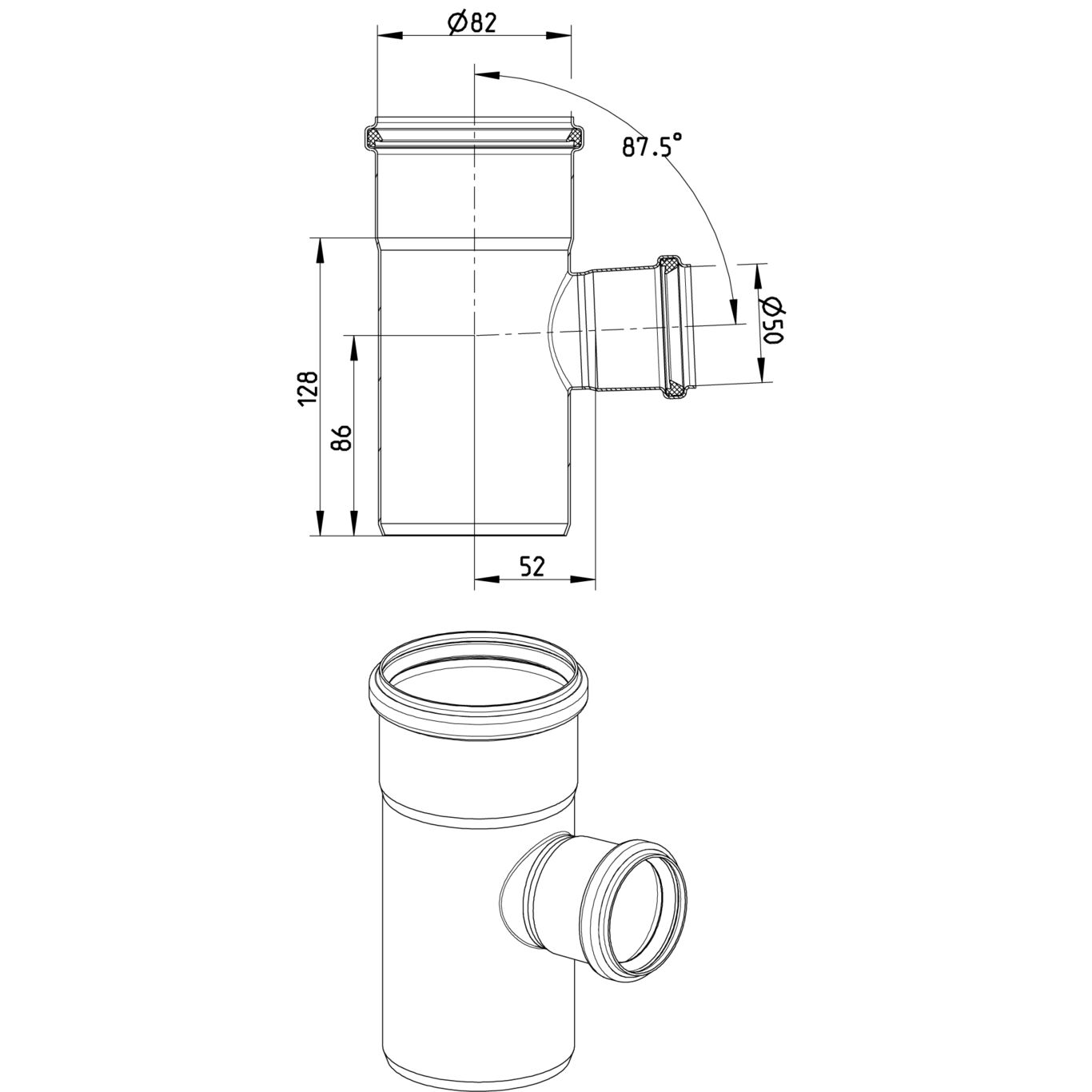

Line Drawing - Branch-87.5
×

Part Of the Series: Branch-87.5

Type no.: 830.050.082 S

EAN no.: 5705499411935

VVS no.: 160221380

NRF no.: 2172563

Take me to FAQ section

BRANCH 87.5°
-Pipe diameter: Ø82mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
All Renovation 82 products RS82
Angle (°) 87.5
Length (mm) 128
Material AISI 316L
Material (EN) EN 1.4404
Outlet dia. (Inch) 3¼
Outlet Diameter (mm) 82
Weight (kg) 0,47
Weight (lbs) 1,04
