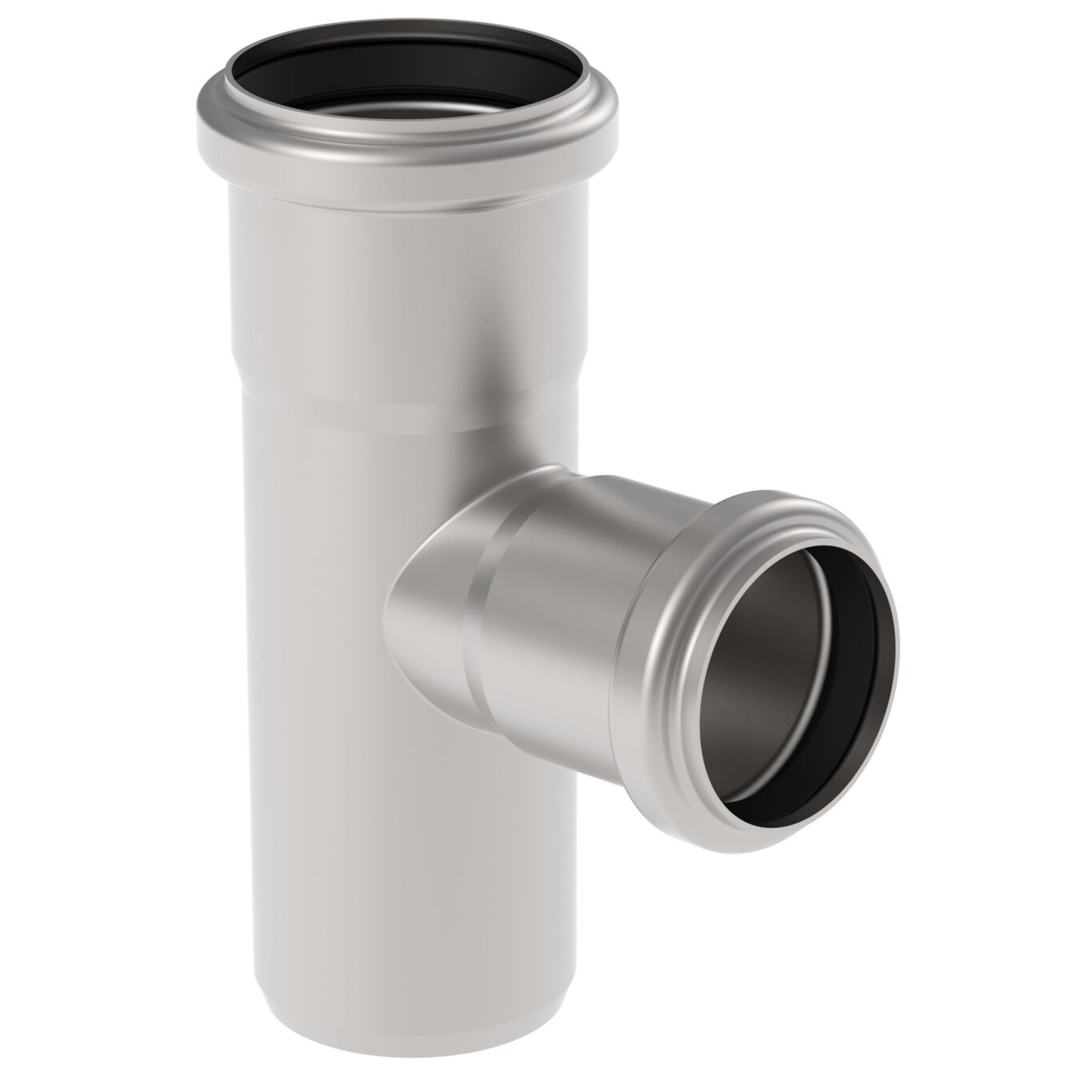

BRANCH 87.5° - (830.040.050 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.040.050 S
EAN no.: 5705499412963
VVS no.: 160221349
RSK no.: 1552761
NRF no.: 2172559
LVI no.: 0251952
BRANCH 87.5°

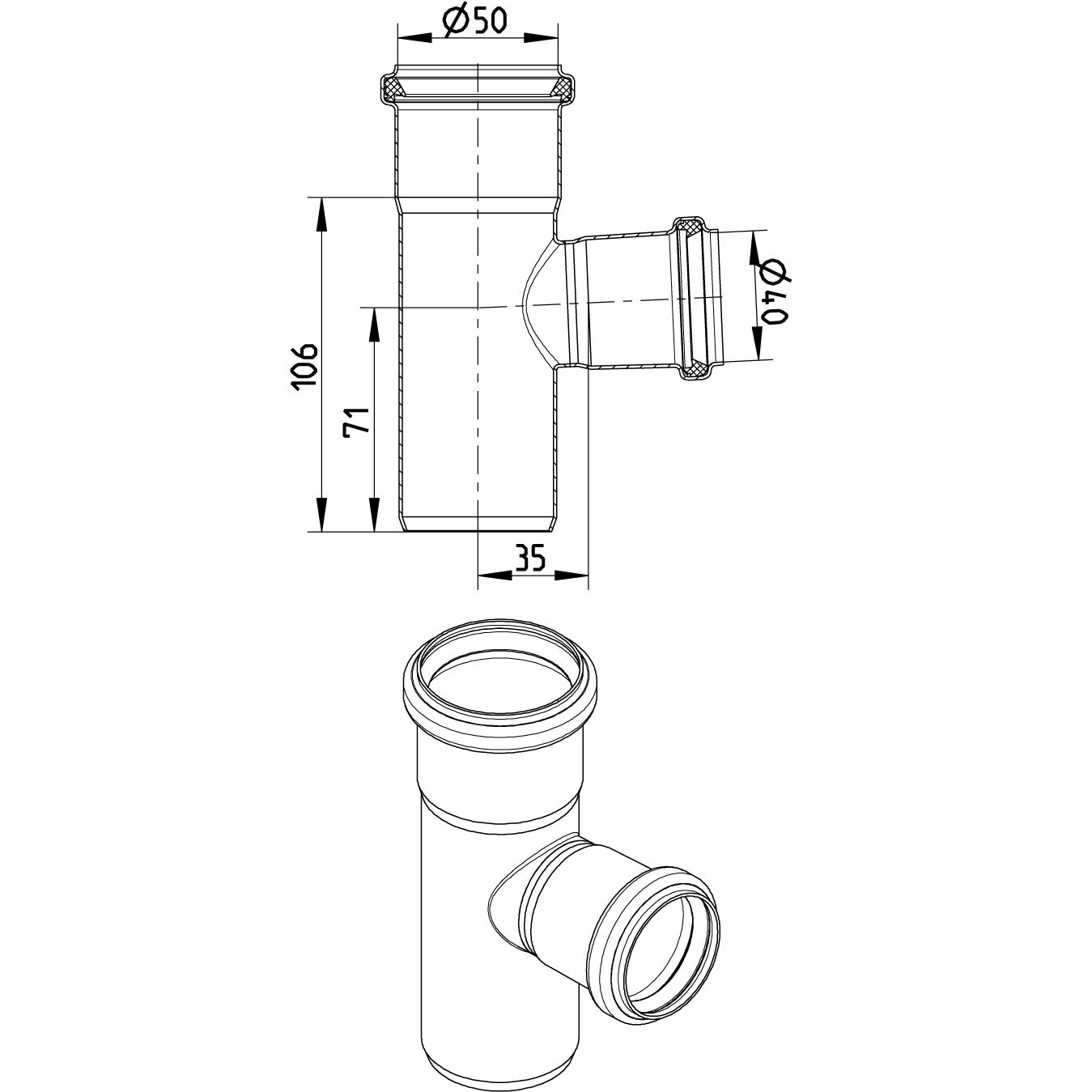

-Pipe diameter: Ø50mm. Branch diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 106 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,26 |
| Weight (lbs) | 0,57 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA
