OBLIQUE BRANCH 45° - (838.050.075)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.050.075
EAN no.: 5705499402377
VVS no.: 160224073
RSK no.: 1550111
NRF no.: 2170086
LVI no.: 0241155

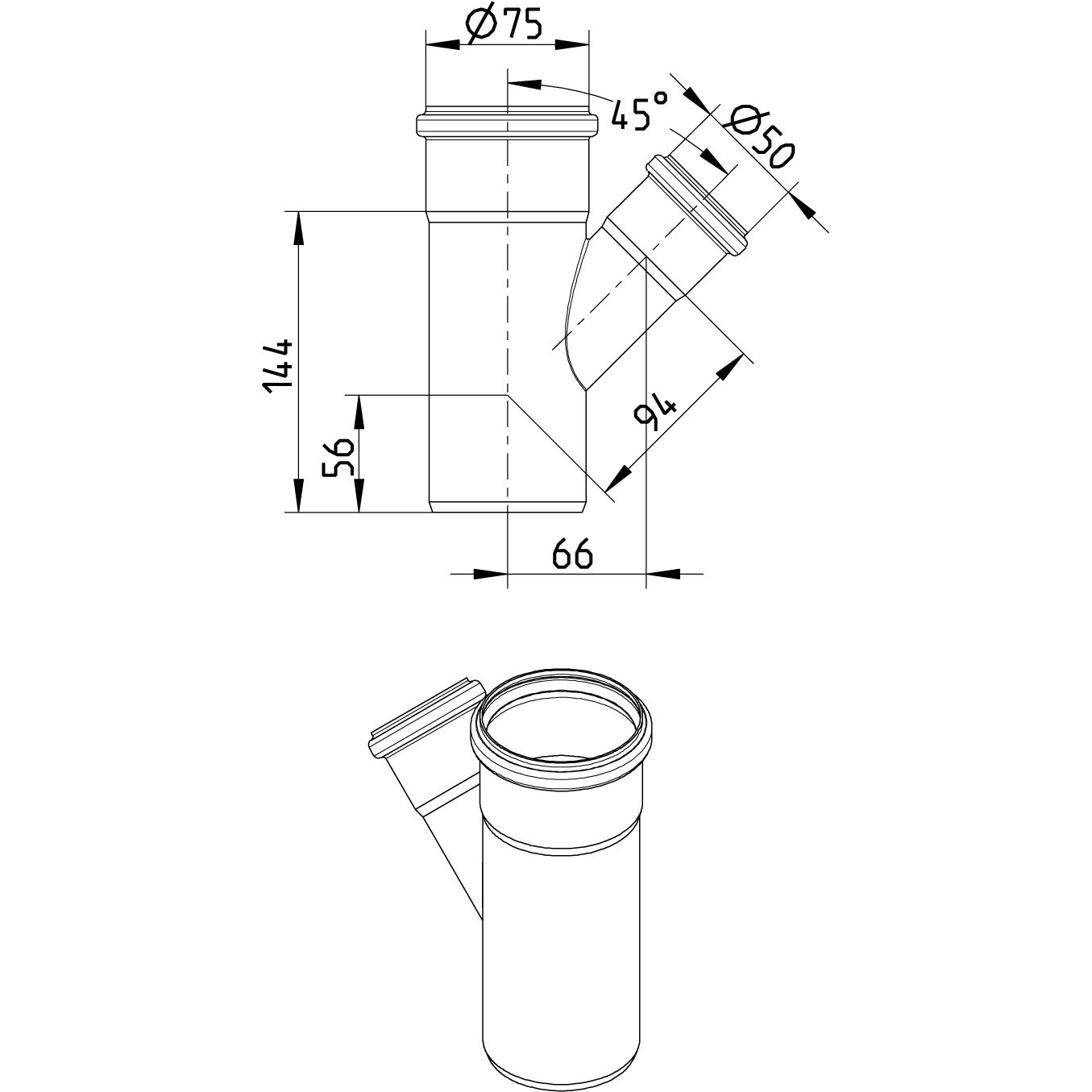

OBLIQUE BRANCH 45°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 144 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,48 |
| Weight (lbs) | 1,06 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
