BEND, LONG 87.5°, 250 MM - (821.090.050 S)
×
![]()
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.050 S
EAN no.: 5705499408768
RSK no.: 1550284
NRF no.: 2172538
LVI no.: 0250852

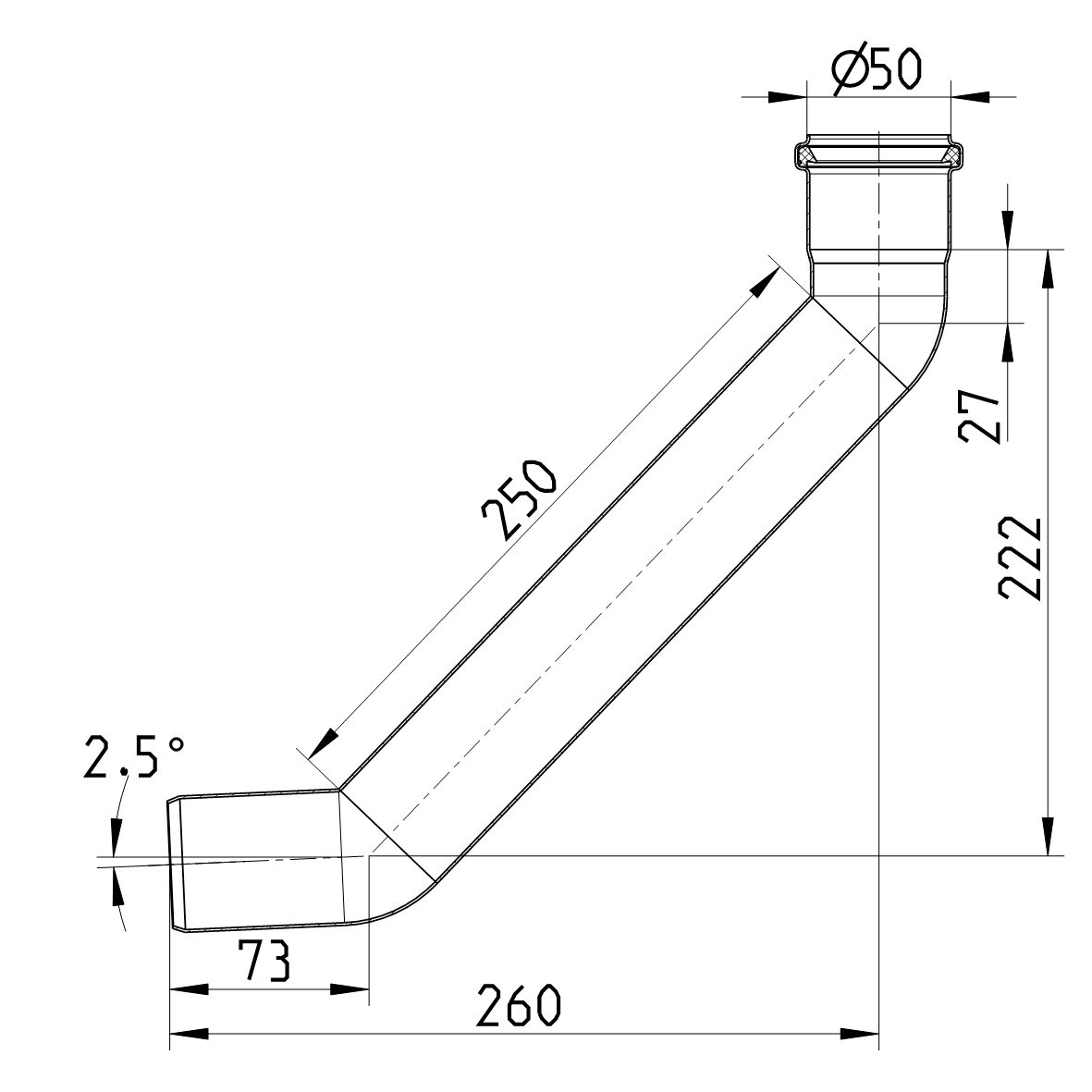

BEND, LONG 87.5°, 250 MM
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 221 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,50 |
| Weight (lbs) | 1,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432 Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA_02 Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes
