BEND 15° - (820.015.050 S)
×
![]()
Part Of the Series: Bend-15
Type no.: 820.015.050 S
EAN no.: 5705499401134
VVS no.: 160209350
RSK no.: 1550297
NRF no.: 2170734
LVI no.: 0250582

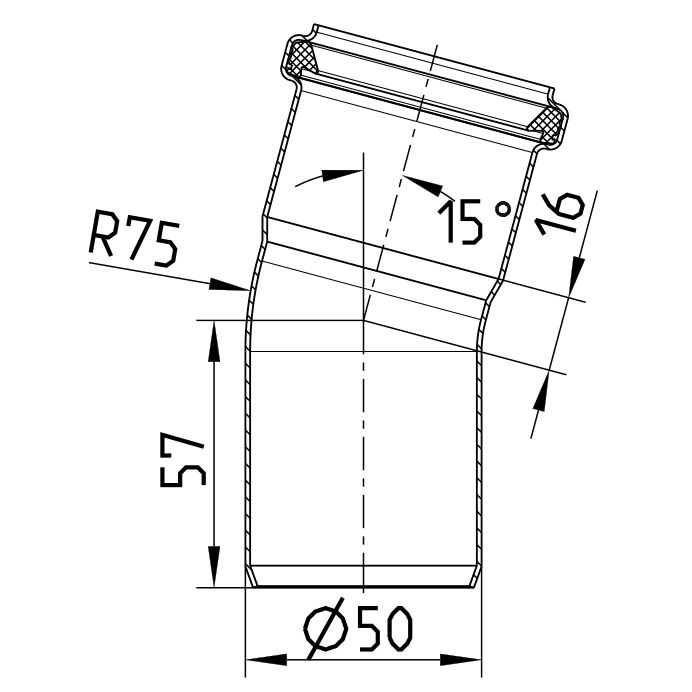

BEND 15°
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 15 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,15 |
| Weight (lbs) | 0,33 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02
