PENETRATION WITH SPIGOT - (872.089.075 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 872.089.075 S
EAN no.: 5705499411362
NRF no.: 2170346

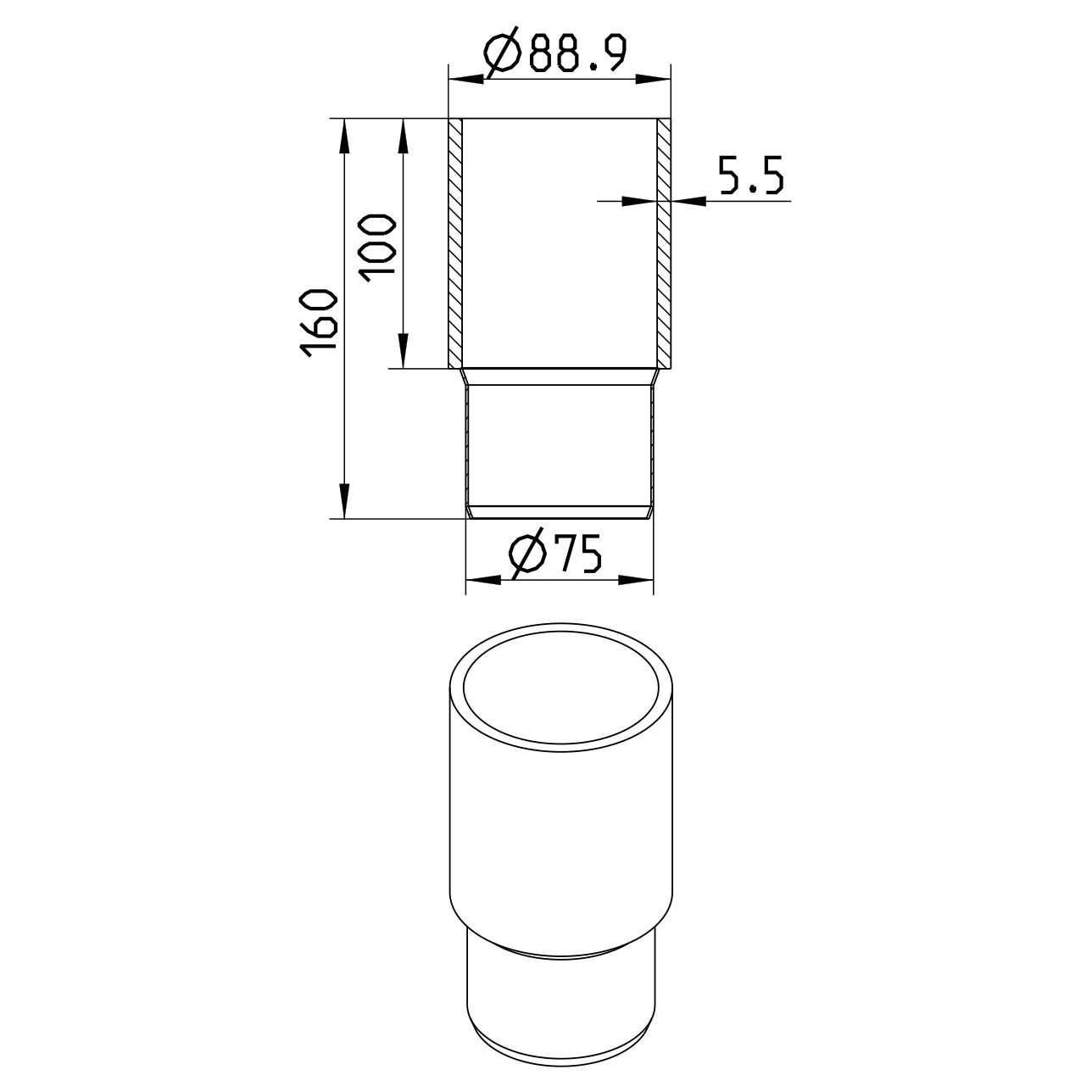

PENETRATION WITH SPIGOT
-Welding transition: Ø88.9mm
-Diameter: Ø75mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 160 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 1,25 |
| Weight (lbs) | 2,76 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7, Penetrations with SI sealing Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Lloyds Register LR22419510TA_02
