PENETRATION WITH SOCKET - (875.168.160 S)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 875.168.160 S
EAN no.: 5705499139921
LVI no.: 0254469

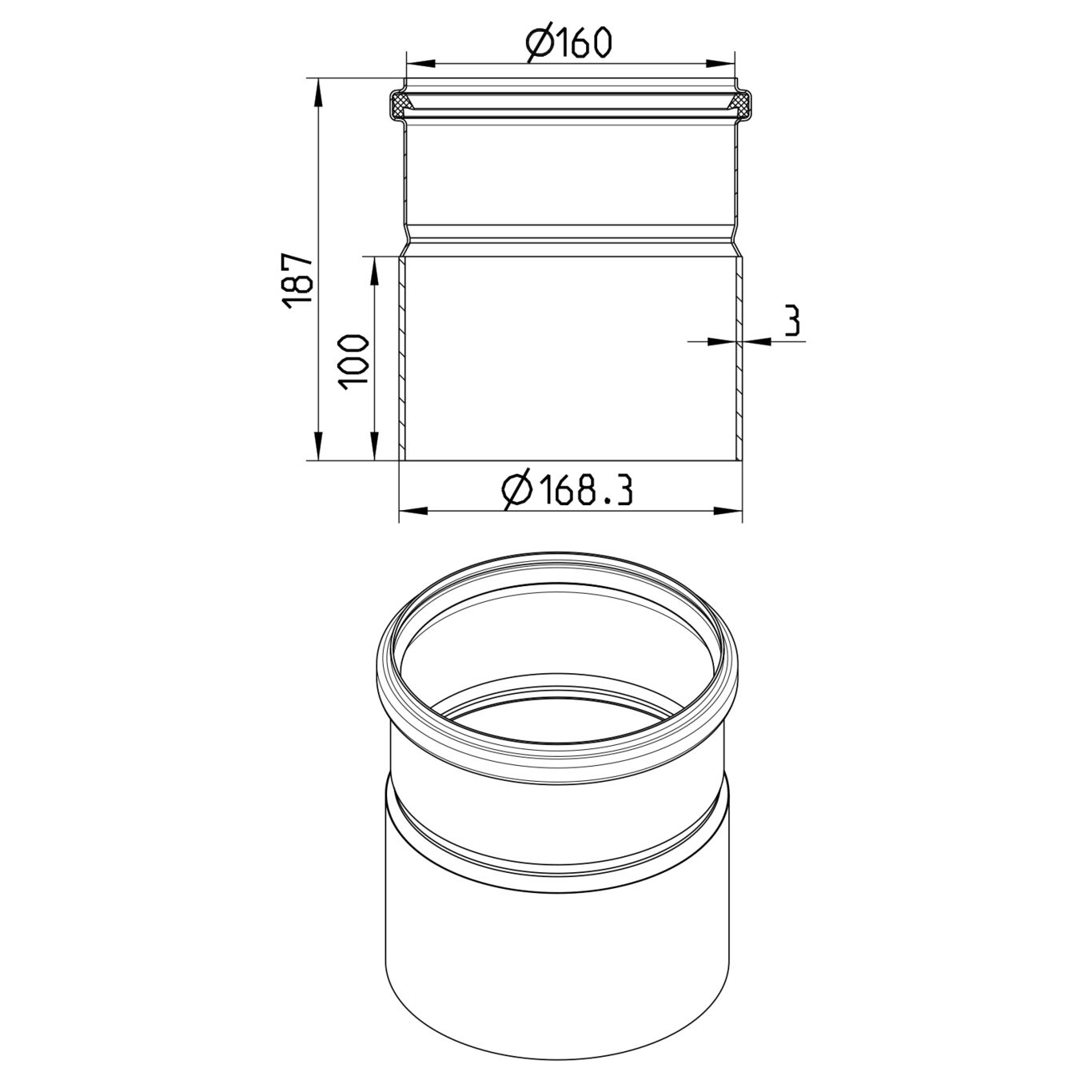

PENETRATION WITH SOCKET
-Welding transition: Ø168.3mm
-Diameter: Ø160mm
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 188 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,78 |
| Weight (lbs) | 3,92 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
