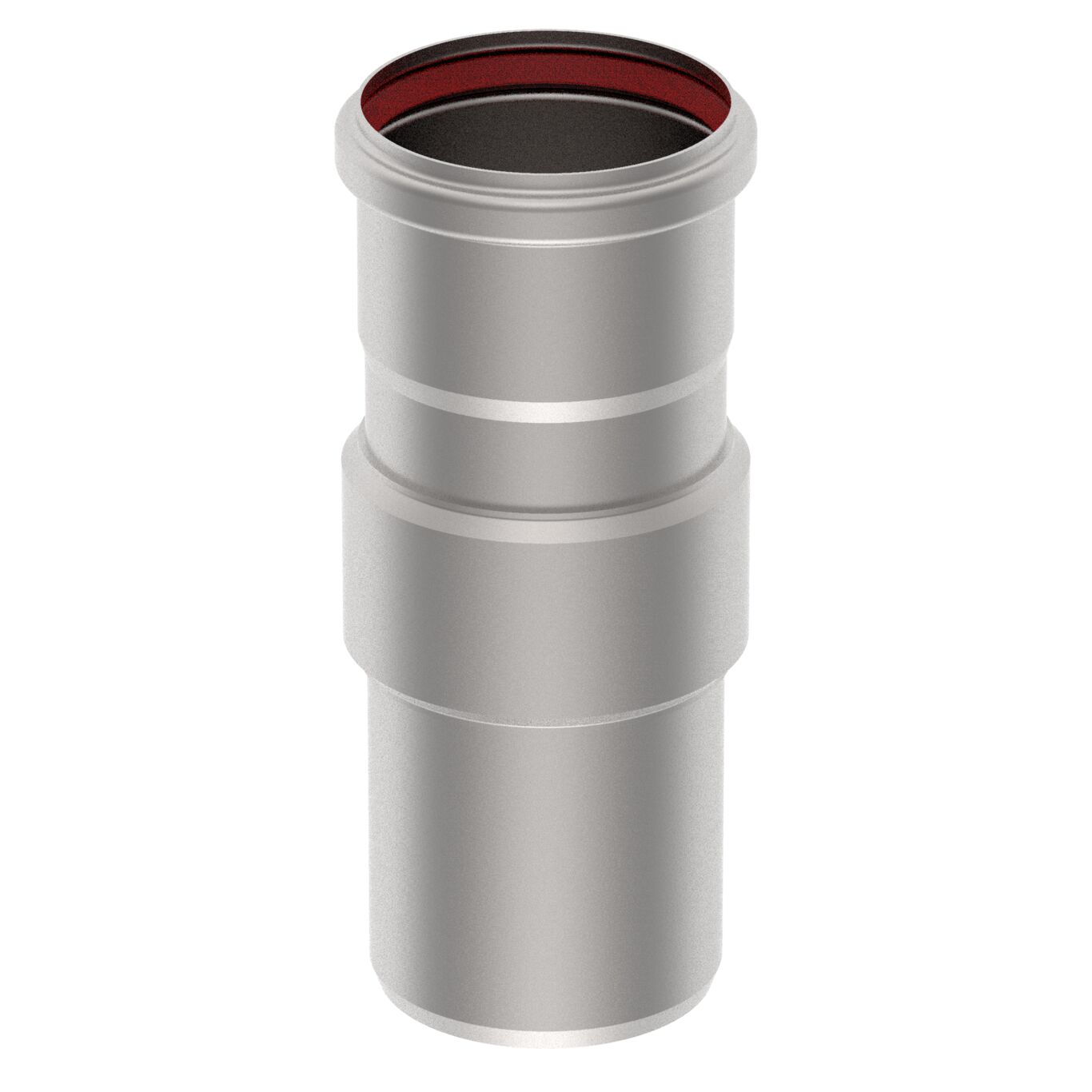

PENETRATION WITH SLEEVE - (866.015.075.05FS)
×
![]()
Part Of the Series: Penetration-welding sleeve-steel
Type no.: 866.015.075.05FS
EAN no.: 5705499140675
NRF no.: 2172738

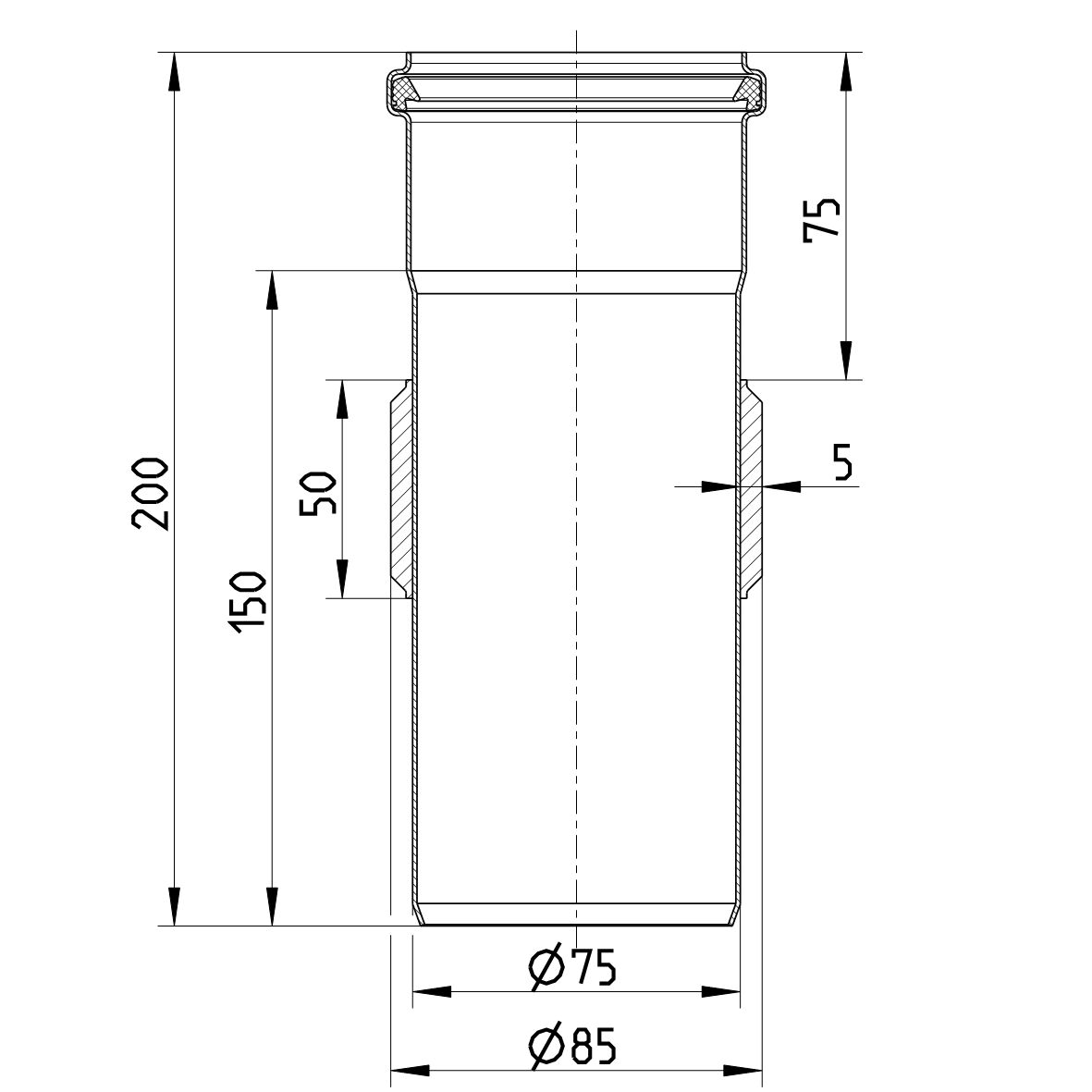

PENETRATION WITH SLEEVE
-With SI sealing
-Diameter: Ø75mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 150 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,85 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
DNV - MEDB000016W, Rev7, Penetrations with SI sealing KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings ClassNK - Type866, TA21159E(N)_21FPA11DA MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22
