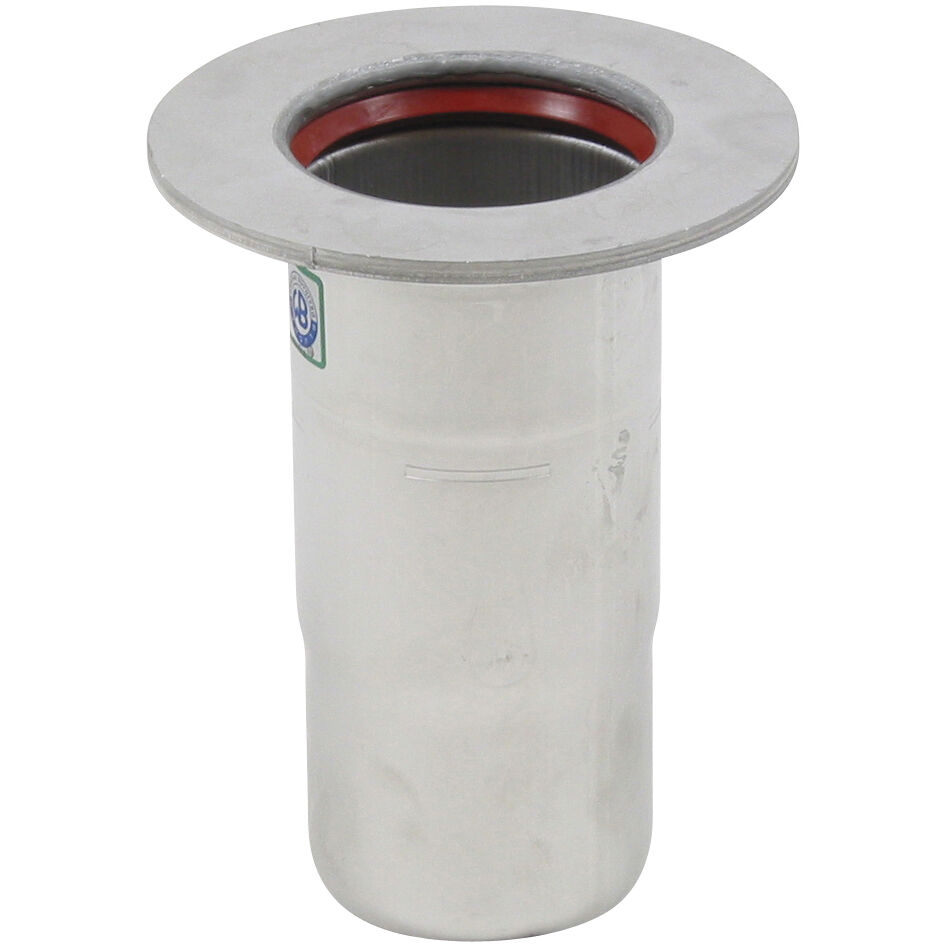

PENETRATION WITH FLANGE - (868.115.075FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.115.075FS
EAN no.: 5705499411218
NRF no.: 2172784

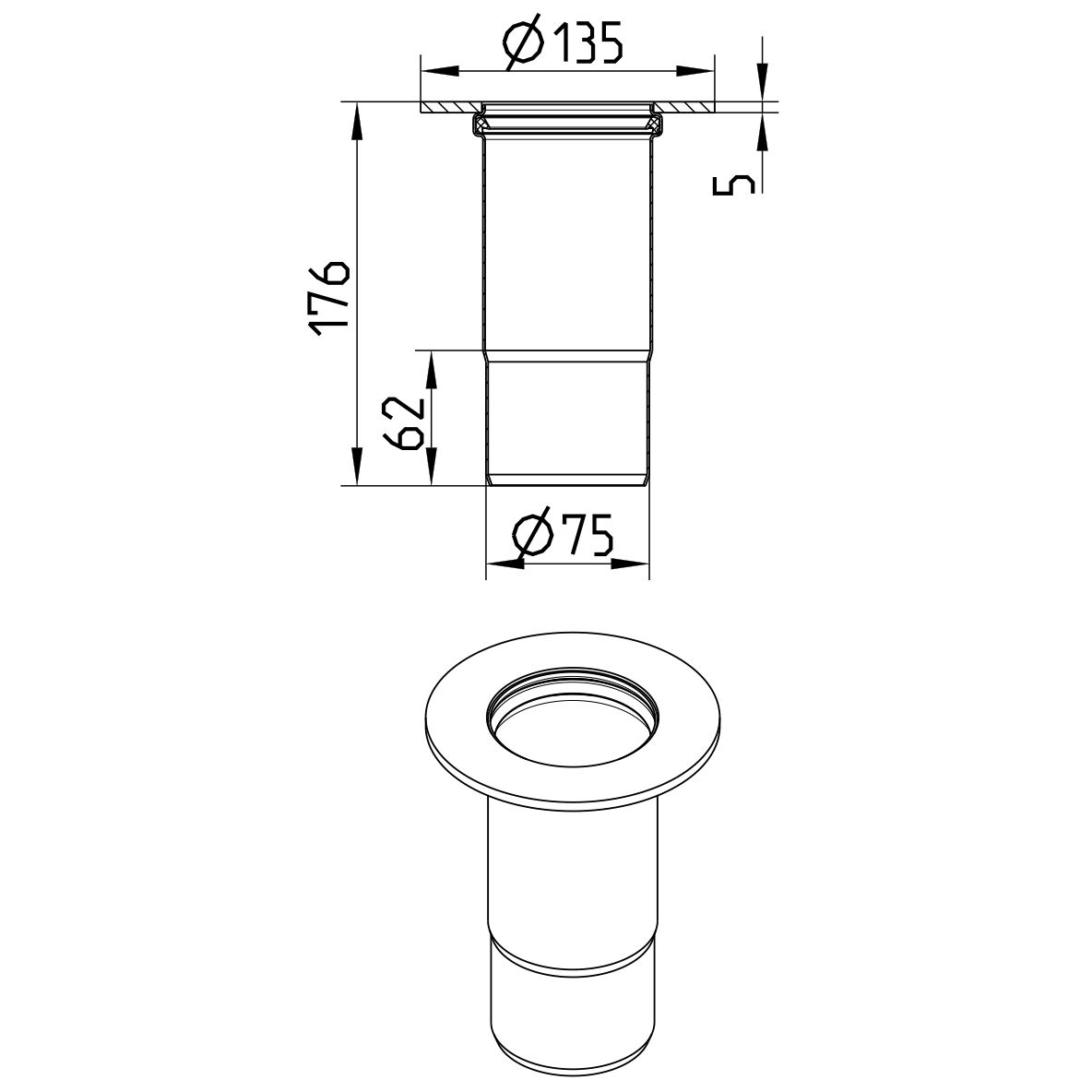

PENETRATION WITH FLANGE
-Diameter: Ø75mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 62 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 176 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,70 |
| Weight (lbs) | 1,54 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
DNV - MEDB000016W, Rev7, Penetrations with SI sealing DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA ClassNK - Type868, TA21160E(N)_21FPA12DA KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA_02 RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22
