PENETRATION WITH FLANGE - (868.000.040FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.000.040FS
EAN no.: 5705499140798

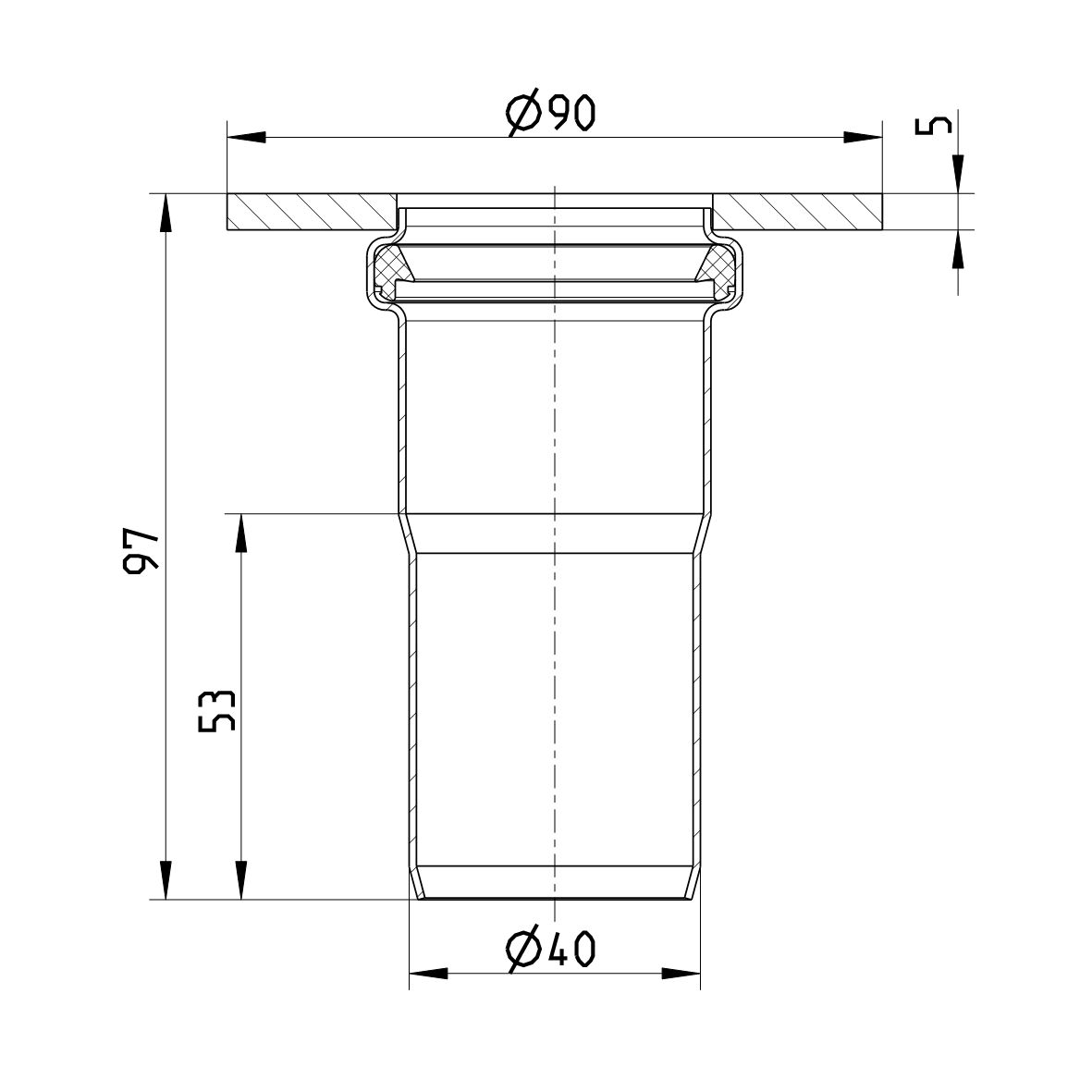

PENETRATION WITH FLANGE
-With SI sealing
-Diameter: Ø40mm
-Deck: Steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 53 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 97 |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB000016W, Rev7, Penetrations with SI sealing
HACCP Food Safety Programme - Australasia
