TOILET PENETRATION WITH SLEEVE - (867.020.050.10)
×
![]()
Part Of the Series: Penetration-Spigot
Type no.: 867.020.050.10
EAN no.: 5705499410532
NRF no.: 2170338

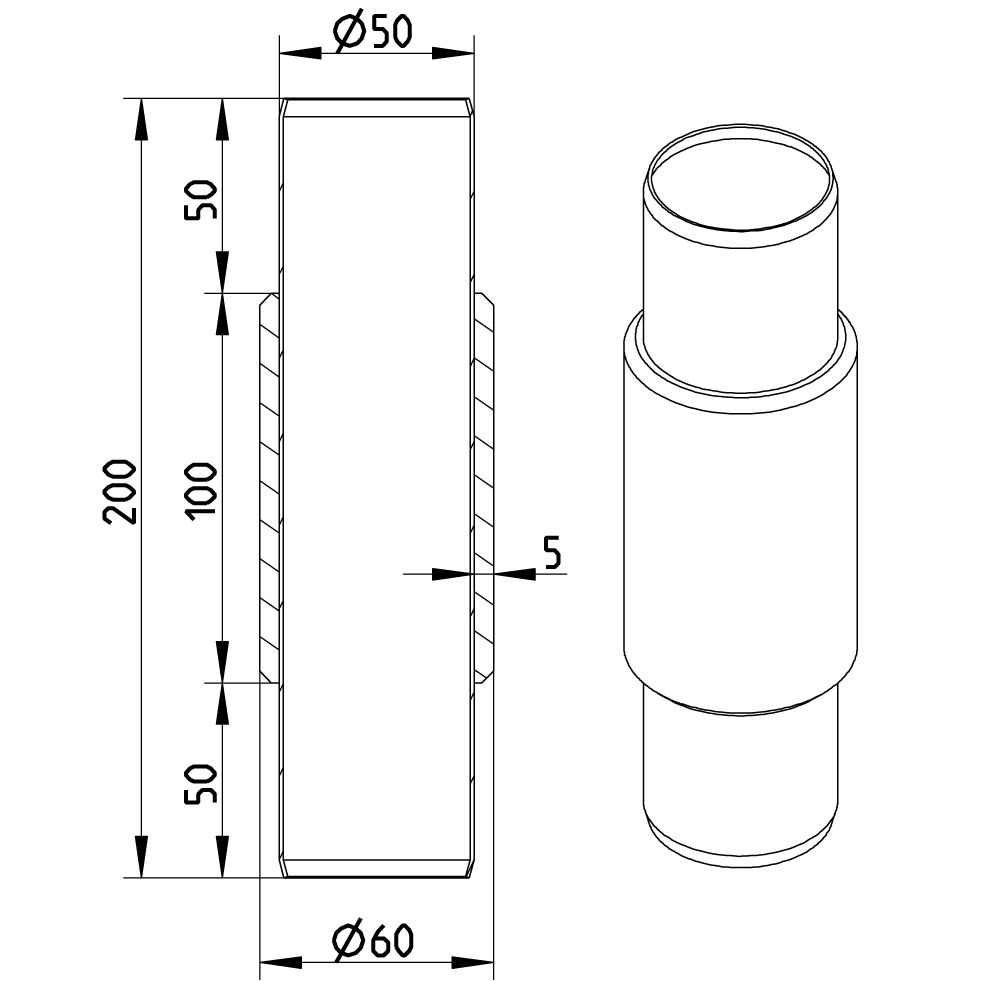

TOILET PENETRATION WITH SLEEVE
-Diameter: Ø50mm
-For vacuum system
-Deck: steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 200 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,89 |
| Weight (lbs) | 1,98 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
