TOILET PENETRATION WITH SLEEVE - (867.020.040.10 S)
×
![]()
Part Of the Series: Penetration-Spigot
Type no.: 867.020.040.10 S
EAN no.: 5705499413274
NRF no.: 2172777

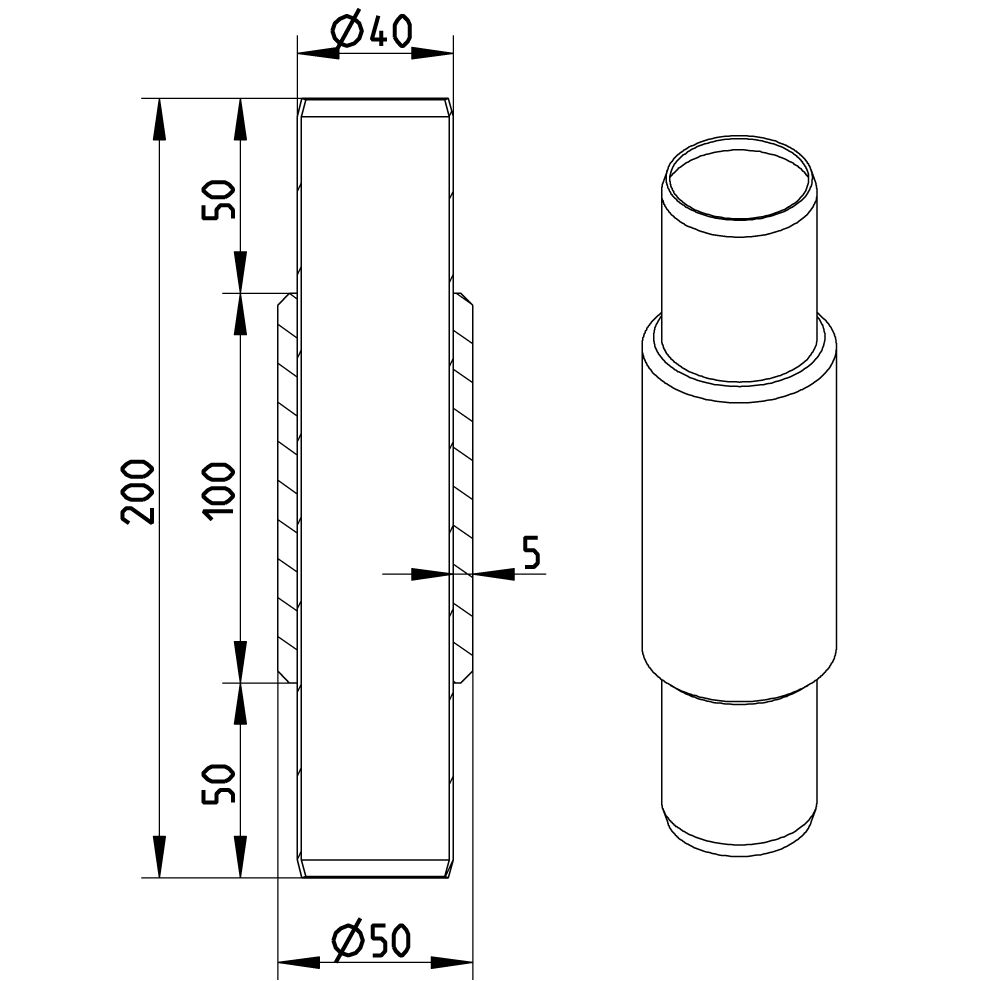

TOILET PENETRATION WITH SLEEVE
-Diameter: Ø40mm
-For vacuum system
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 200 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 0,74 |
| Weight (lbs) | 1,98 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
