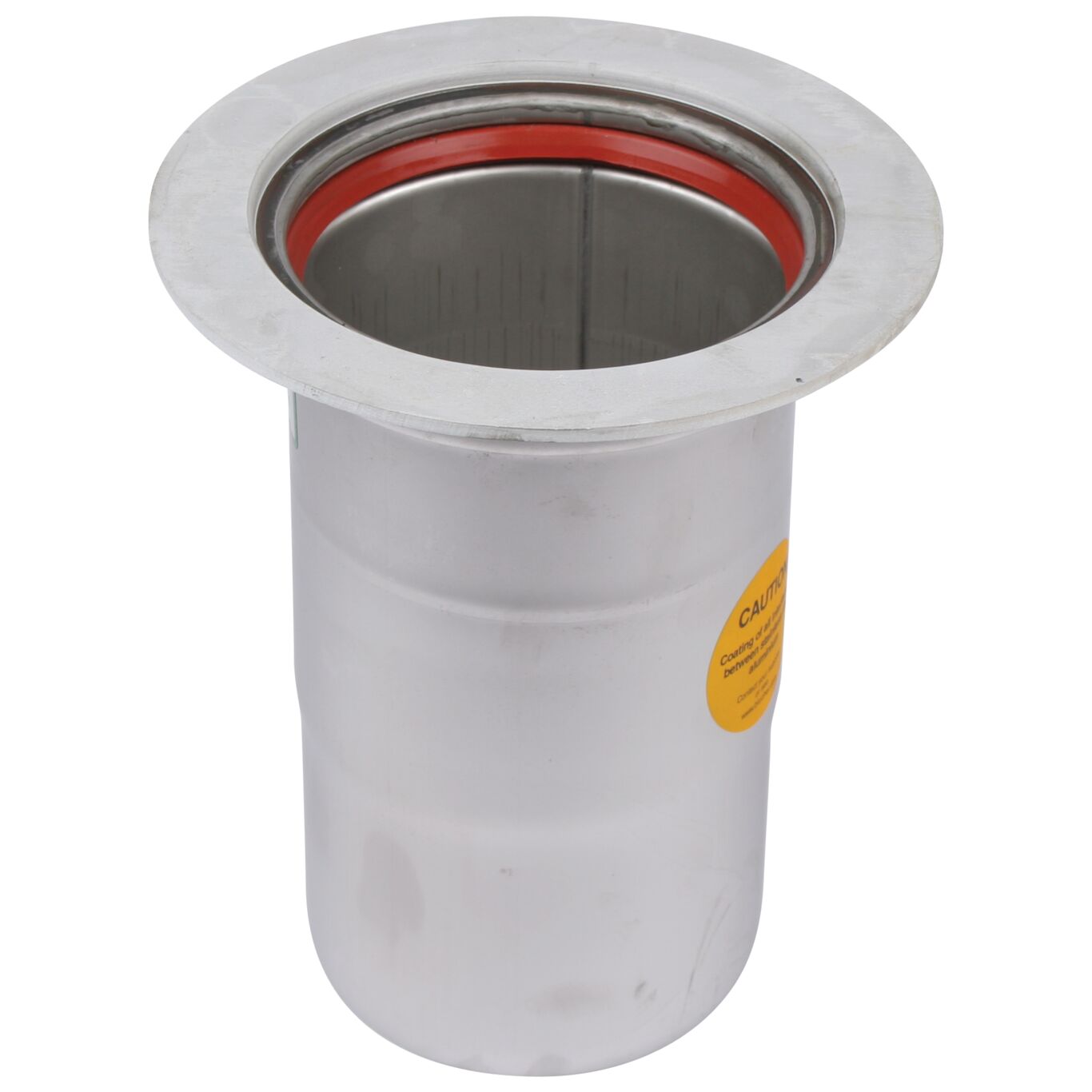

PENETRATION WITH BIMETAL FLANGE - (878.125.110FS)
×
![]()
Part Of the Series: Penetration-bimetal flange-aluminium
Type no.: 878.125.110FS
EAN no.: 5705499121834
NRF no.: 2172817
PENETRATION WITH BIMETAL FLANGE

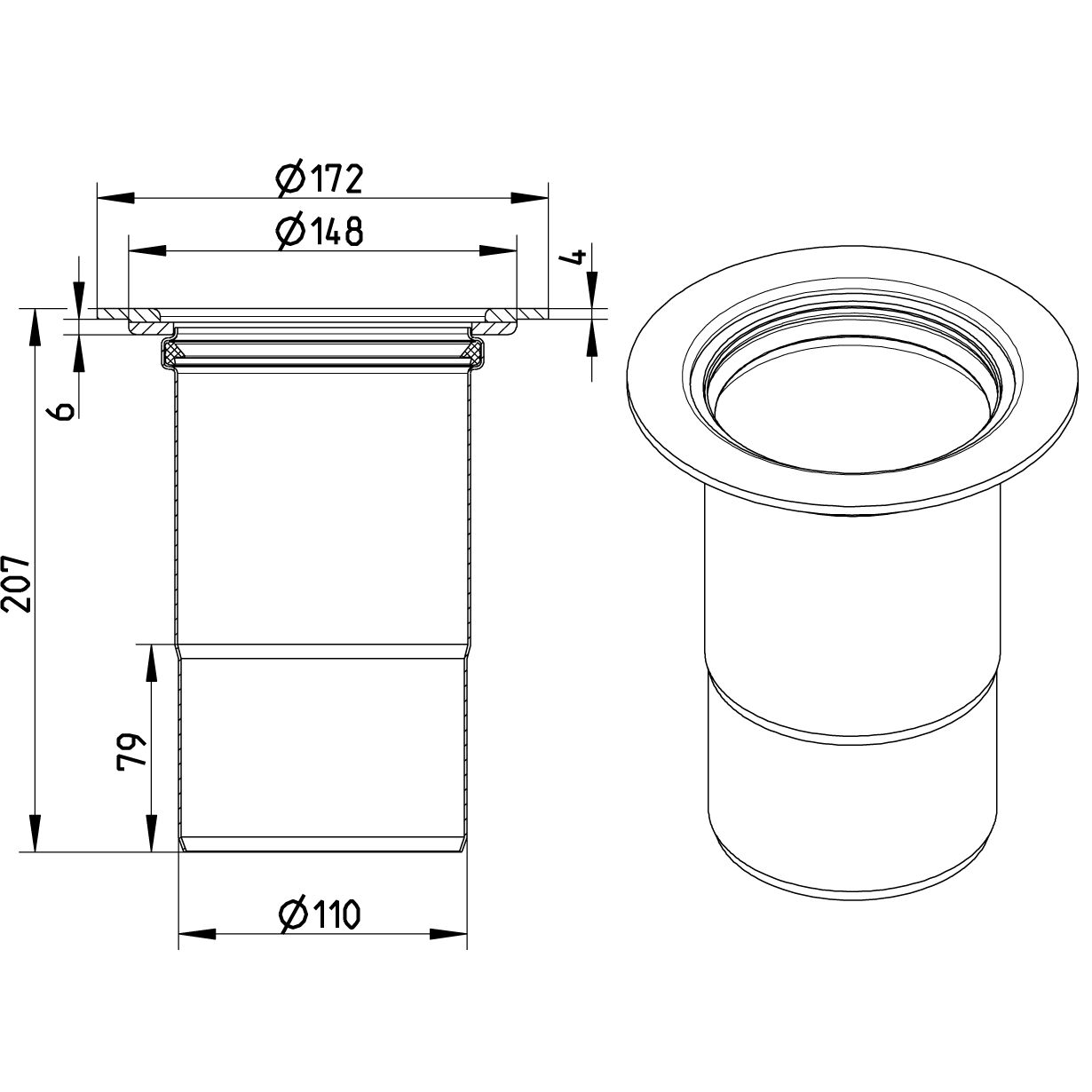

-Diameter: Ø110mm
-With SI sealing
-Deck: aluminium
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 79 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 207 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,27 |
| Weight (lbs) | 2,8 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
