PENETRATION WITH BIMETAL FLANGE - (878.115.075FS)
×
![]()
Part Of the Series: Penetration-bimetal flange-aluminium
Type no.: 878.115.075FS
EAN no.: 5705499121810
NRF no.: 2172815

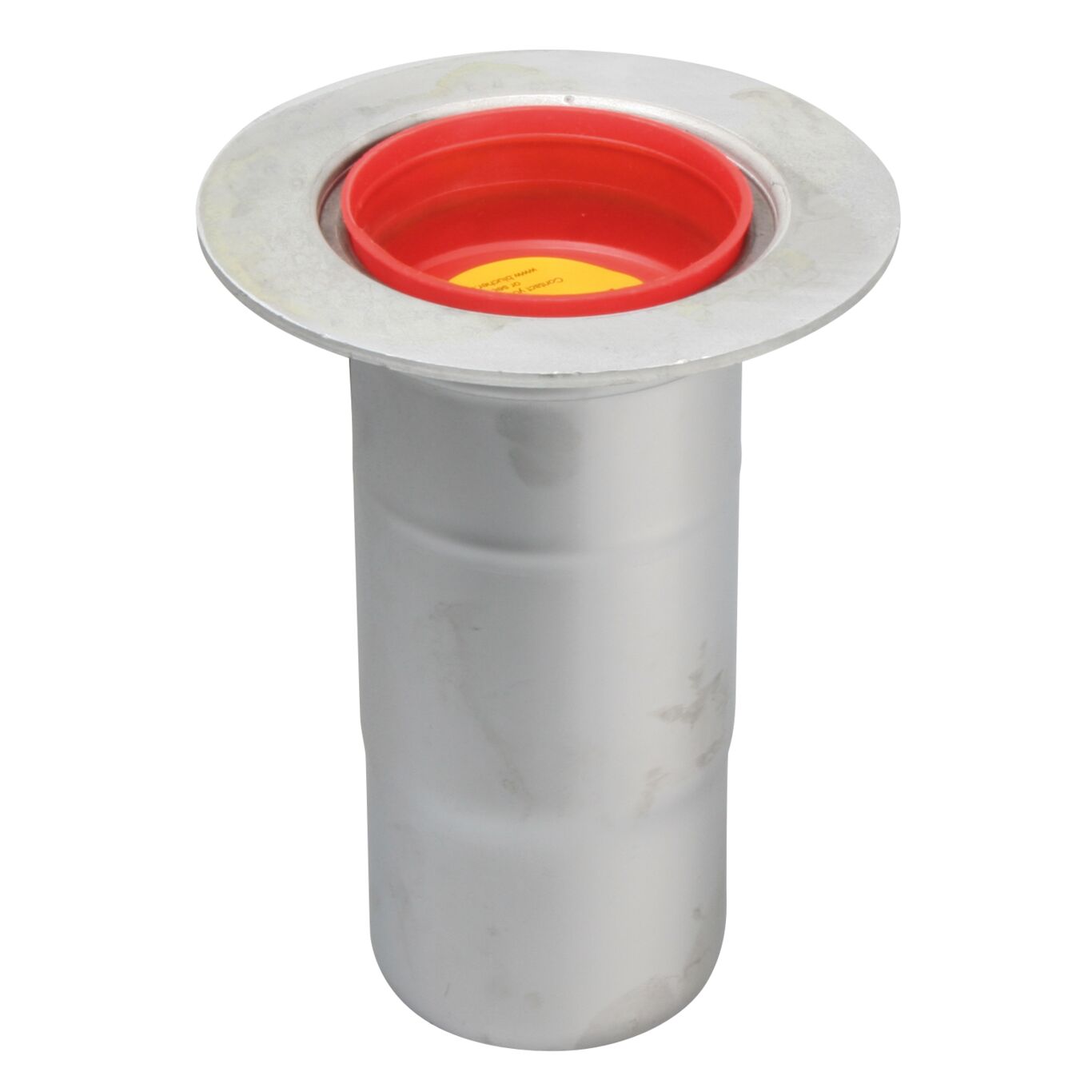

PENETRATION WITH BIMETAL FLANGE
-Diameter: Ø75mm
-With SI sealing
-Deck: aluminium
-Stainless steel: AISI316L/EN1.4404

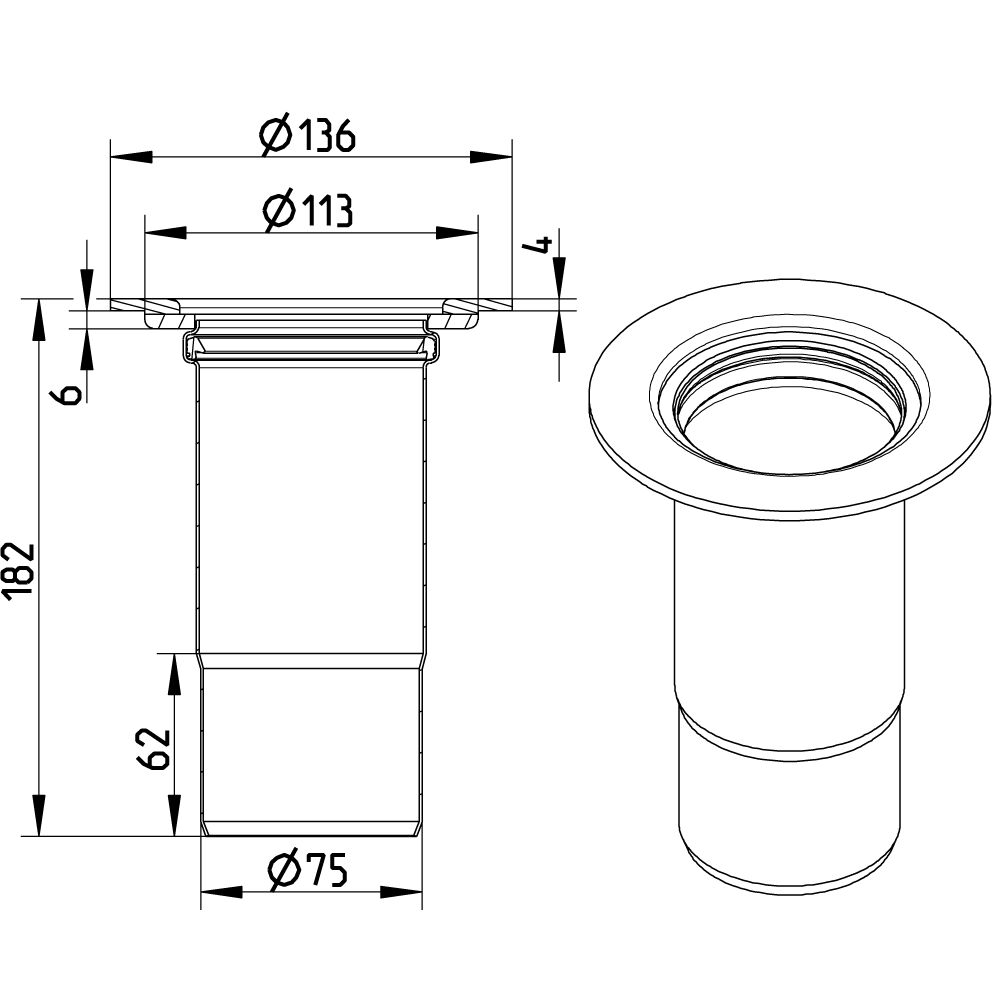

| Product Specification | |
|---|---|
| Deck | Aluminium |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 62 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 182 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,86 |
| Weight (lbs) | 1,9 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
