P-TRAP 87,5° - (525.090.125 S)
×
![]()
Part Of the Series: Water trap-p
Type no.: 525.090.125 S
EAN no.: 5705499117974
VVS no.: 160381425

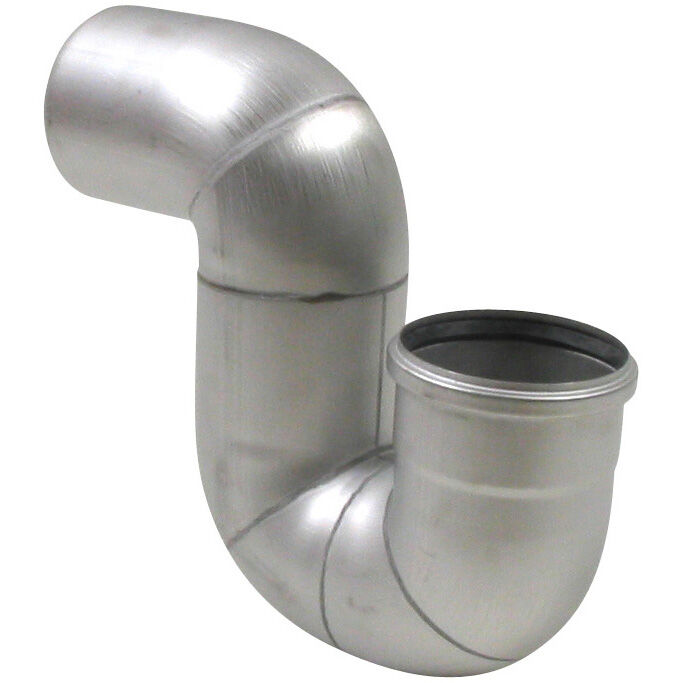

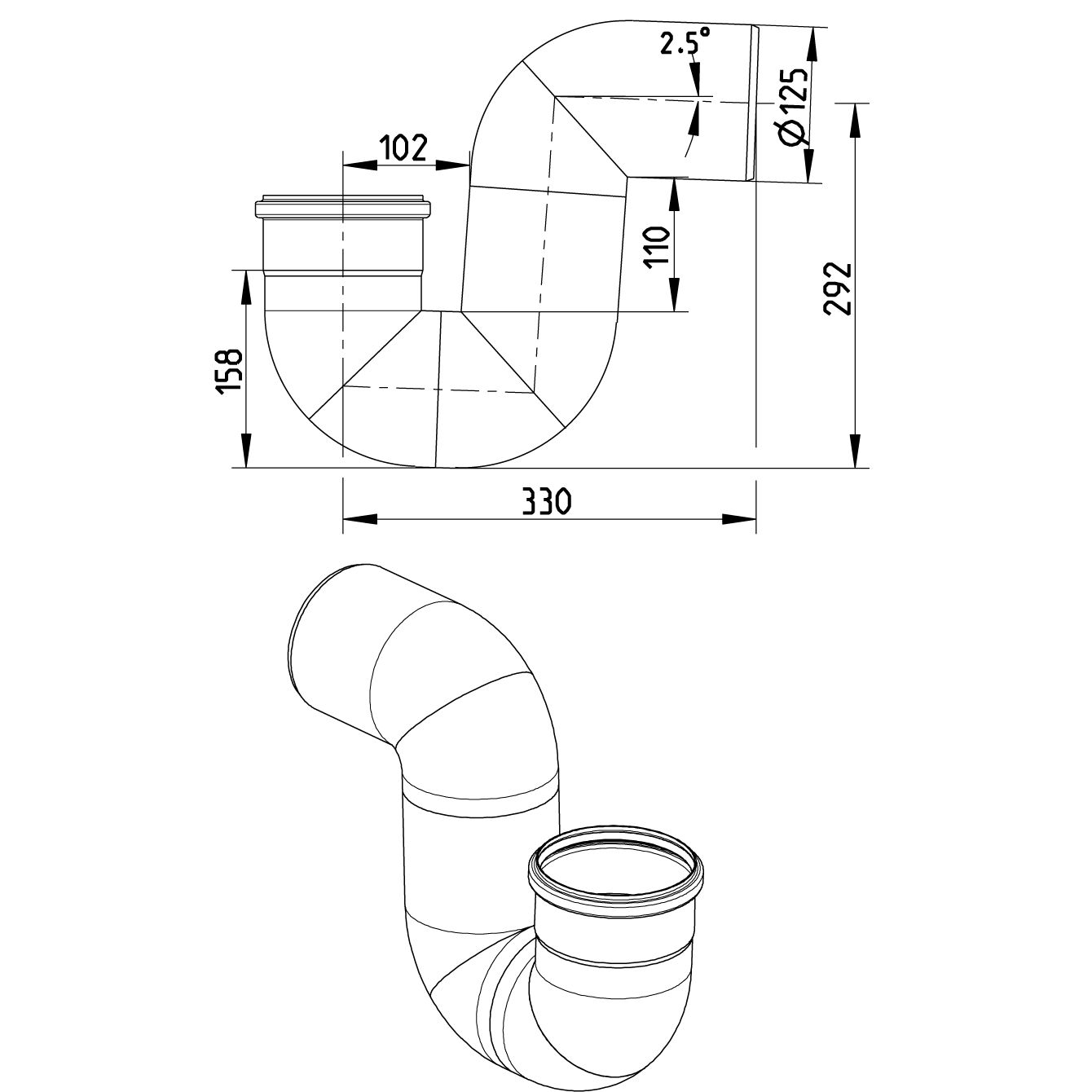

P-TRAP 87,5°
-Diameter: Ø125mm
-Water seal height = 110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 158 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 15.0 |
| Minimum Flow (l/s) | 4.4 |
| Outlet dia. (Inch) | 5 |
| Outlet Diameter (mm) | 125 |
| Water Seal Height (mm) | 110 |
| Weight (kg) | 1,88 |
| Weight (lbs) | 4,14 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK VA 2.41/19631 P-Vandlås dim 50, 75, 110, 125, 160mm
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 Bureau Veritas - 03456-H0, ShipDrains MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001
