MOUNTING SET TRIO COPENHAGEN - (620.270.002)
×
![]()
Part Of the Series: MULTI top-Triangular
Type no.: 620.270.002
EAN no.: 5705499121490
RSK no.: 7122041

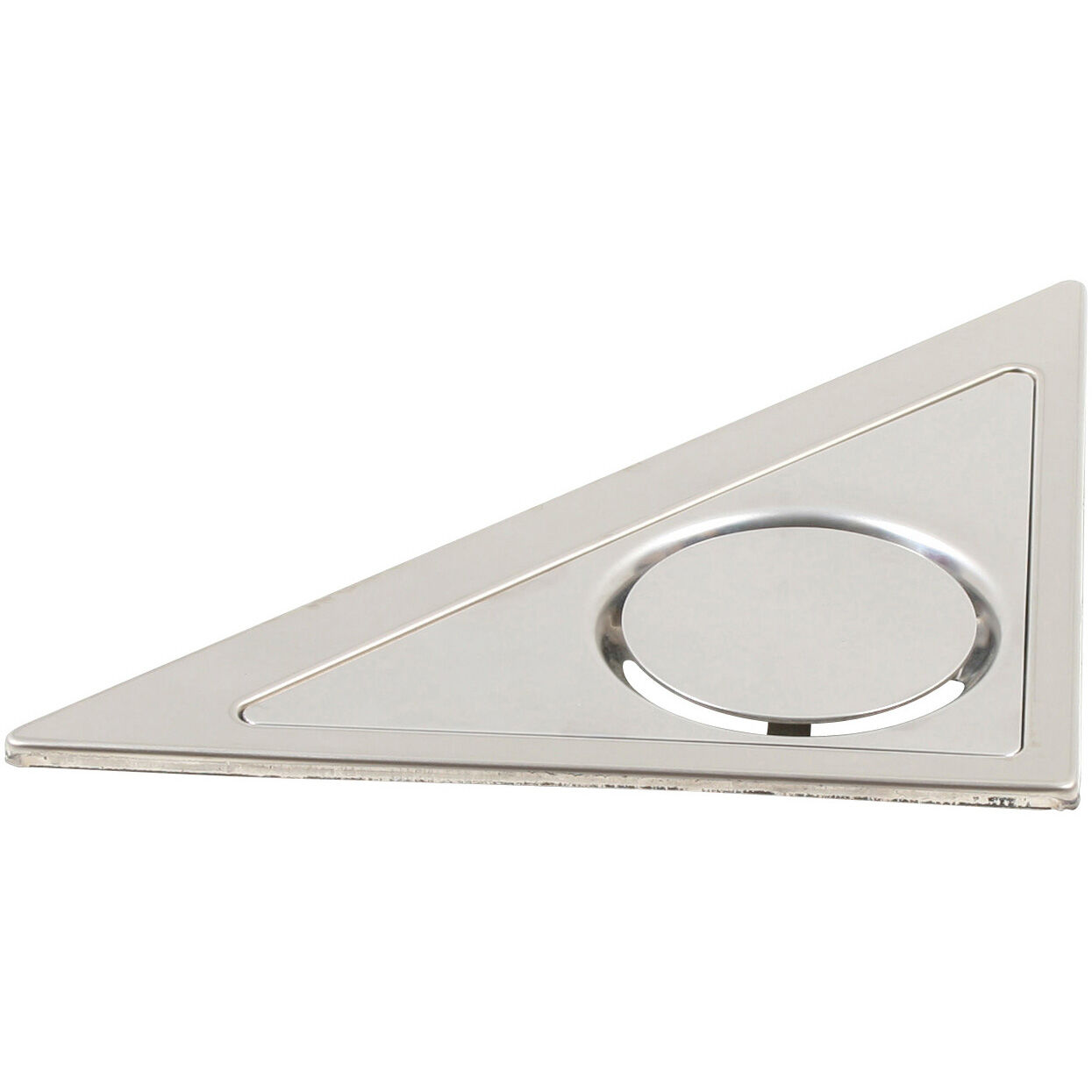

MOUNTING SET TRIO COPENHAGEN
-With clamping ring, for installation along wall
-Floor: concrete and tiled
-Frame: triangular
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Installation | Along wall |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |

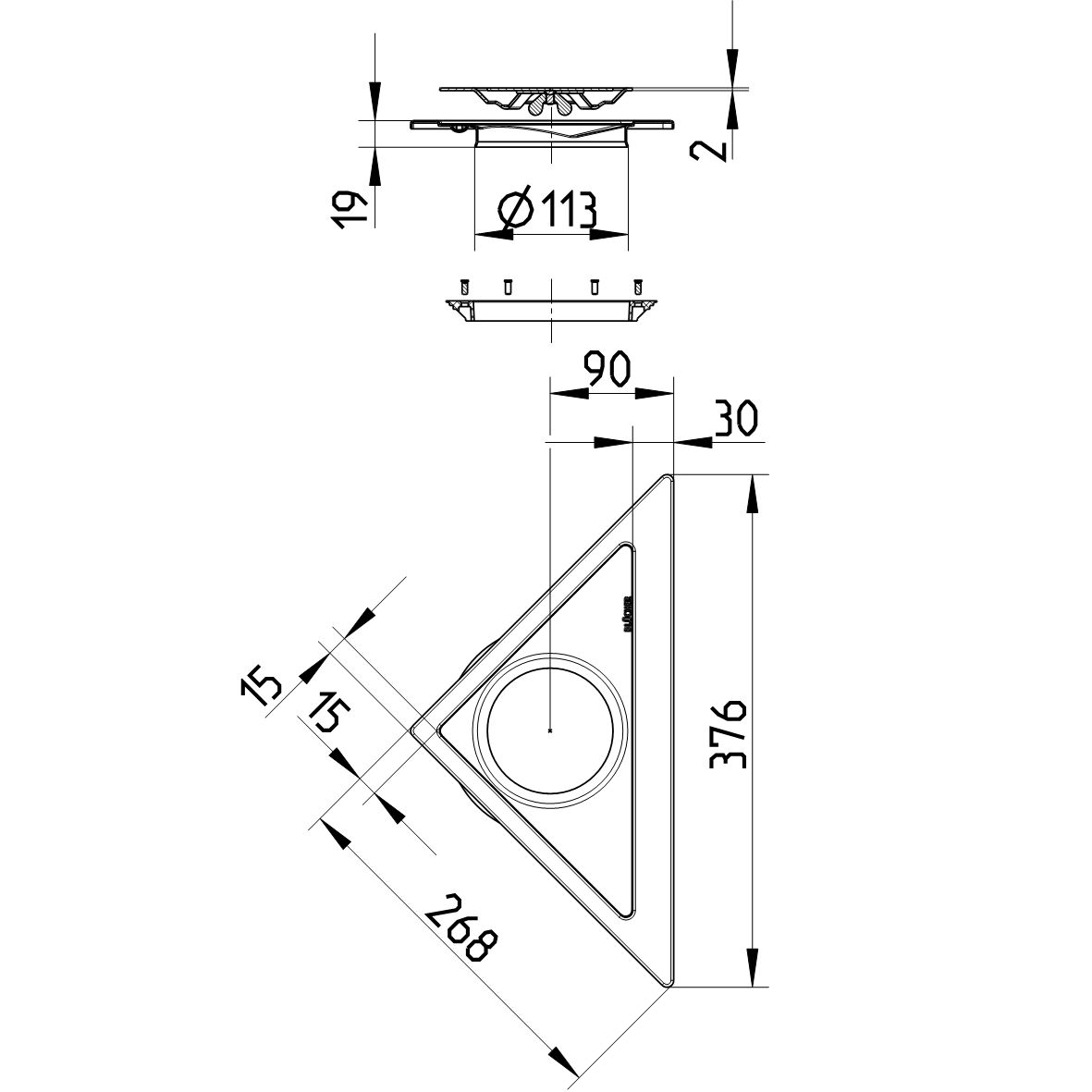

| Minimum Height (mm) | 19 |
| Number of Screws | 0 |
| Outlet dia. (Inch) | 4 |
| Shape | Triangular |
| Weight (kg) | 0,80 |
| Weight (lbs) | 1,76 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
