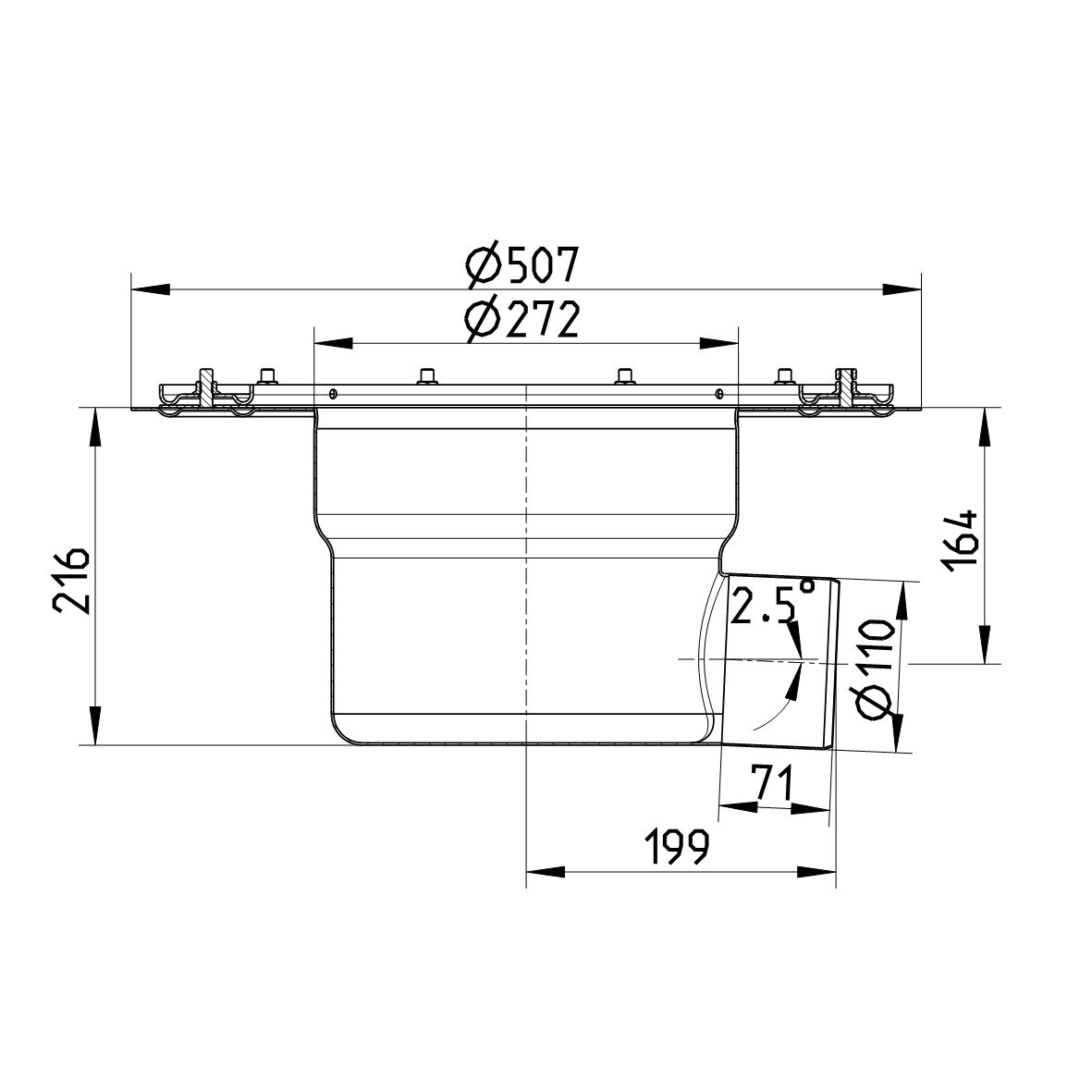

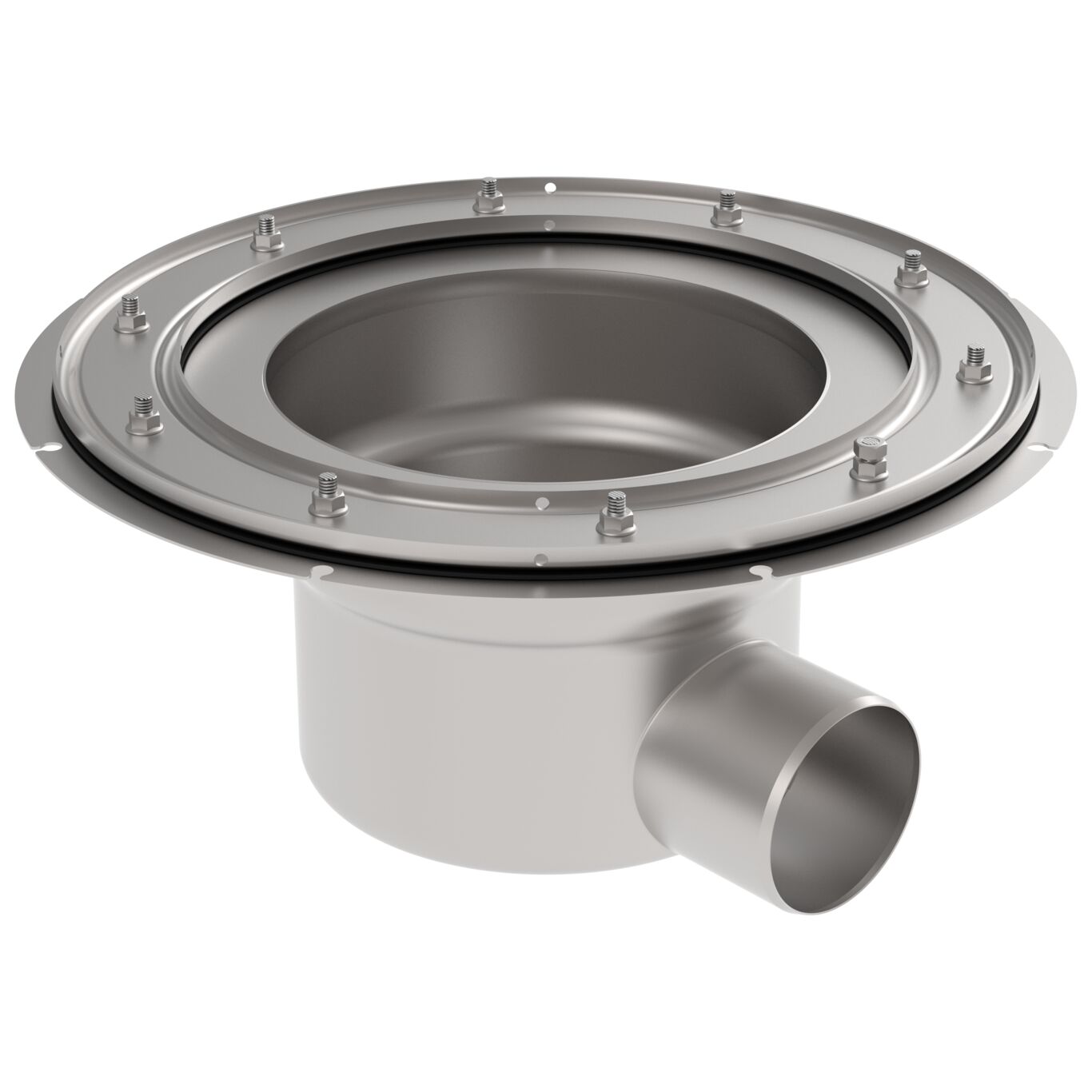

LOWER PART - (771.003.110)
×
![]()
Part Of the Series: Lower part-250
Type no.: 771.003.110
EAN no.: 5705499111262
NRF no.: 3396336
LVI no.: 3303785
LOWER PART
-Sheet membrane flange
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Sheet Membrane |
| Minimum Height (mm) | 216 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Weight (kg) | 8,36 |
| Weight (lbs) | 18,43 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
