LOWER PART - (763.003.110 S)
×
![]()
Part Of the Series: Lower part-250
Type no.: 763.003.110 S
EAN no.: 5705499109870
VVS no.: 153019316
LVI no.: 3303770

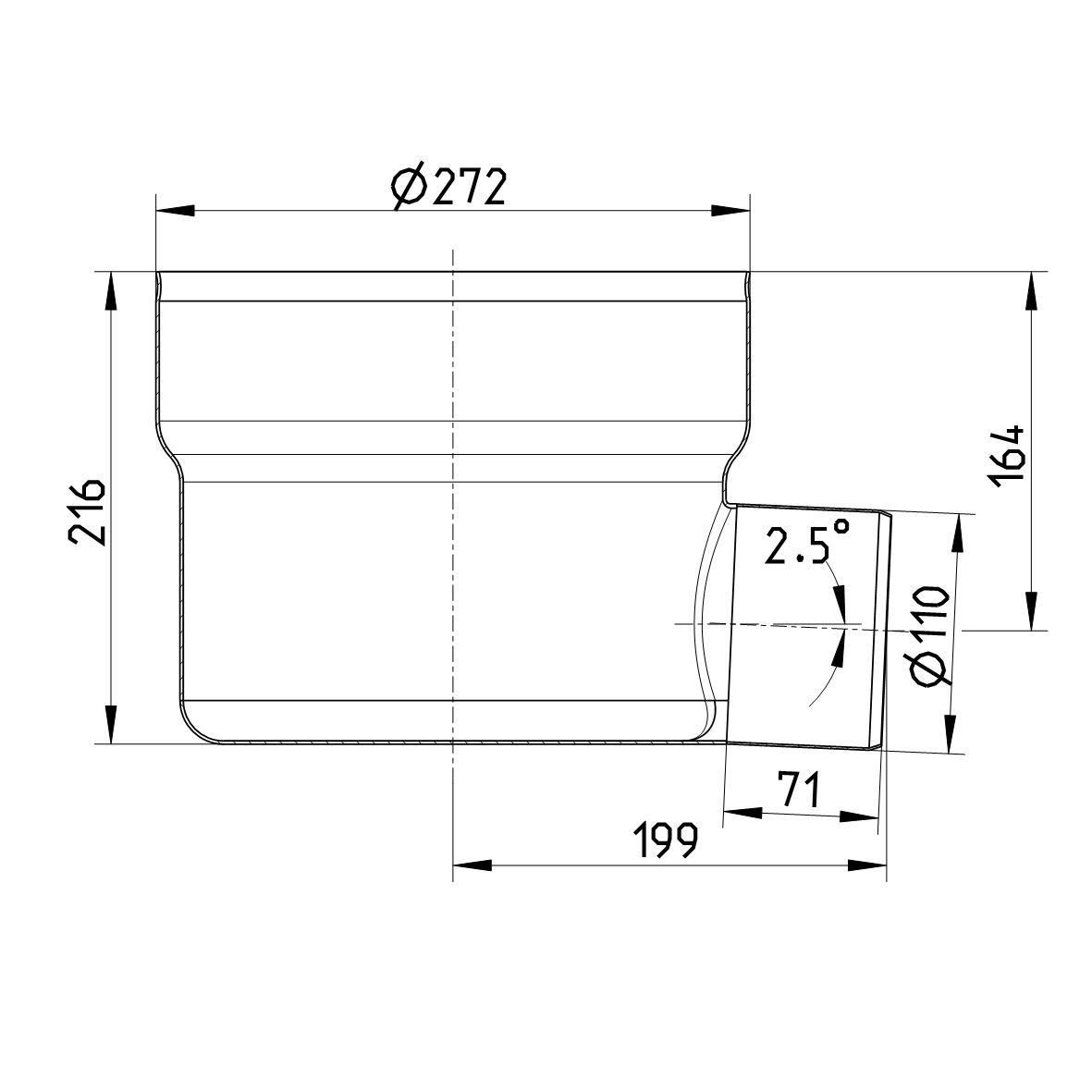

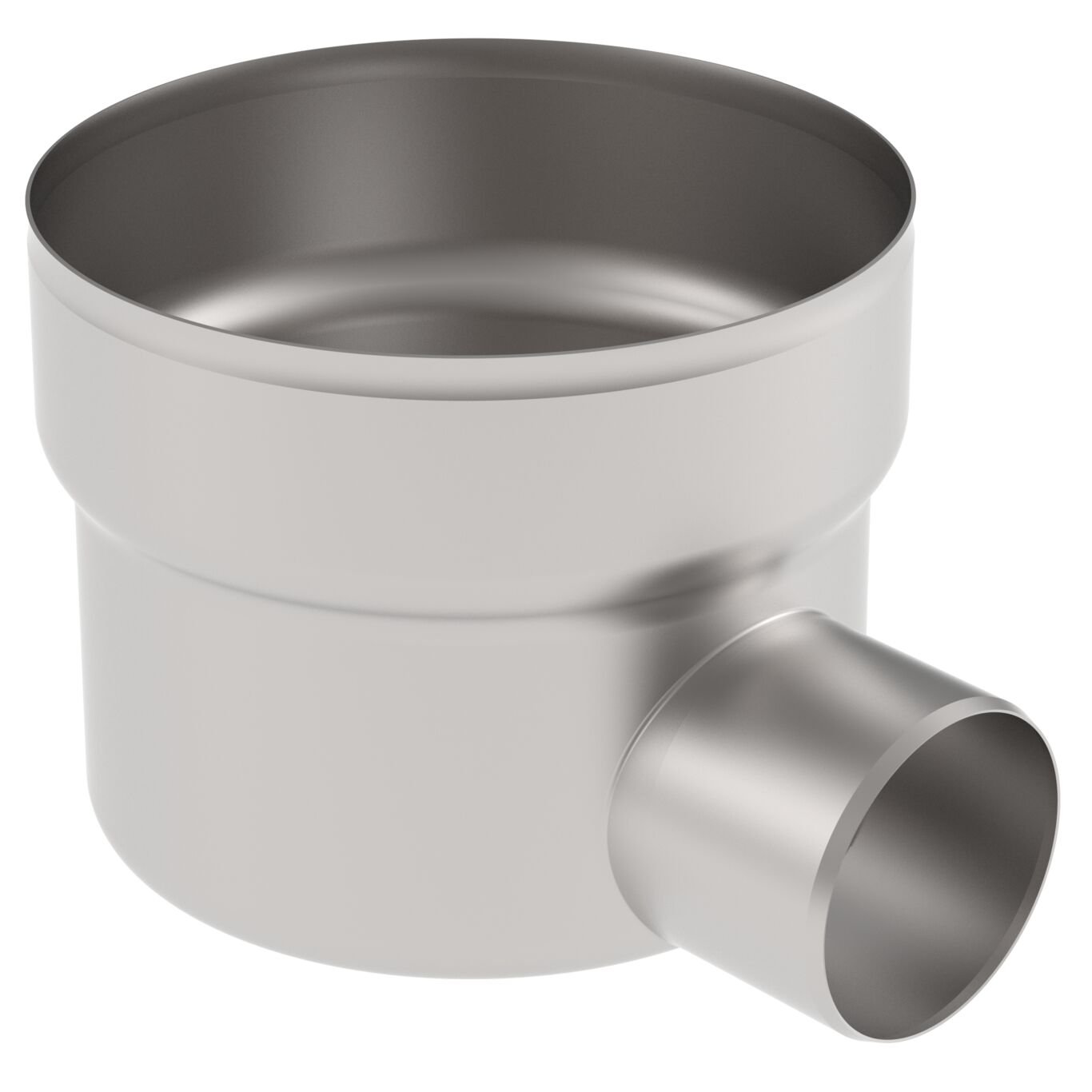

LOWER PART
-No membrane flange
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 216 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Weight (kg) | 4,10 |
| Weight (lbs) | 9,04 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
