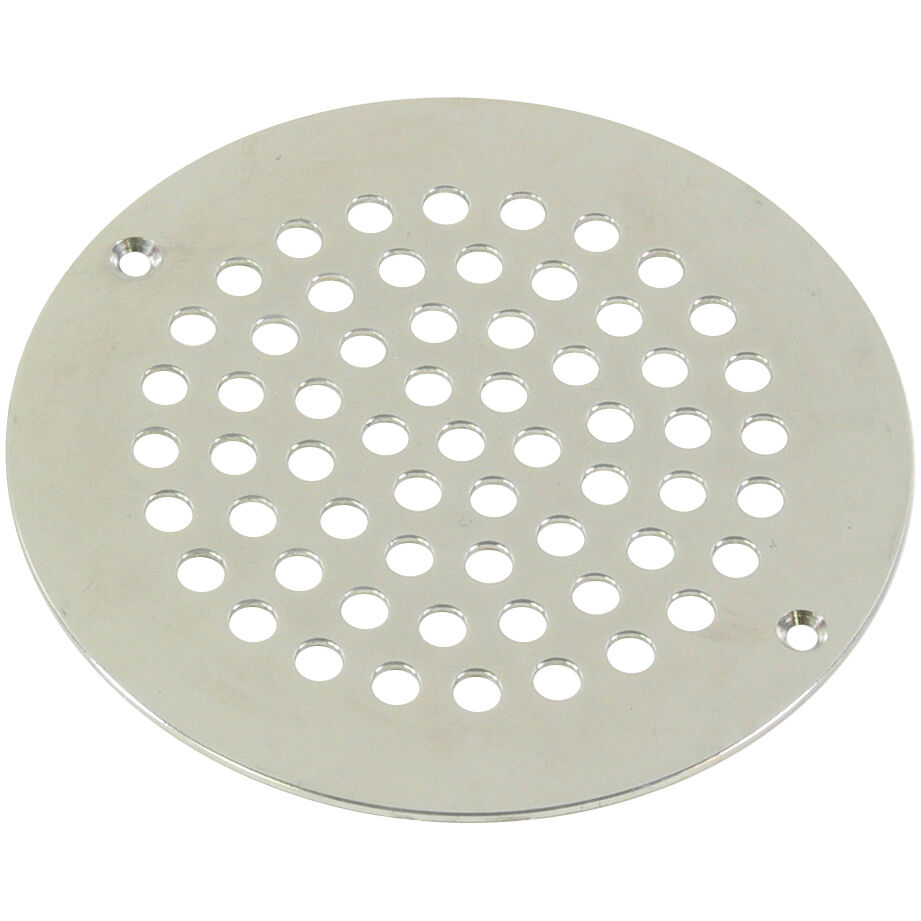

GRATING CIRCLE VIENNA RESIN - (620.155.041 S)
×
![]()
Part Of the Series: Grating-Upper part-180
Type no.: 620.155.041 S
EAN no.: 5705499106084
RSK no.: 7120194
LVI no.: 3304514
Size: Ø155
GRATING CIRCLE VIENNA RESIN
-With screw lock
-Grating: Ø155mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screws | 2 |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 0,45 |
| Weight (lbs) | 0,99 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
