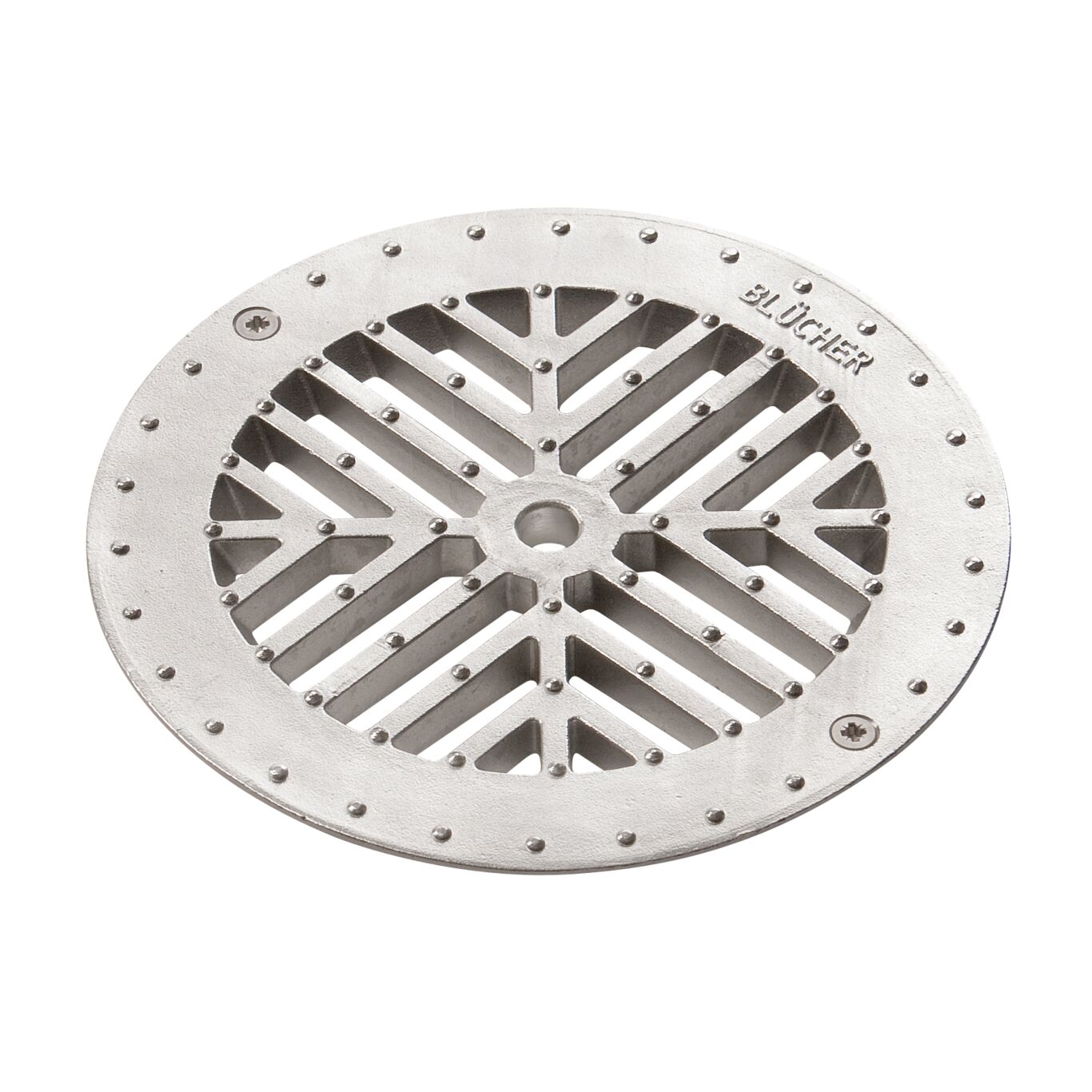

GRATING CIRCLE HYGIENIC-PRO - (620.155.501)
×
![]()
Part Of the Series: Grating-Upper part-180
Type no.: 620.155.501
EAN no.: 5705499128413
RSK no.: 7122017
LVI no.: 3304163
Size: Ø155
GRATING CIRCLE HYGIENIC-PRO
-With screw lock
-Grating: Ø155mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (3000) |
| Load class EN1253(lbs) | L15 (6614) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 10 |
| Number of Screws | 2 |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 0,52 |
| Weight (lbs) | 1,15 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
