GRATING LINE VIENNA 300 - (697.003.030)
×
![]()
Part Of the Series: Grating-Shower channel
Type no.: 697.003.030
EAN no.: 5705499119206
VVS no.: 155072103
RSK no.: 7121722
NRF no.: 3394759
LVI no.: 3304423
Size: 50x300
GRATING LINE VIENNA 300

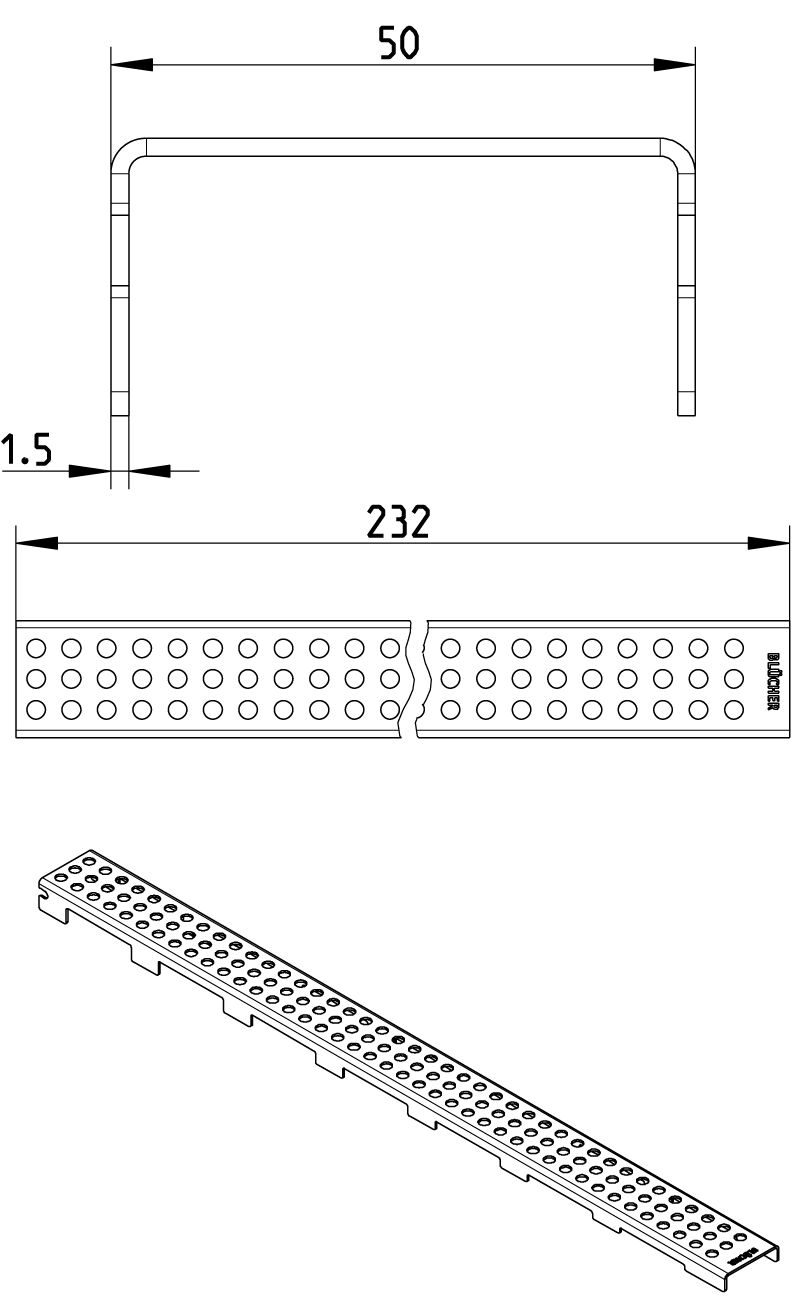

-Grating: 50x232mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.7 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 2x11¾ |
| Size (mm) | 50x300 |
| Weight (kg) | 0,17 |
| Weight (lbs) | 0,37 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
