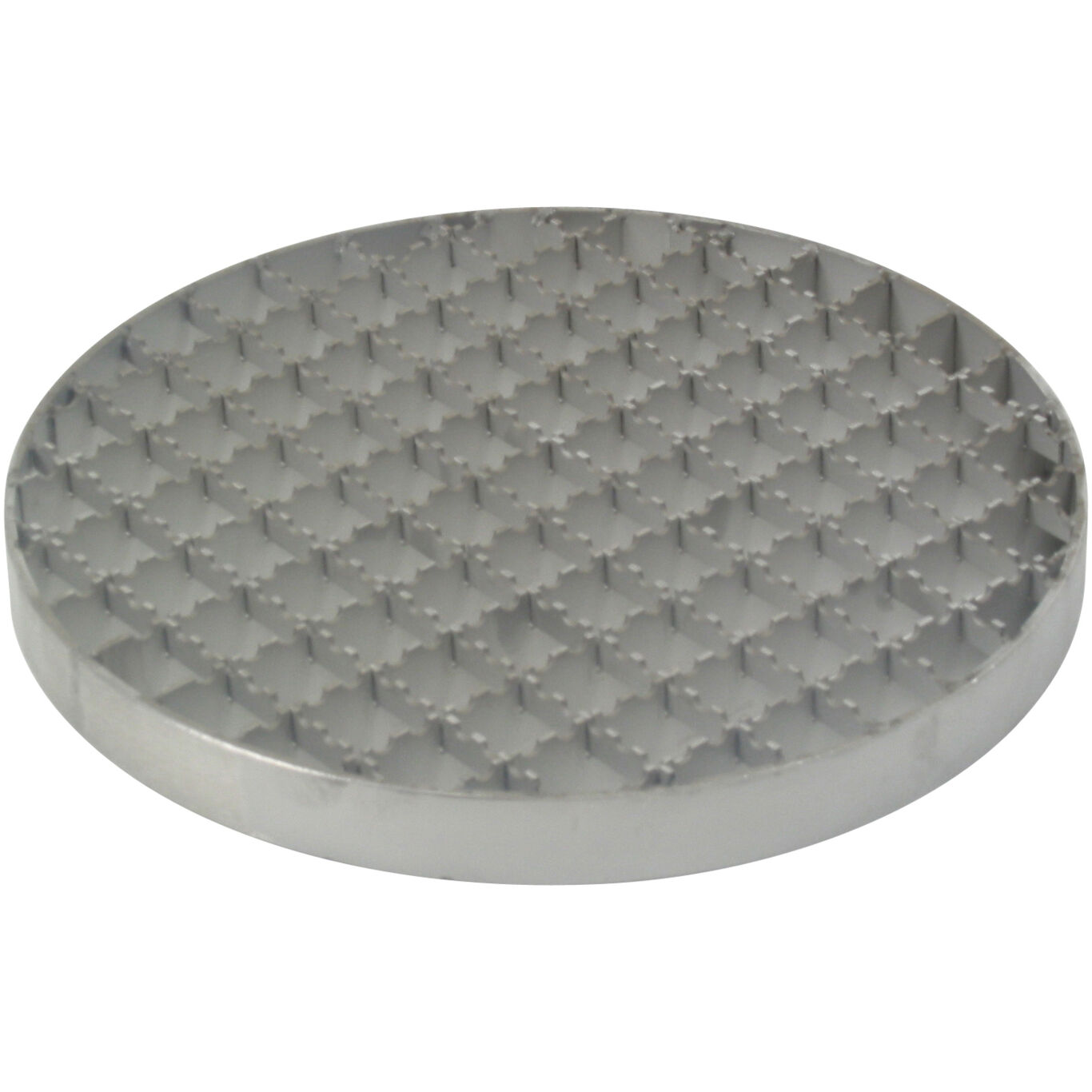

MESH GRATING CIRCLE - (790.273.000.22 S)
×
![]()
Part Of the Series: Grating-Drain-305-Vinyl-332
Type no.: 790.273.000.22 S
EAN no.: 5705499113808
VVS no.: 153559135
LVI no.: 3304059
Size: Ø295
MESH GRATING CIRCLE
-Grating: Ø273mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (2000) |
| Load class EN1253(lbs) | L15 (4409) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| Non-slip | R12 |
| Number of Screws | 0 |
| Shape | Round |
| Size (Inch) | Ø11⅝ |
| Size (mm) | Ø295 |
| Weight (kg) | 1,67 |
| Weight (lbs) | 2,16 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
