LADDER GRATING SQUARE - (790.268.001.25)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.001.25
EAN no.: 5705499113747
LVI no.: 3304090
Size: 300x300

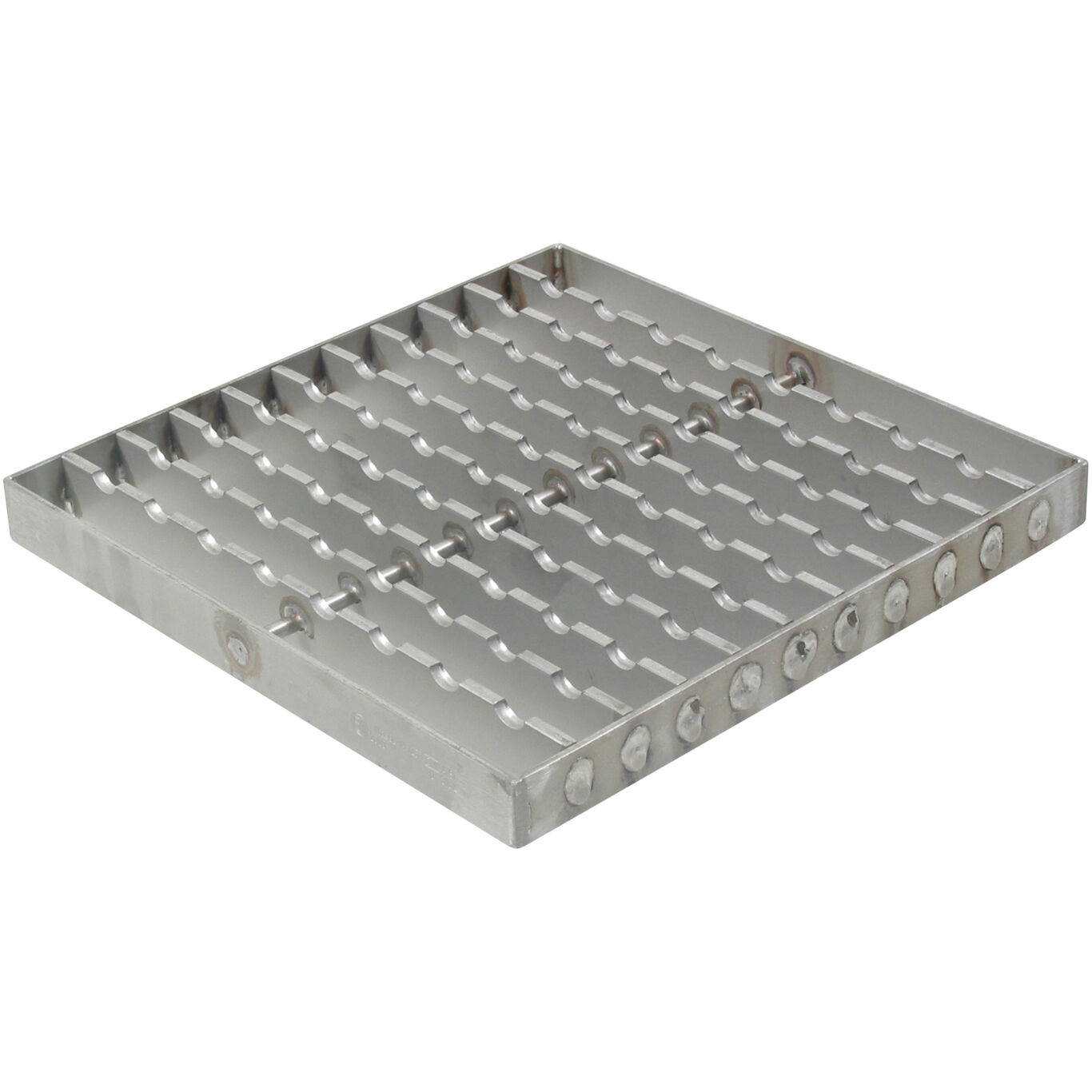

LADDER GRATING SQUARE
-With screw lock
-Grating: 268x268mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (10000) |
| Load class EN1253(lbs) | M125 (22046) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 40 |
| Non-slip | R11 |
| Number of Screws | 2 |
| Shape | Square |
| Size (Inch) | 11¾x11¾ |
| Size (mm) | 300x300 |
| Weight (kg) | 5,26 |
| Weight (lbs) | 11,6 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
