HYGIENICPRO GRATING SQUARE - (790.168.000.60 S)
×
![]()
Part Of the Series: Grating-Drain-200
Type no.: 790.168.000.60 S
EAN no.: 5705499138603
Size: 200x200

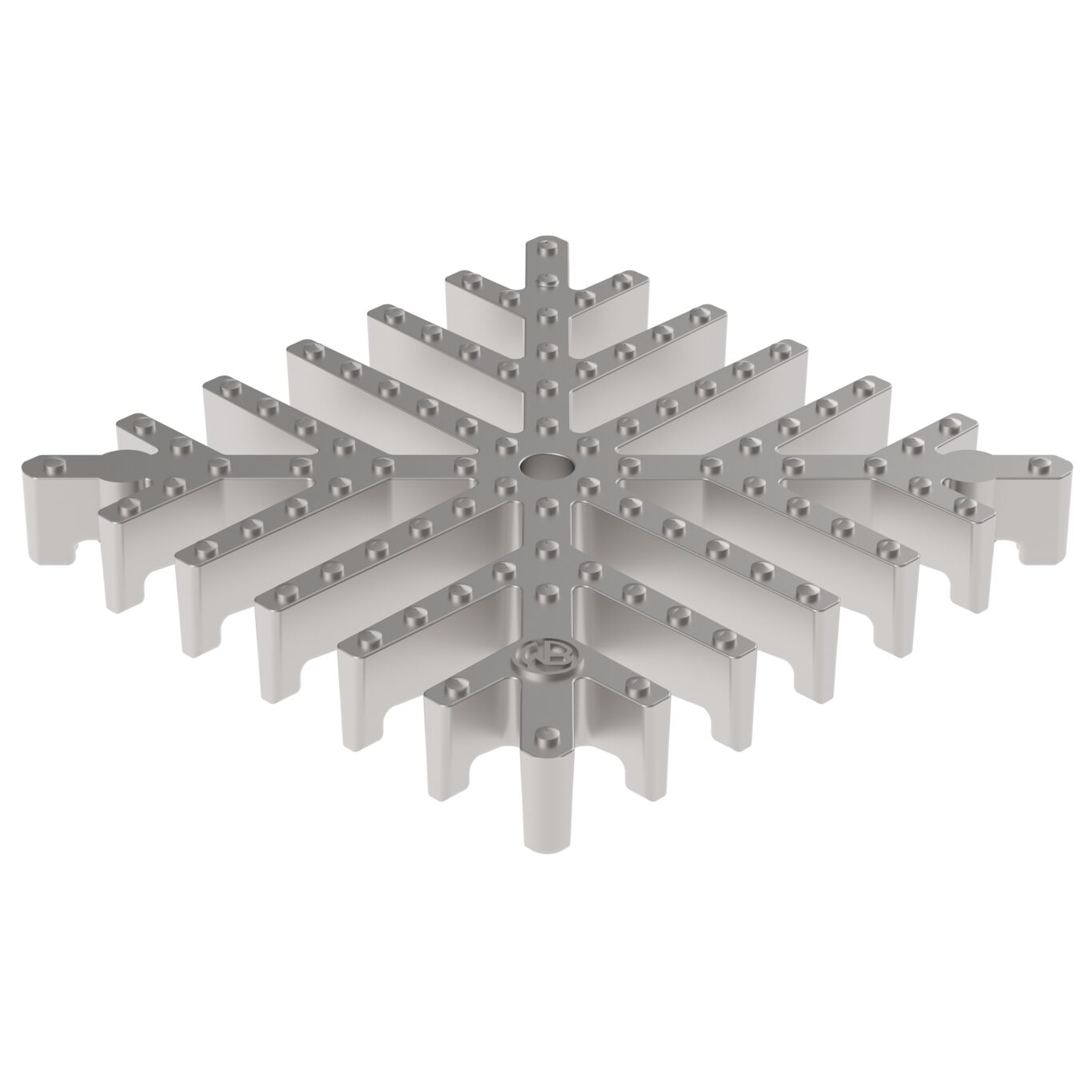

HYGIENICPRO GRATING SQUARE
-Grating: 170x170mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load Class EN1253 (kg) | R50 (7000) |
| Load class EN1253(lbs) | R50 (15432) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 24 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 2,00 |
| Weight (lbs) | 4,41 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
