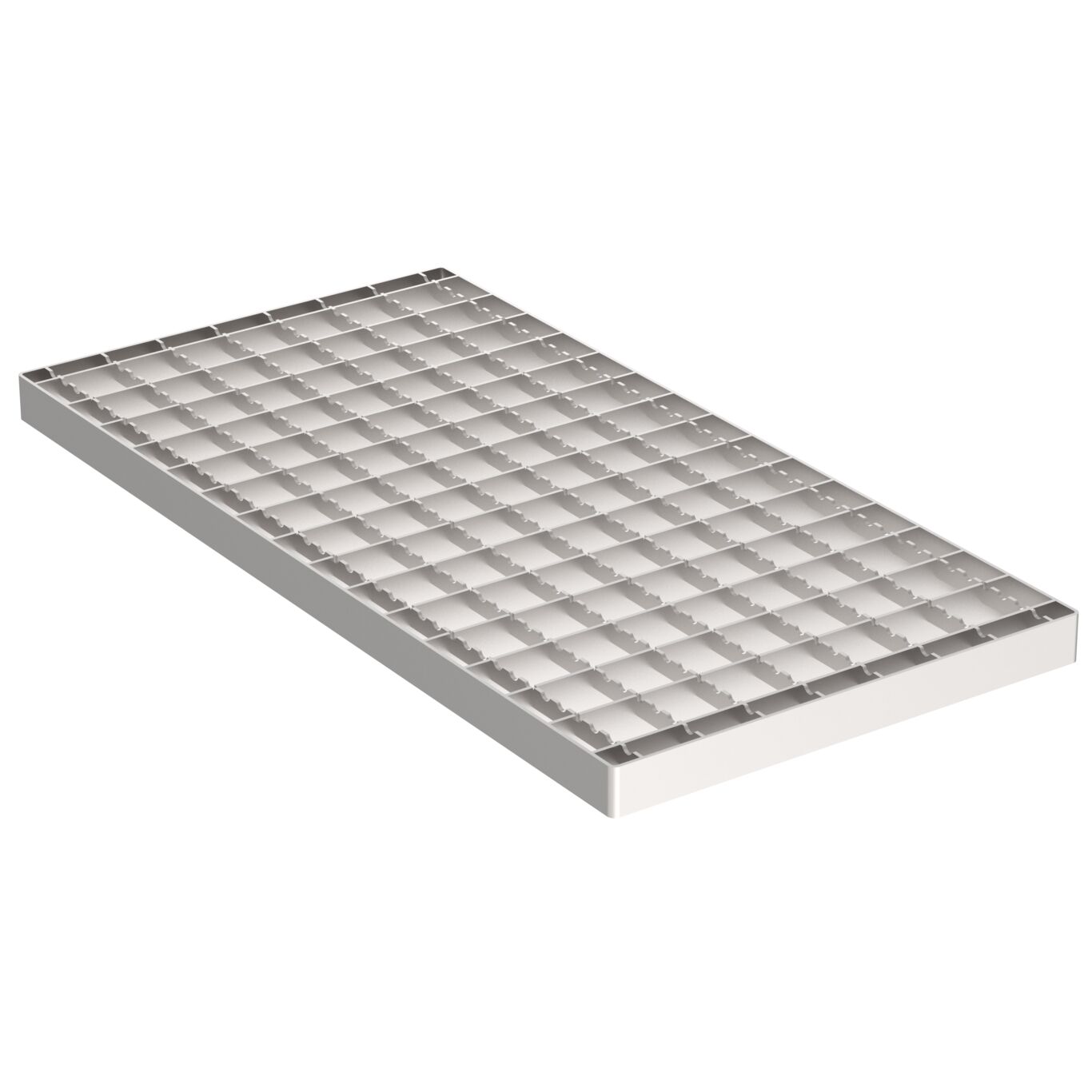

MESH GRATING COMPACT DRAIN - (696.243.267.535)
×
![]()
Part Of the Series: Grating-Channel-300
Type no.: 696.243.267.535
EAN no.: 5705499140330
Size: 300x600
MESH GRATING COMPACT DRAIN

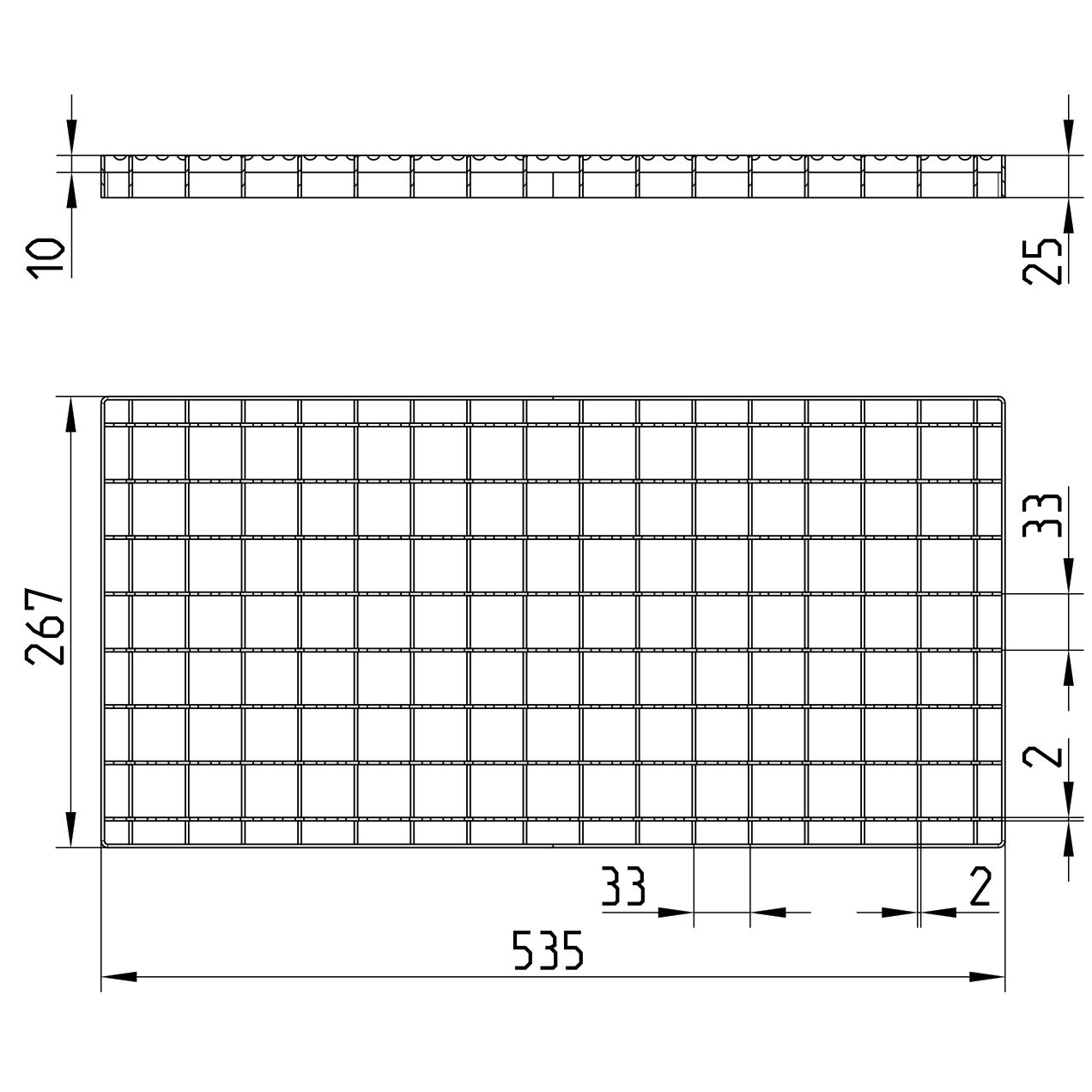

-Grating: 267x535mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load Class EN1253 (kg) | L15 (2000) |
| Load class EN1253(lbs) | L15 (4409) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Non-slip | R12 |
| Shape | Rectangular |
| Size (Inch) | 11¾x23⅝ |
| Size (mm) | 300x600 |
| Weight (kg) | 2,85 |
| Weight (lbs) | 6,28 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
