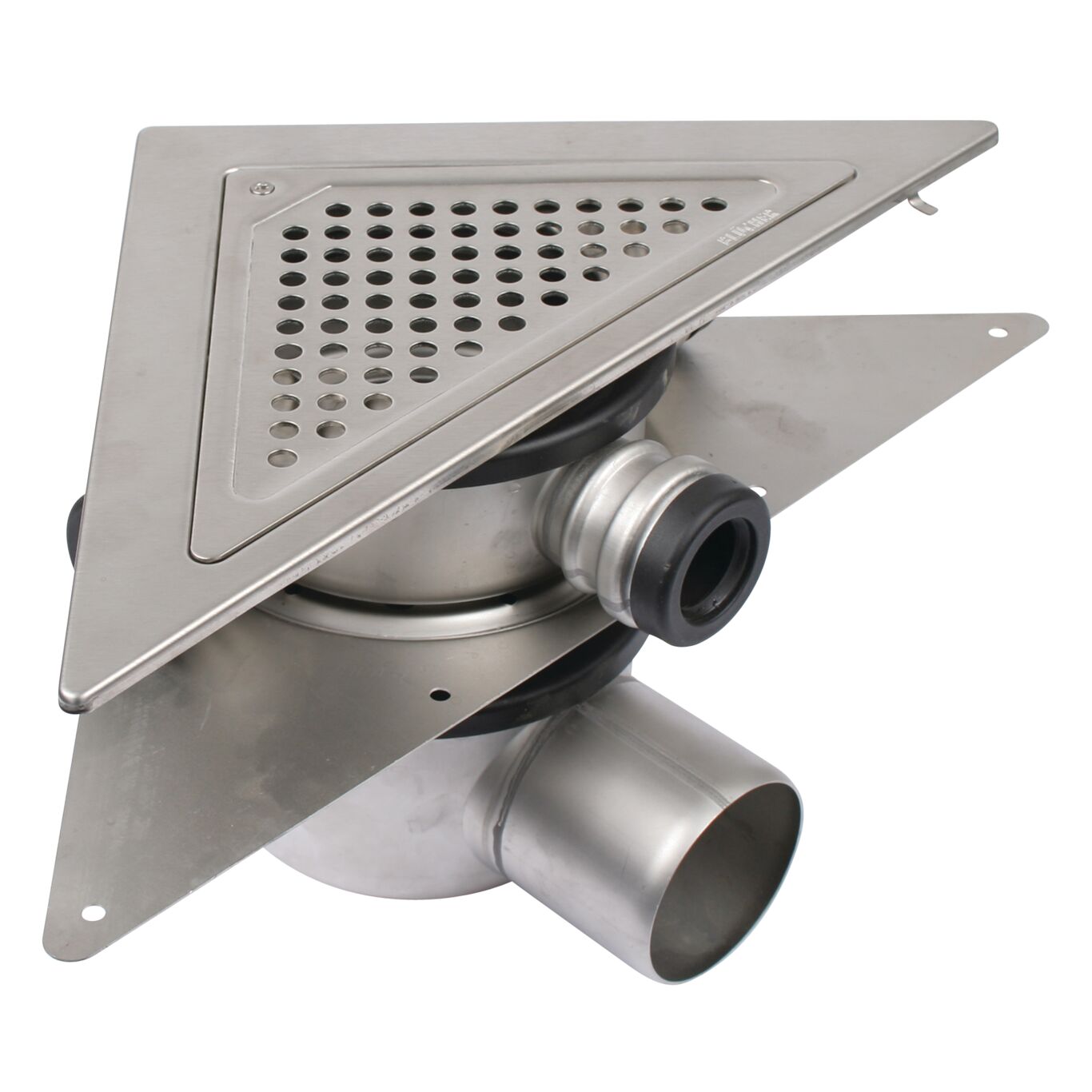

ADJUSTABLE SHOWER DRAIN TRIO - (313.360.075)
×
![]()
Part Of the Series: Drain-Sheet membrane-Triangular
Type no.: 313.360.075
EAN no.: 5705499121384
NRF no.: 3394712
ADJUSTABLE SHOWER DRAIN TRIO
-With side inlets, for installation in corner
-Floor: concrete and tiled
-Sheet membrane, frame: triangular
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Installation | Corner |
| Load Class EN1253 | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 265 |
| Membrane Type | Sheet Membrane |
| Minimum Height (mm) | 200 |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of inlets (Inch) | 3 (Ø1¼"/1½") |
| Number of Screw Holes | 1 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Shape | Triangular |
| Weight (kg) | 2,79 |
| Weight (lbs) | 6,15 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
