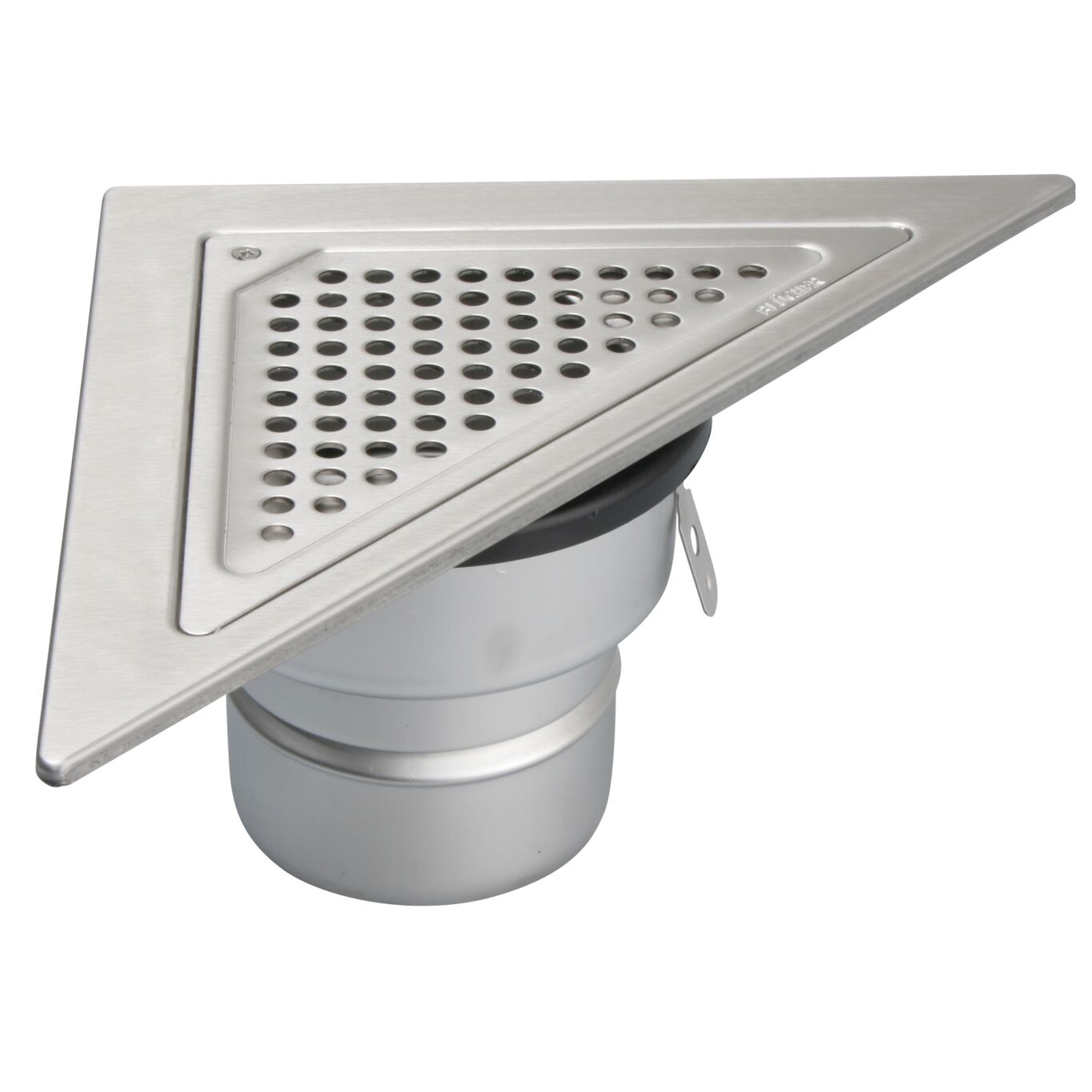

ADJUSTABLE SHOWER DRAIN TRIO - (150.360.110)
×
![]()
Part Of the Series: Drain-No membrane-Triangular
Type no.: 150.360.110
EAN no.: 5705499121131
ADJUSTABLE SHOWER DRAIN TRIO
-For installation in corner
-Floor: concrete and tiled
-No membrane, frame: triangular
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Installation | Corner |
| Load Class EN1253 | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 187 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 154 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 1 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Triangular |
| Weight (kg) | 1,37 |
| Weight (lbs) | 3,02 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
