ADJUSTABLE SHOWER DRAIN TRIO - (311.360.075)
×
![]()
Part Of the Series: Drain-Liquid membrane-Triangular
Type no.: 311.360.075
EAN no.: 5705499120080
VVS no.: 153303213
RSK no.: 7119814
NRF no.: 3394612

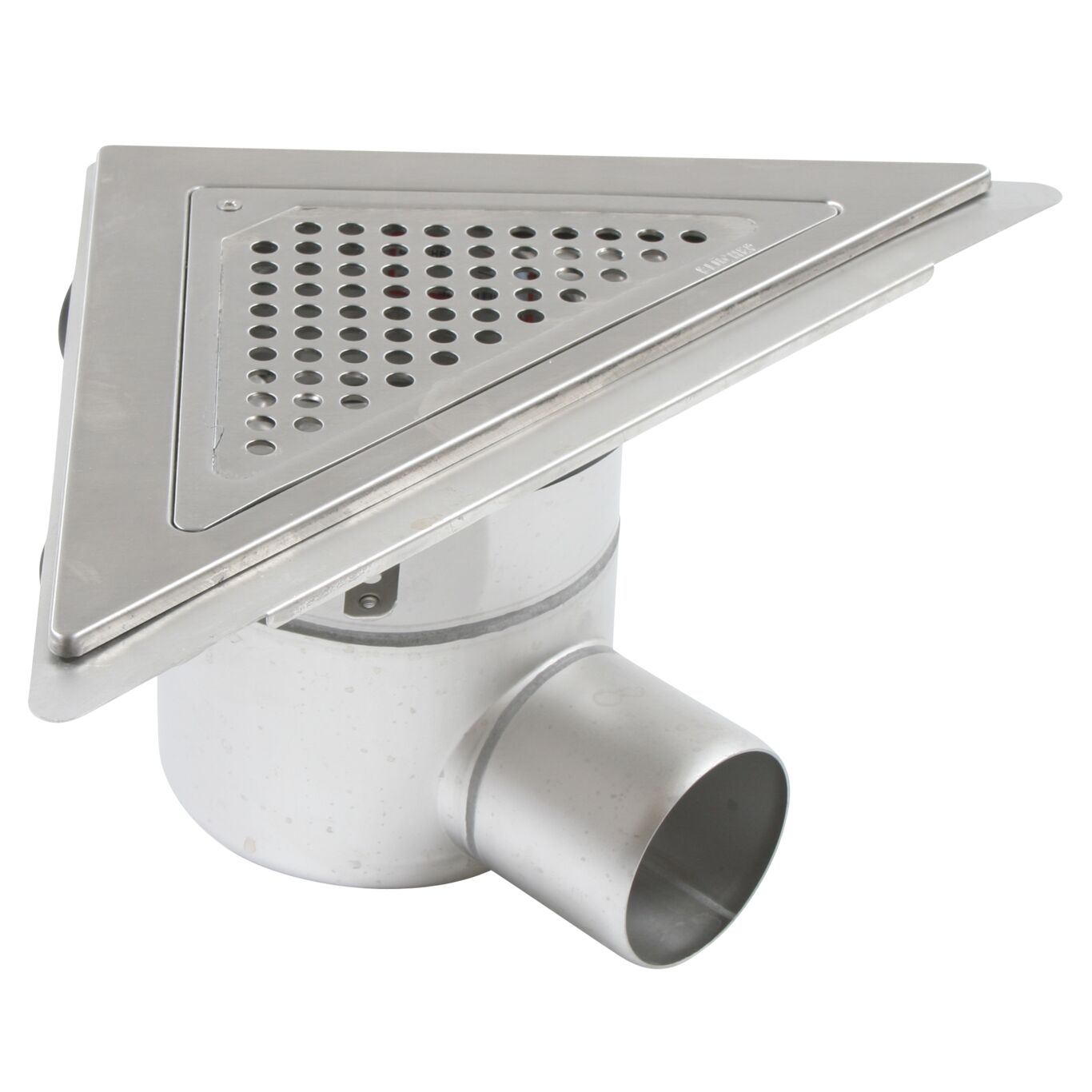

ADJUSTABLE SHOWER DRAIN TRIO
-With side inlets, for installation in corner
-Floor: concrete and tiled
-Liquid membrane, frame: triangular
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301

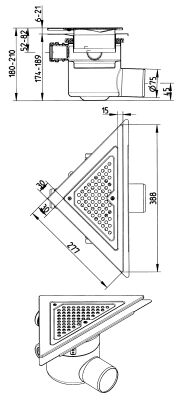

| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Installation | Corner |
| Load Class EN1253 | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 210 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 180 |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of inlets (Inch) | 3 (Ø1¼"/1½") |
| Number of Screw Holes | 1 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Shape | Triangular |
| Weight (kg) | 2,34 |
| Weight (lbs) | 5,16 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
