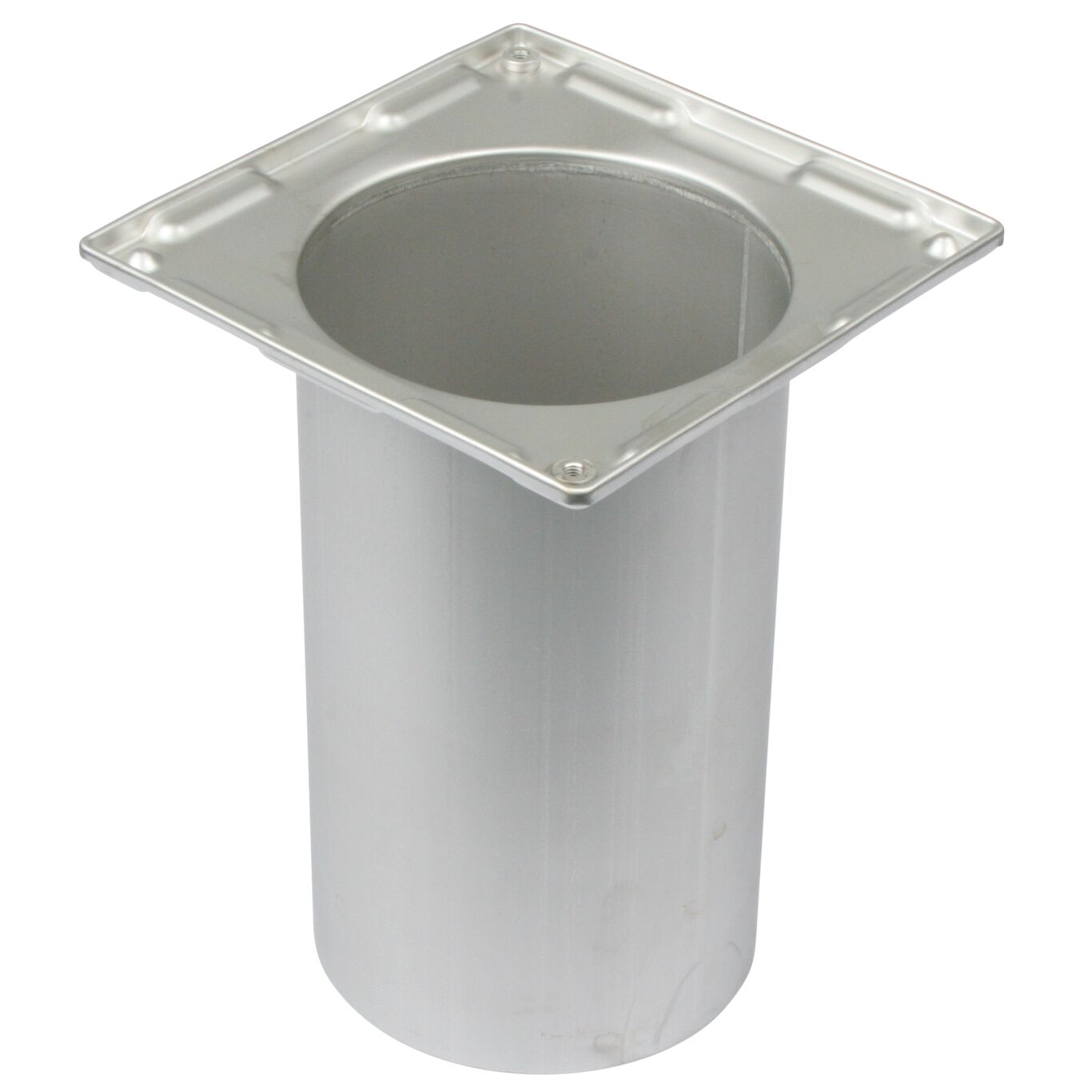

UPPER PART SQUARE, LONG - (110.300.001)
×
![]()
Part Of the Series: Upper part-No membrane-145
Type no.: 110.300.001
EAN no.: 5705499107210
VVS no.: 153327740
LVI no.: 3305779

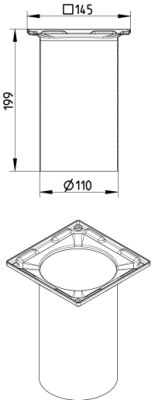

Size: 145x145
UPPER PART SQUARE, LONG
-No supporting ring
-Floor: concrete and tiled
-Frame: 145x145mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (Inch) | 5¾x5¾ |
| Size (mm) | 145x145 |
| Weight (kg) | 0,60 |
| Weight (lbs) | 1,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
