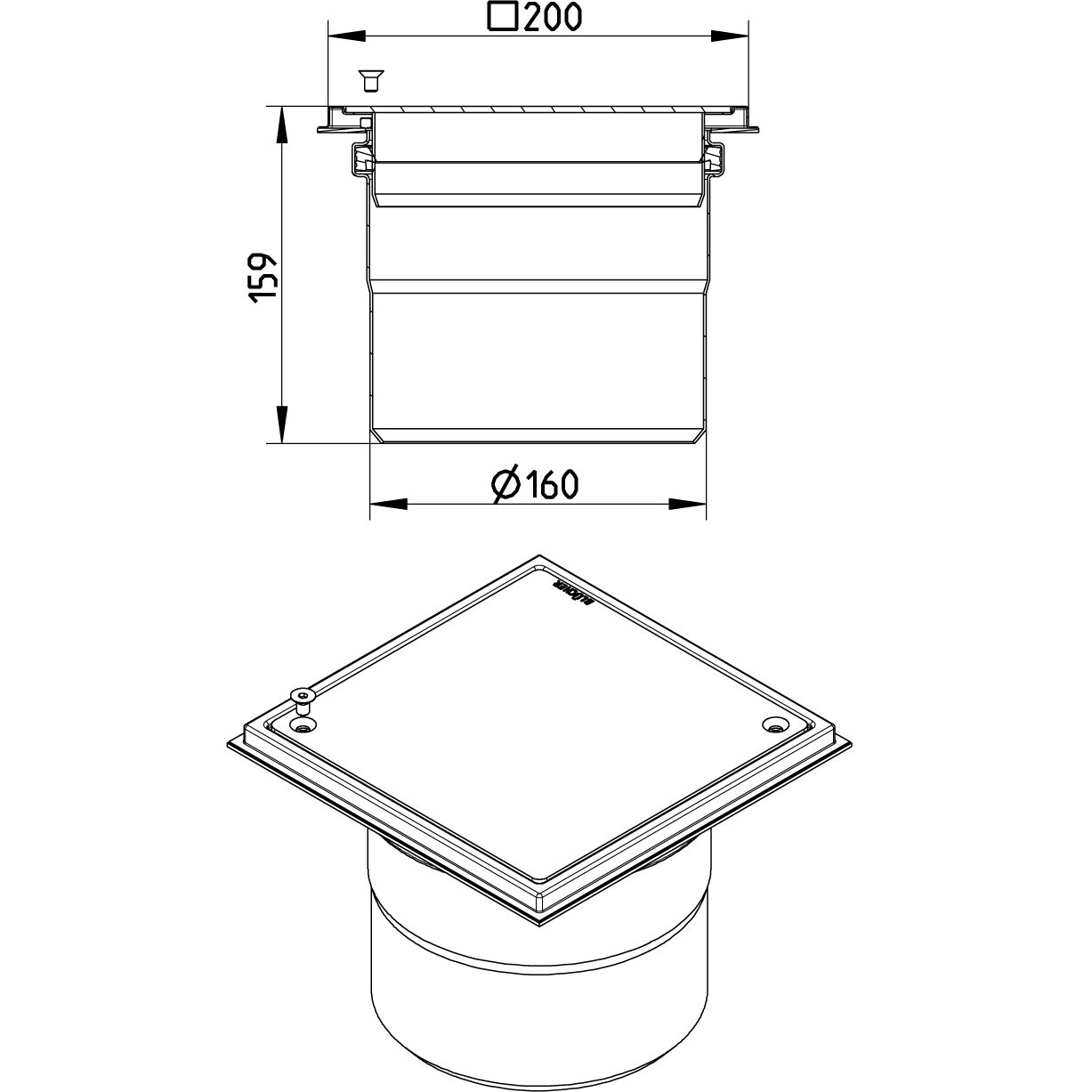

RODDING EYE FOR VACUUM HANDLE - (144.205.160 S)
×
![]()
Part Of the Series: Rodding eye-No membrane-200
Type no.: 144.205.160 S
EAN no.: 5705499408553
RSK no.: 7120130
LVI no.: 3305807
Size: 200x200
RODDING EYE FOR VACUUM HANDLE
-With screw lock
-Floor: concrete and tiled
-No membrane, frame: 200x200mm
-Outlet: Ø160mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 (750) |
| Load class EN1253(lbs) | K3 (1653) |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 7⅞x7⅞ |
| Size (mm) | 200x200 |
| Weight (kg) | 3,06 |
| Weight (lbs) | 6,75 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
