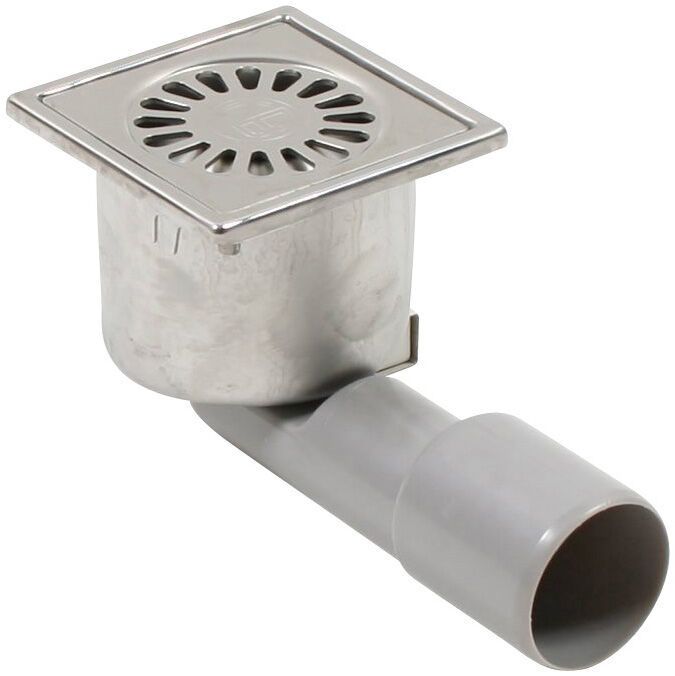

COMPACT DRAIN 100X100 - (182.102.040)
×
![]()
Part Of the Series: Drain-No membrane-97
Type no.: 182.102.040
EAN no.: 5705499120455
Size: 97x97
COMPACT DRAIN 100X100
-Floor: concrete and tiled
-Frame: 97x97mm
-Outlet: Ø40/50mm, vertical/horizontal
-Material: Stainless steel & ABS
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screws | 0 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal|Vertical |
| Shape | Square |
| Size (mm) | 97x97 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0,52 |
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
