MINI SHOWER DRAIN SQUARE - (181.300.032)
×
![]()
Part Of the Series: Drain-No membrane-145
Type no.: 181.300.032
EAN no.: 5705499107364
VVS no.: 153490110
NRF no.: 3394914
LVI no.: 3305775
Size: 145x145

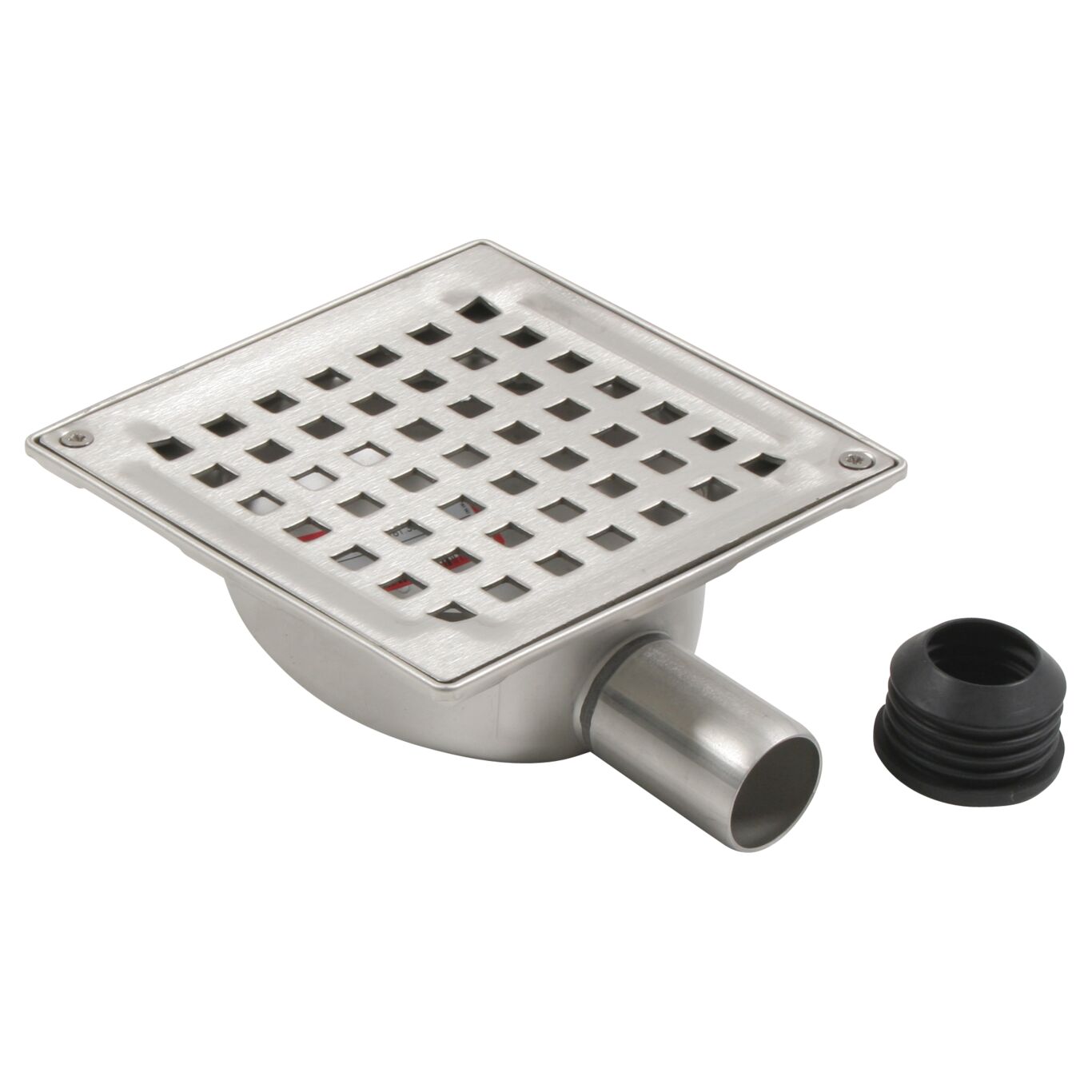

MINI SHOWER DRAIN SQUARE
-Removable water trap cannot be used
-Floor: concrete and tiled
-No membrane, frame: 145x145mm
-Outlet: Ø32/40mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 1¼ |
| Outlet Diameter (mm) | 32 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (Inch) | 5¾x5¾ |
| Size (mm) | 145x145 |
| Weight (kg) | 0,70 |
| Weight (lbs) | 1,54 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
