ADJUSTABLE SHOWER DRAIN SQUARE - (151.300.110)
×
![]()
Part Of the Series: Drain-No membrane-145
Type no.: 151.300.110
EAN no.: 5705499104943
VVS no.: 153321216
NRF no.: 3394533
LVI no.: 3305762
Size: 145x145

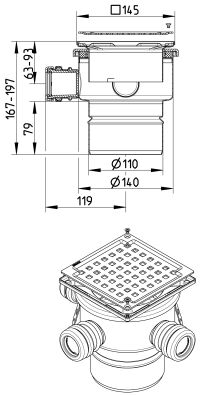

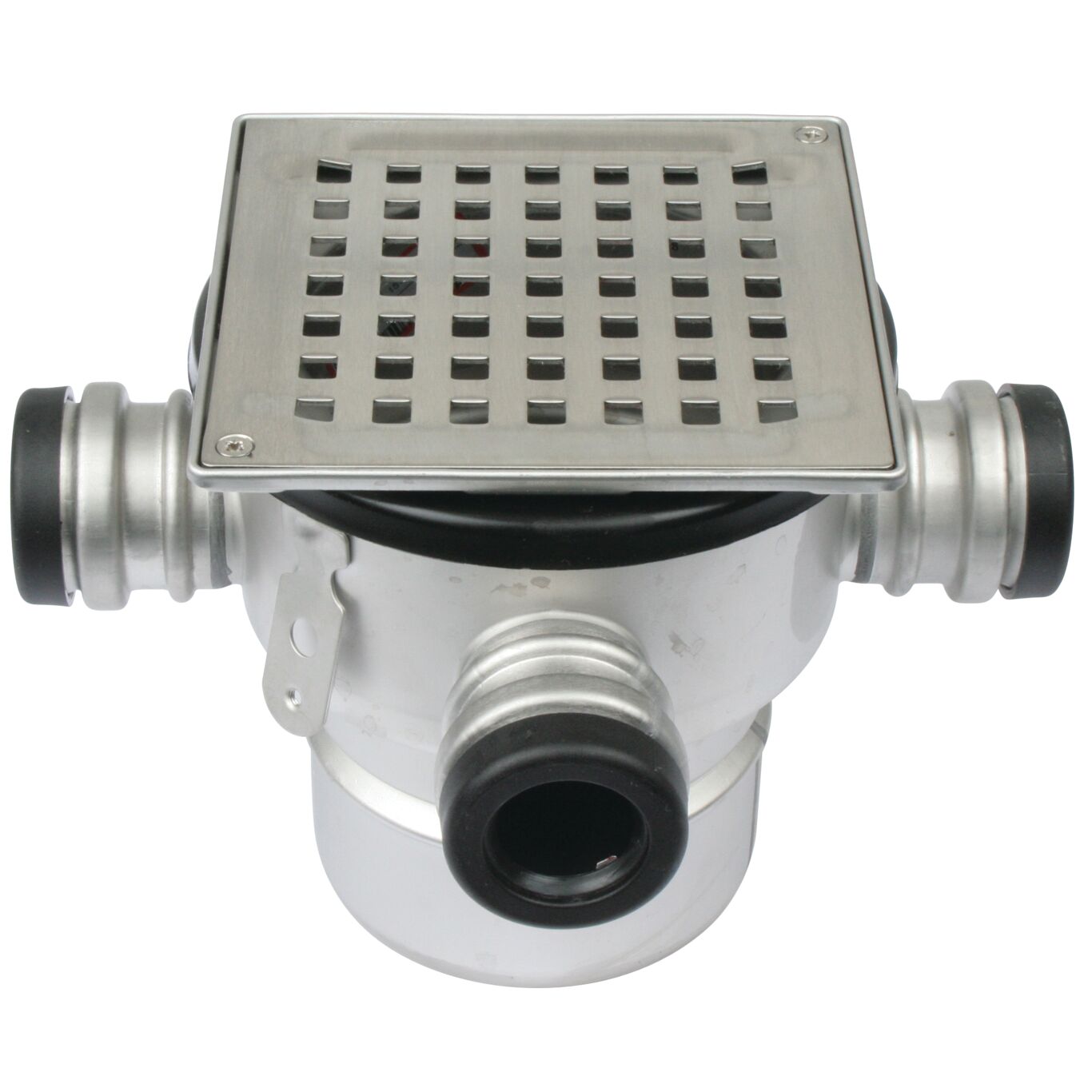

ADJUSTABLE SHOWER DRAIN SQUARE
-With side inlets
-Floor: concrete and tiled
-No membrane, frame: 145x145mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 197 |
| Membrane Type | No Membrane |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of inlets (Inch) | 3 (Ø1¼"/1½") |
| Number of Screw Holes | 2 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 5¾x5¾ |
| Size (mm) | 145x145 |
| Weight (kg) | 1,50 |
| Weight (lbs) | 3,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
