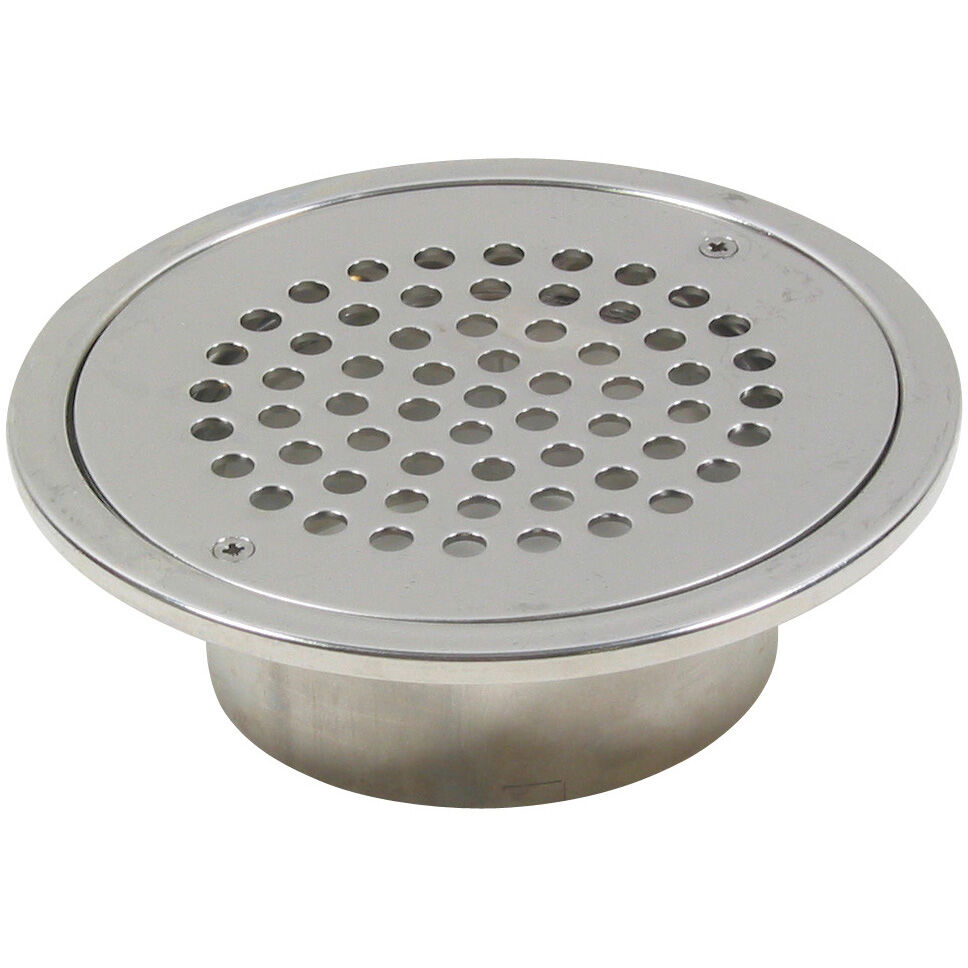

UPPER PART CIRCLE - (150.320.000 S)
×
![]()
Part Of the Series: Upper part-No membrane-180
Type no.: 150.320.000 S
EAN no.: 5705499118049
VVS no.: 153337116
LVI no.: 3304251
Size: Ø155
UPPER PART CIRCLE
-With supporting ring for water trap
-Floor: resin
-Frame: Ø180mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 59 |
| Number of Screw Holes | 3 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 0,57 |
| Weight (lbs) | 1,26 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
