SHOWER DRAIN CIRCLE - (283.300.050 V)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 283.300.050 V
EAN no.: 5705499134964
VVS no.: 153315118
Size: Ø155

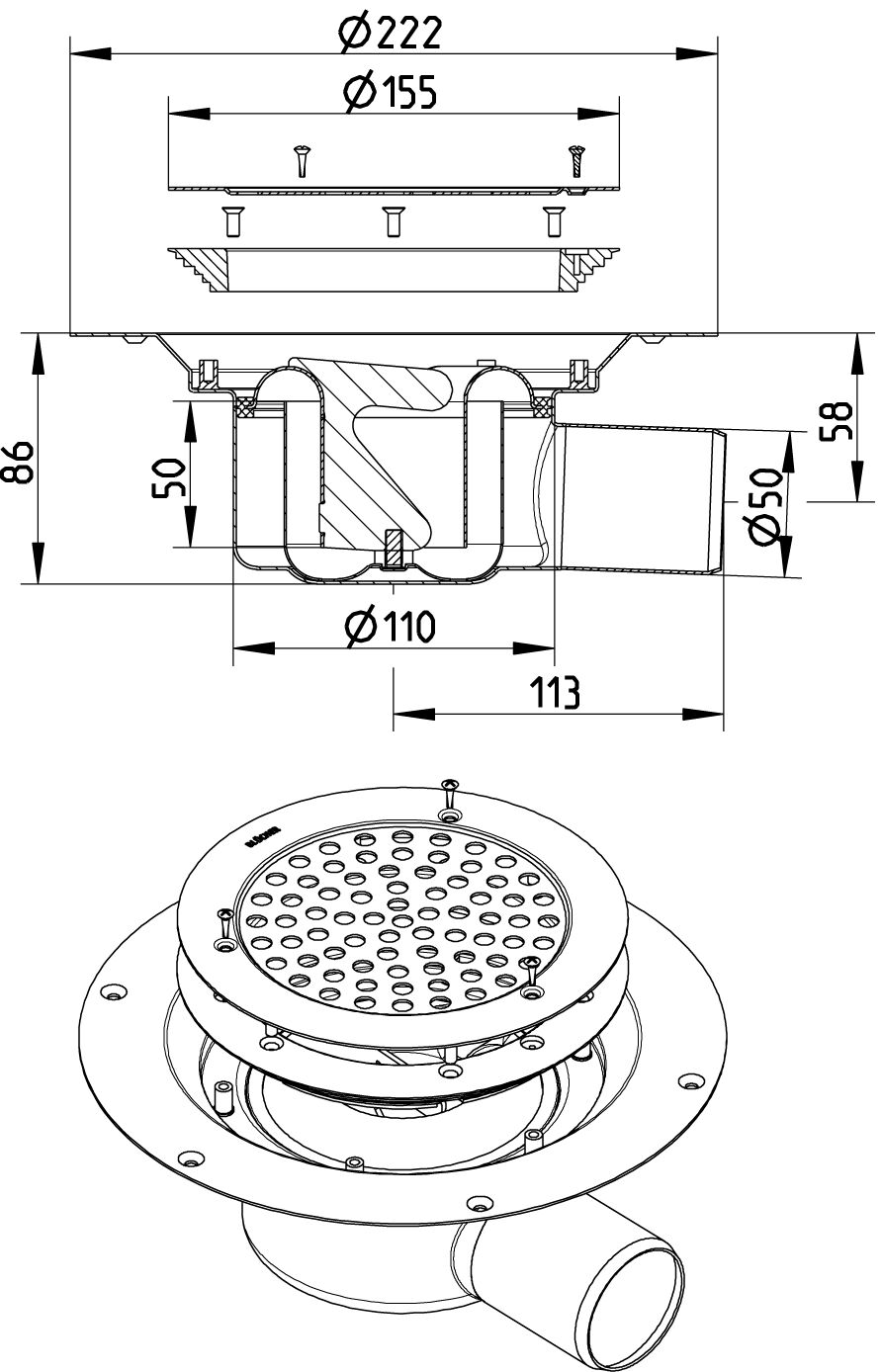

SHOWER DRAIN CIRCLE
-With removable water trap
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 86 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Number of Screw Holes | 3 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 1,06 |
| Weight (lbs) | 2,34 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
