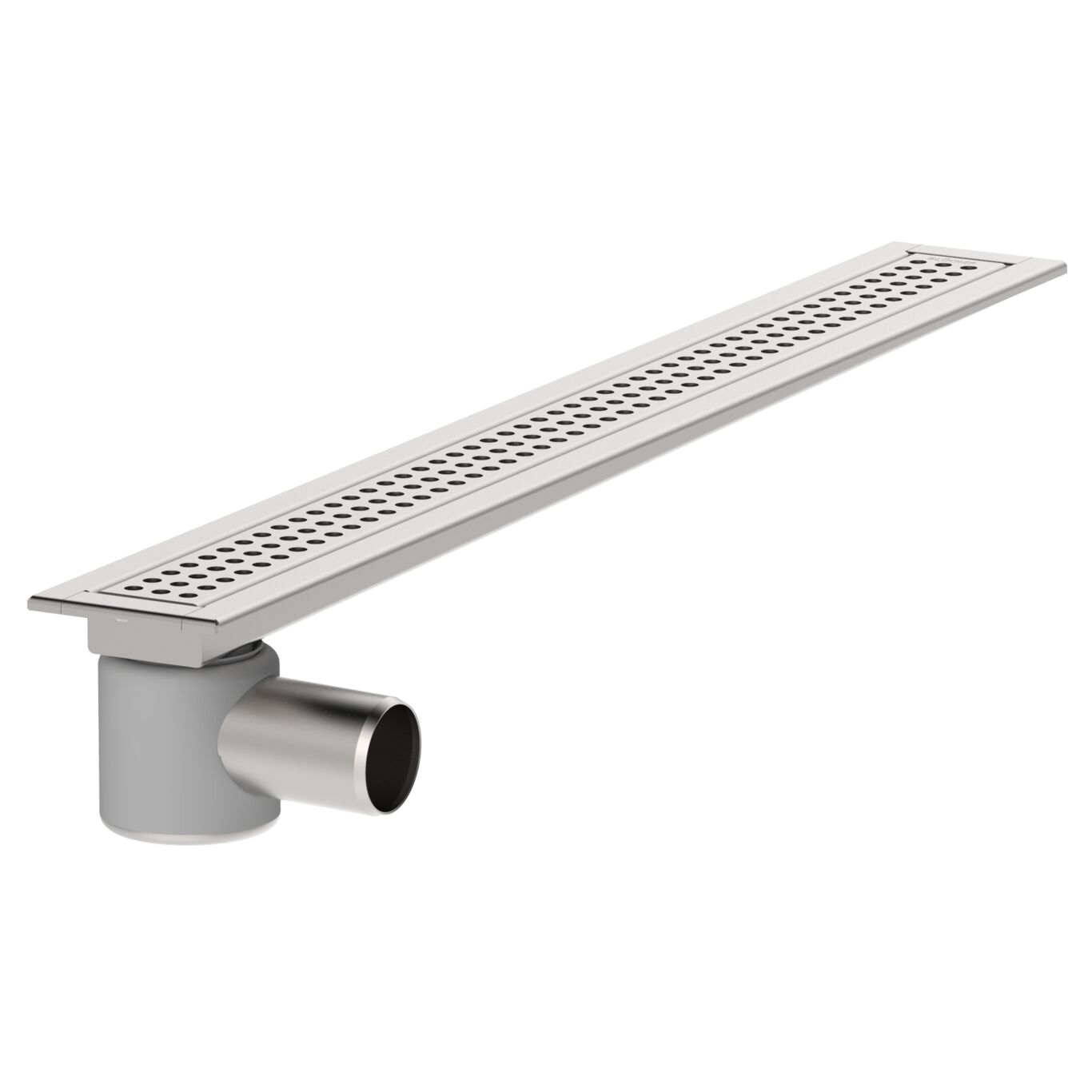

SHOWER CHANNEL WATERLINE 900, SET - (178.090.056.7A)
×
![]()
Part Of the Series: Shower channel-No membrane
Type no.: 178.090.056.7A
EAN no.: 5705499138320
Size: 50x900
SHOWER CHANNEL WATERLINE 900, SET
-With VIENNA grating
-Floor: concrete and tiled
-No membrane, frame: rectangular
-Outlet: Ø50mm horizontal, inclusive water trap
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Load class EN1253(lbs) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Outlet Box | No |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 2x35⅜ |
| Size (mm) | 50x900 |
| Weight (kg) | 2,45 |
| Weight (lbs) | 5,4 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
