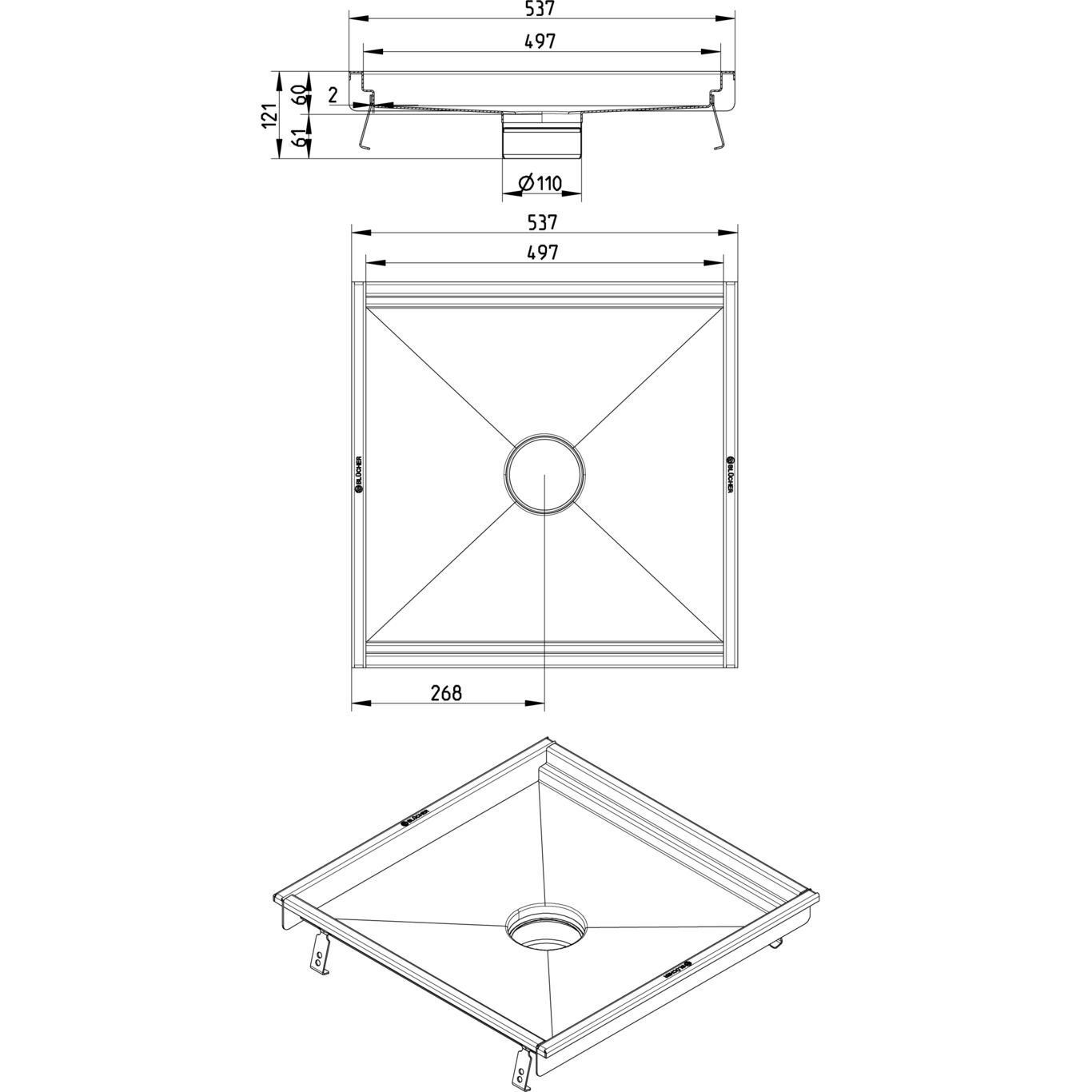

KITCHEN CHANNEL 500x500 - (660GH005-06)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660GH005-06
EAN no.: 5705499126303
Size: 500x500
KITCHEN CHANNEL 500x500
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 121 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (Inch) | 19⅝x19⅝ |
| Size (mm) | 500x500 |
| Weight (kg) | 13,35 |
| Weight (lbs) | 29,43 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - PS3079-21
US - NSF
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
