LINEA CHANNEL 150x500 CENTER OUTLET - (670.910.015.85 S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670.910.015.85 S
EAN no.: 5705499001761
Size: 150x500

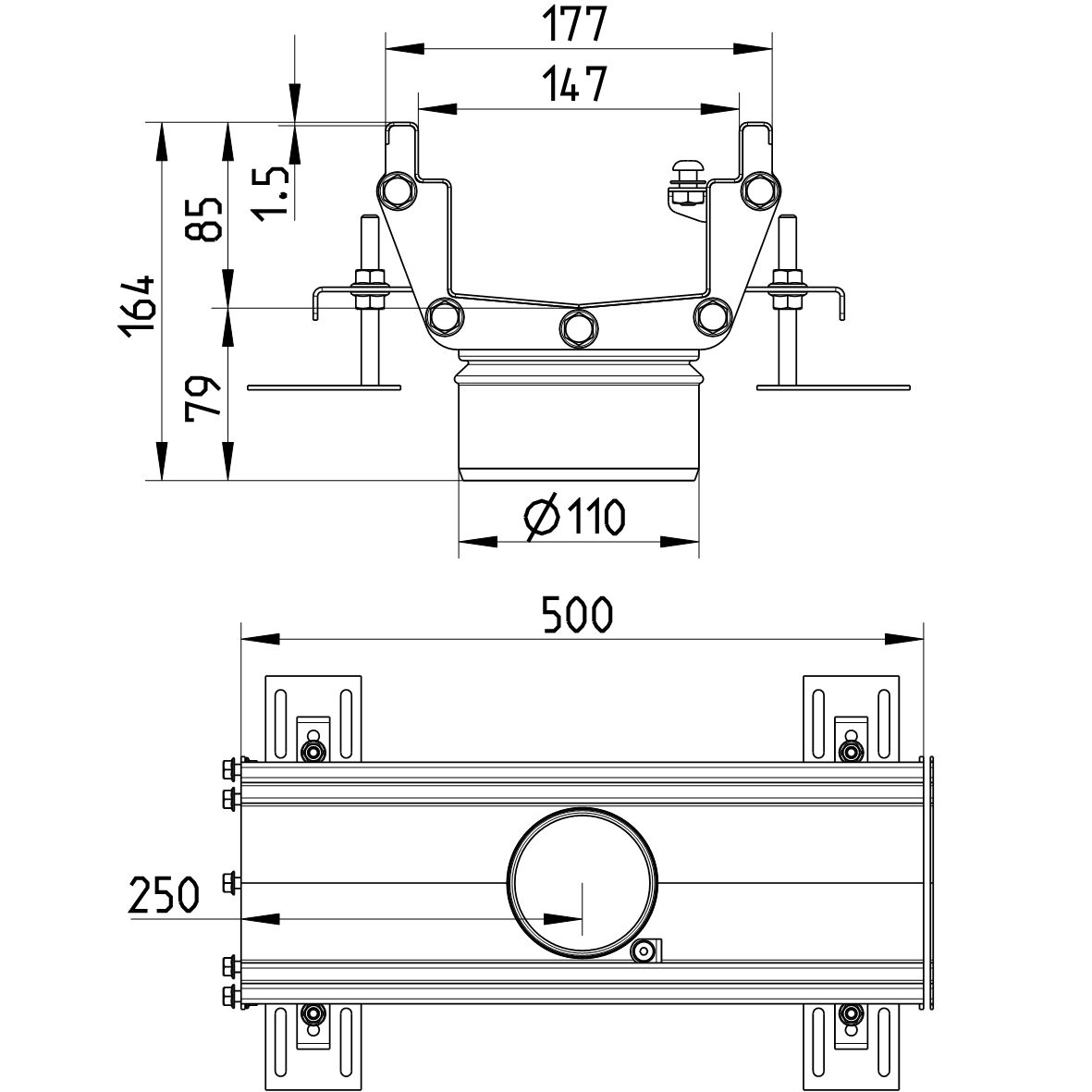

LINEA CHANNEL 150x500 CENTER OUTLET
-With screw lock
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 164 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 3,45 |
| Weight (lbs) | 2.2 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
