HYGIENICPRO CHANNEL 150x6000 CENTER OUTLET - (676CT060-30CF S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CT060-30CF S
EAN no.: 5705499137248
LVI no.: 3305728
Size: 150x6000

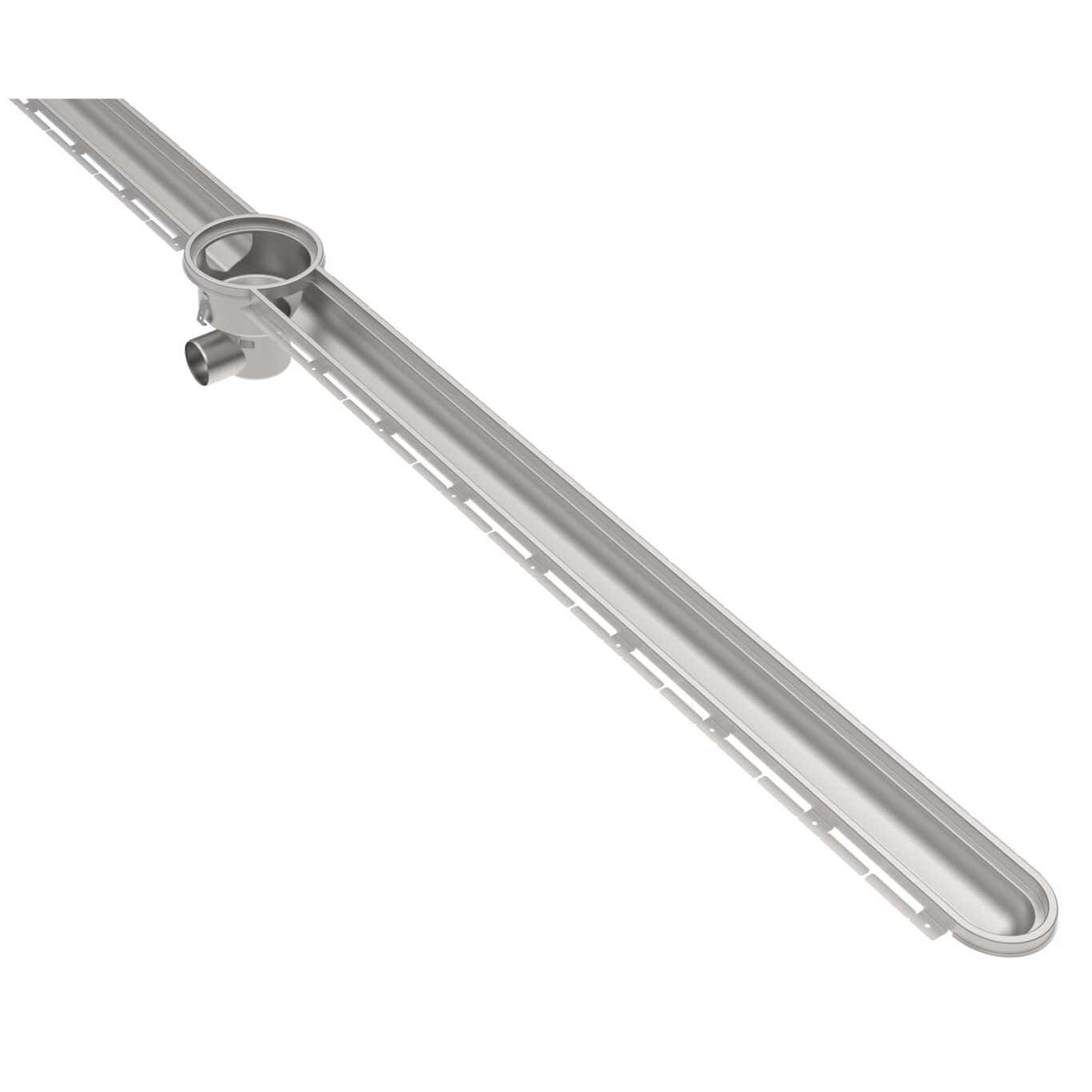

HYGIENICPRO CHANNEL 150x6000 CENTER OUTLET
-Low model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 319 |
| Outlet Box | Yes |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (Inch) | 5⅞x236¼ |
| Size (mm) | 150x6000 |
| Weight (kg) | 50,37 |
| Weight (lbs) | 111,05 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
