HYGIENICPRO CHANNEL 150x5000 CENTER OUTLET - (676CT050-25CF S)
Part Of the Series: Channel-No membrane
Type no.: 676CT050-25CF S
EAN no.: 5705499137125
LVI no.: 3305726
Size: 150x5000

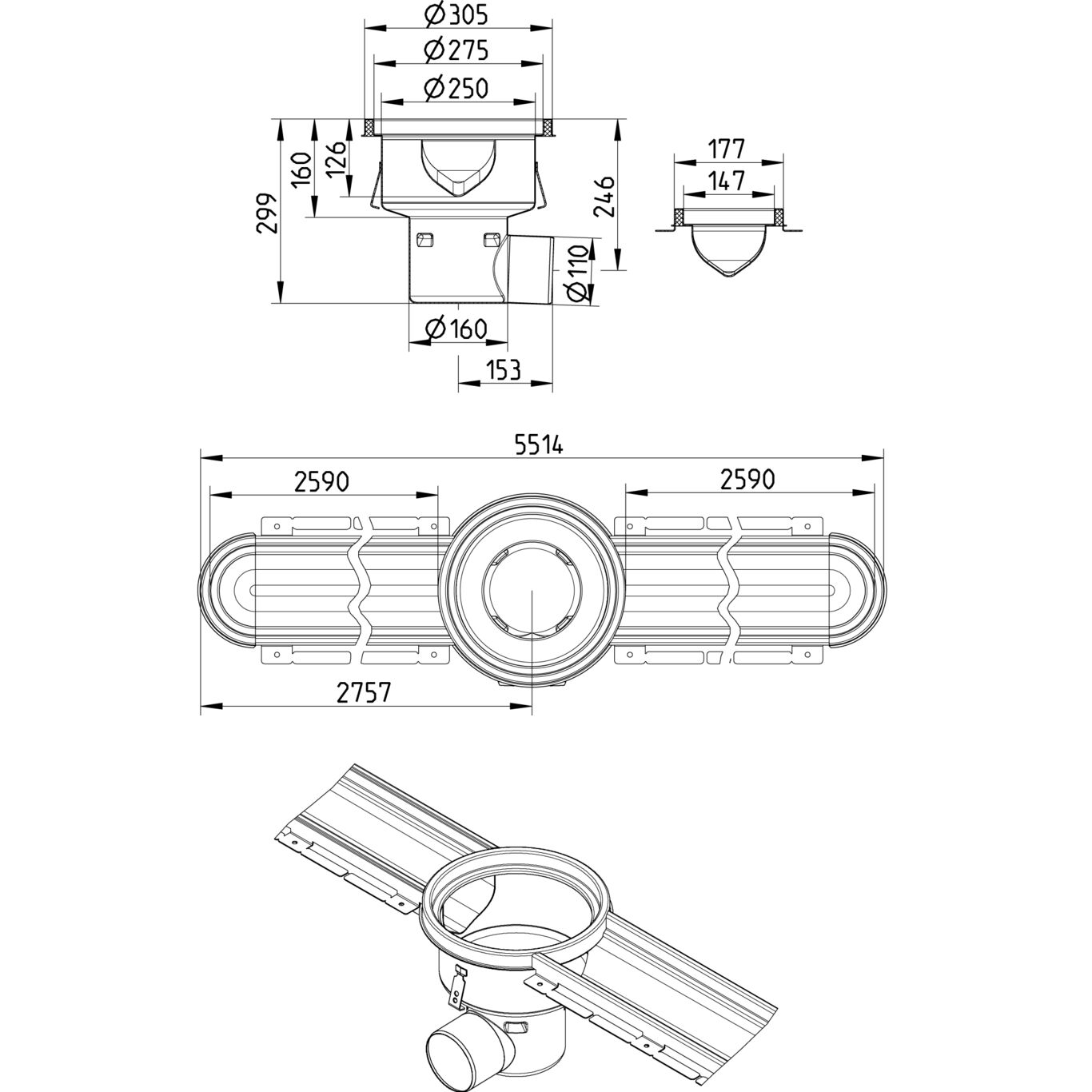

HYGIENICPRO CHANNEL 150x5000 CENTER OUTLET
-Low model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Minimum Height (mm) | 299 |
Outlet Box | Yes |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Outlet Placement | Center |
Shape | Rectangular |
Size (Inch) | 5⅞x196⅞ |
Size (mm) | 150x5000 |
Weight (kg) | 38,24 |
Weight (lbs) | 84,3 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
