HYGIENICPRO CHANNEL 150x3000 END OUTLET - (676CC030-00EF S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 676CC030-00EF S
EAN no.: 5705499136029
LVI no.: 3305644
Size: 150x3000

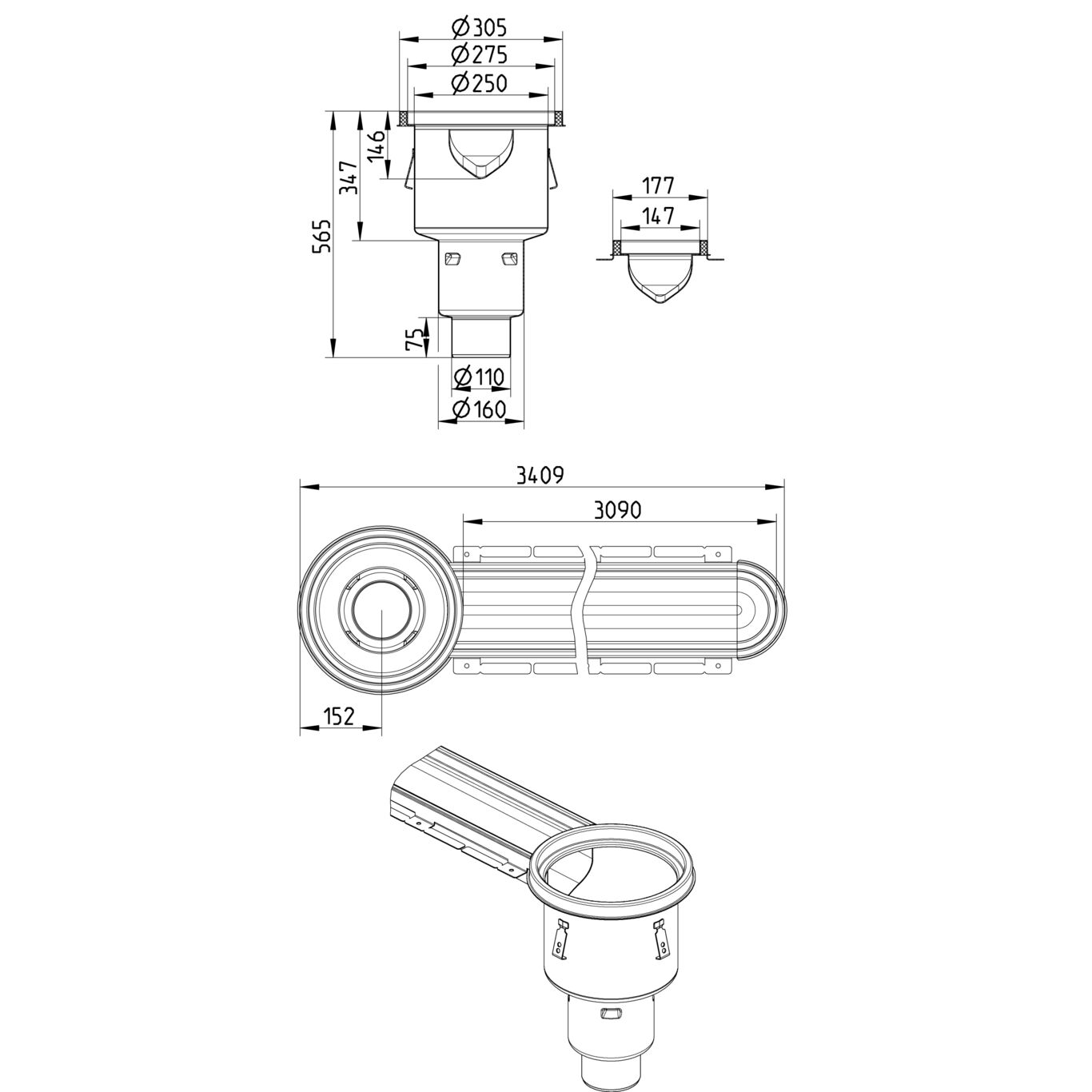

HYGIENICPRO CHANNEL 150x3000 END OUTLET
-High model. With outlet box
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 565 |
| Outlet Box | Yes |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 5⅞x118⅛ |
| Size (mm) | 150x3000 |
| Weight (kg) | 28,96 |
| Weight (lbs) | 63,85 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
