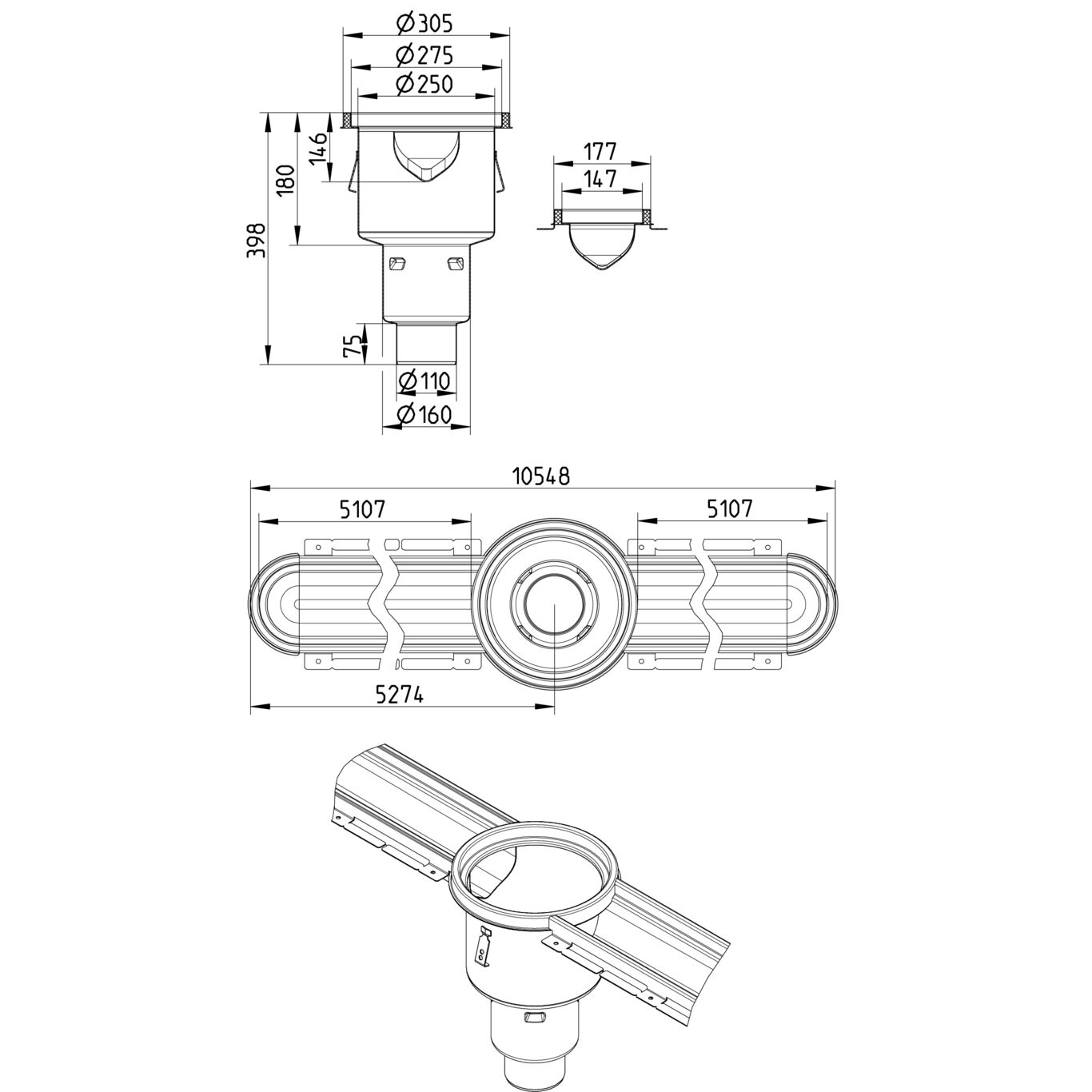

HYGIENICPRO CHANNEL 150x10000 CENTER OUTLET - (676CC100-50CF S)

Part Of the Series: Channel-No membrane

Type no.: 676CC100-50CF S

EAN no.: 5705499137675

LVI no.: 3305712

Size: 150x10000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type No Membrane
Minimum Height (mm) 398
Outlet Box Yes
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (Inch) 5⅞x393¾
Size (mm) 150x10000
Weight (kg) 75,92
Weight (lbs) 167,37
