STRAIGHT PIPE WITH ONE SOCKET - (811.600.075)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.600.075
EAN no.: 5705499401035
VVS no.: 160124260
RSK no.: 1550170
NRF no.: 2172303
LVI no.: 0240141

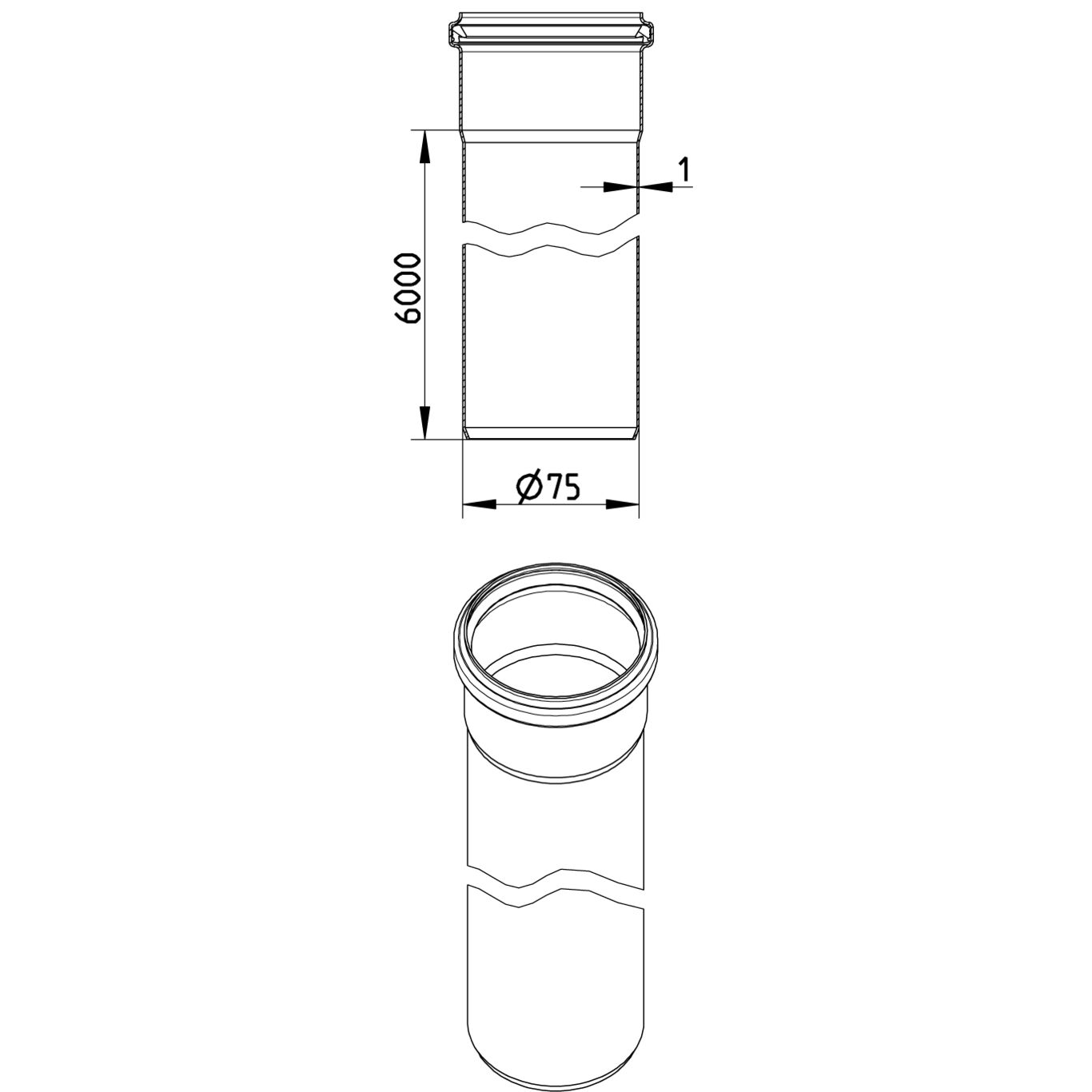

STRAIGHT PIPE WITH ONE SOCKET
-Length: 6000mm
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 19' 8" |
| Length of straight pipe (mm) | 6000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 11,13 |
| Weight (lbs) | 25,18 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22
