STRAIGHT PIPE WITH ONE SOCKET - (811.300.160)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.300.160
EAN no.: 5705499400830
VVS no.: 160132230
RSK no.: 1550168
NRF no.: 2168919
LVI no.: 0240238

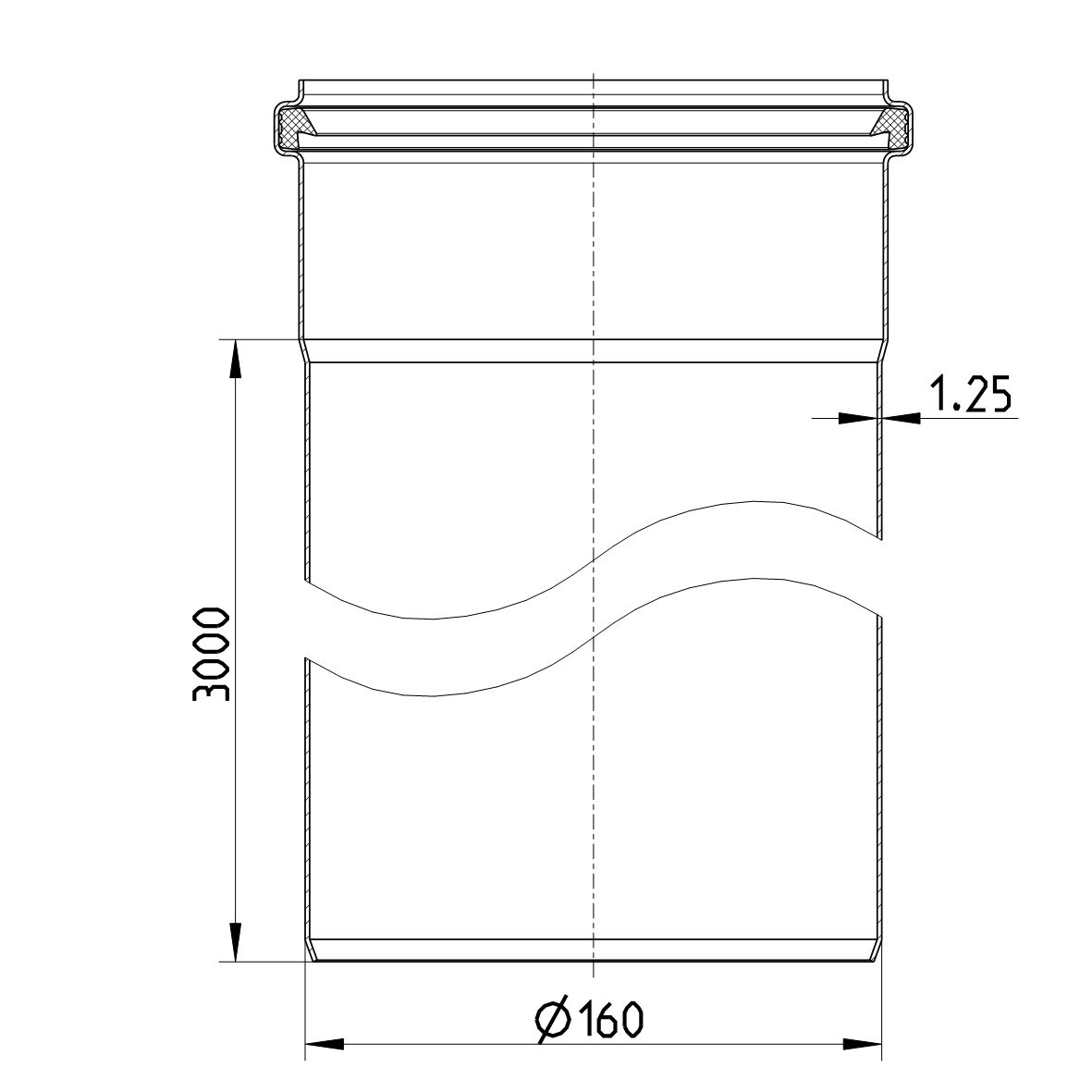

STRAIGHT PIPE WITH ONE SOCKET
-Length: 3000mm
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 9' 10" |
| Length of straight pipe (mm) | 3000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 15,19 |
| Weight (lbs) | 34,37 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24 Lloyds Register LR22419510TA_02 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM
