STRAIGHT PIPE WITH ONE SOCKET - (811.200.200 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.200.200 S
EAN no.: 5705499410884
VVS no.: 160134500
RSK no.: 1551543
NRF no.: 2170721
LVI no.: 0250287

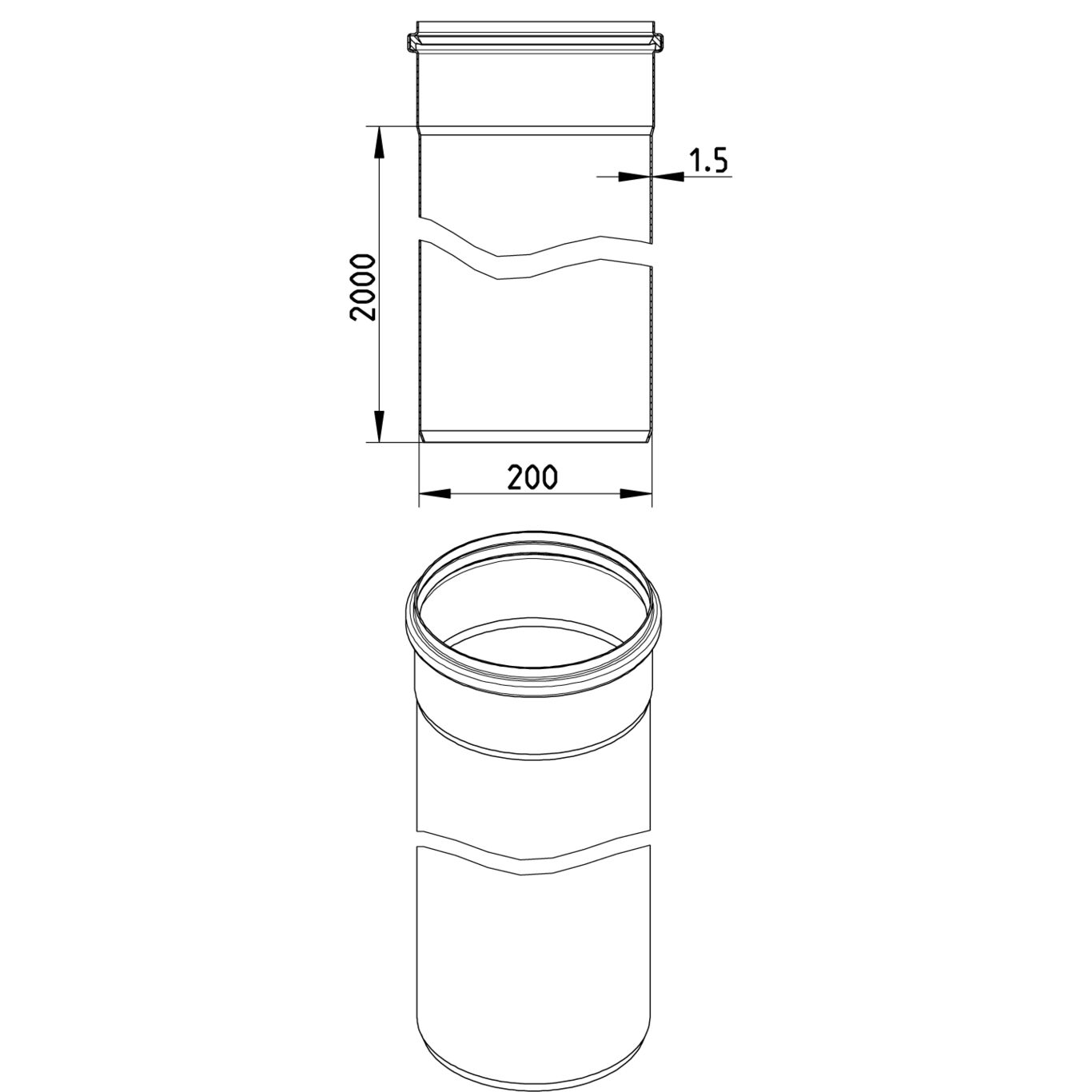

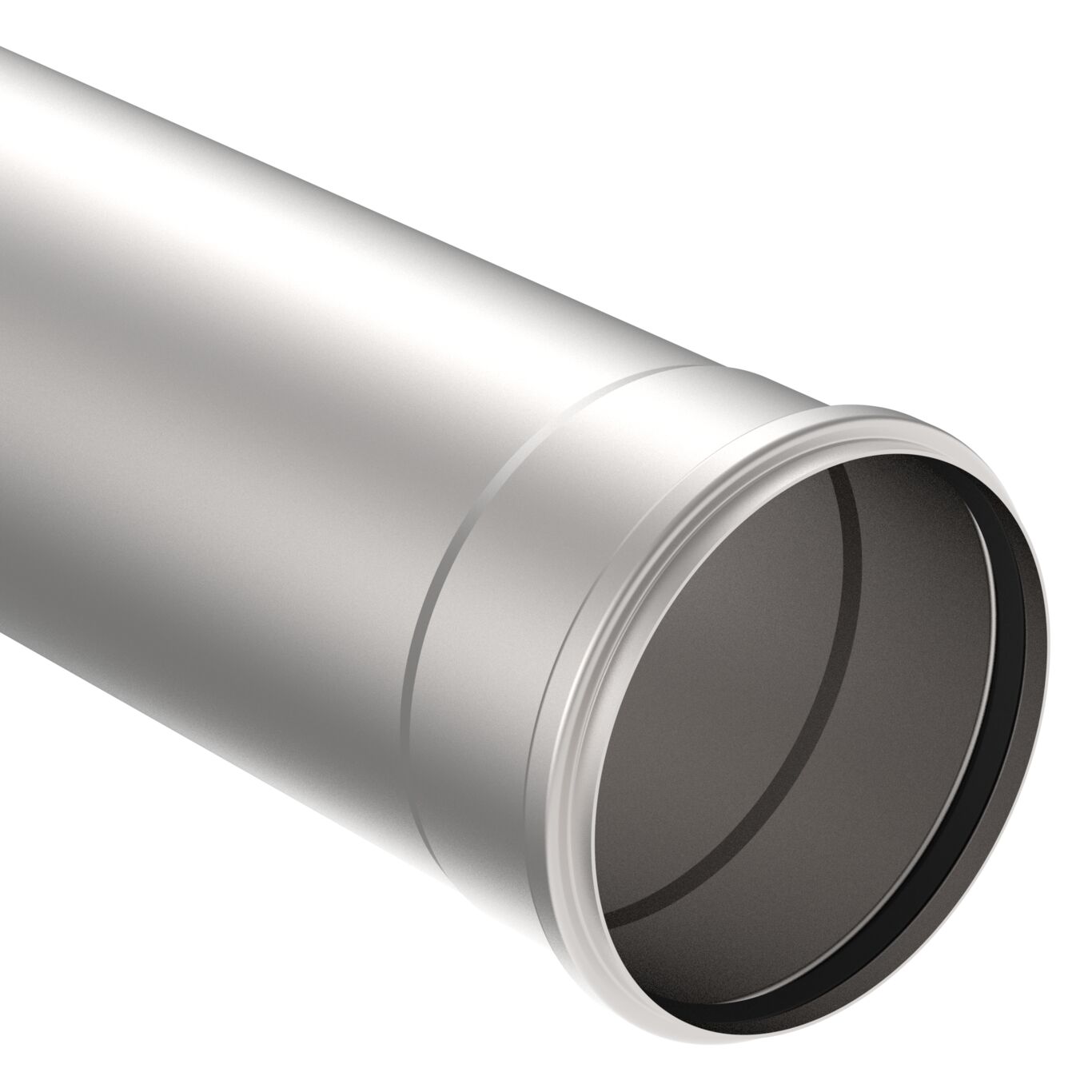

STRAIGHT PIPE WITH ONE SOCKET
-Length: 2000mm
-Diameter: Ø200mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 6' 7" |
| Length of straight pipe (mm) | 2000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 8 |
| Outlet Diameter (mm) | 200 |
| Weight (kg) | 15,71 |
| Weight (lbs) | 34,63 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA_02
