STRAIGHT PIPE WITH ONE SOCKET - (811.200.075 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.200.075 S
EAN no.: 5705499400717
VVS no.: 160124500
RSK no.: 1550244
NRF no.: 2170692
LVI no.: 0250137

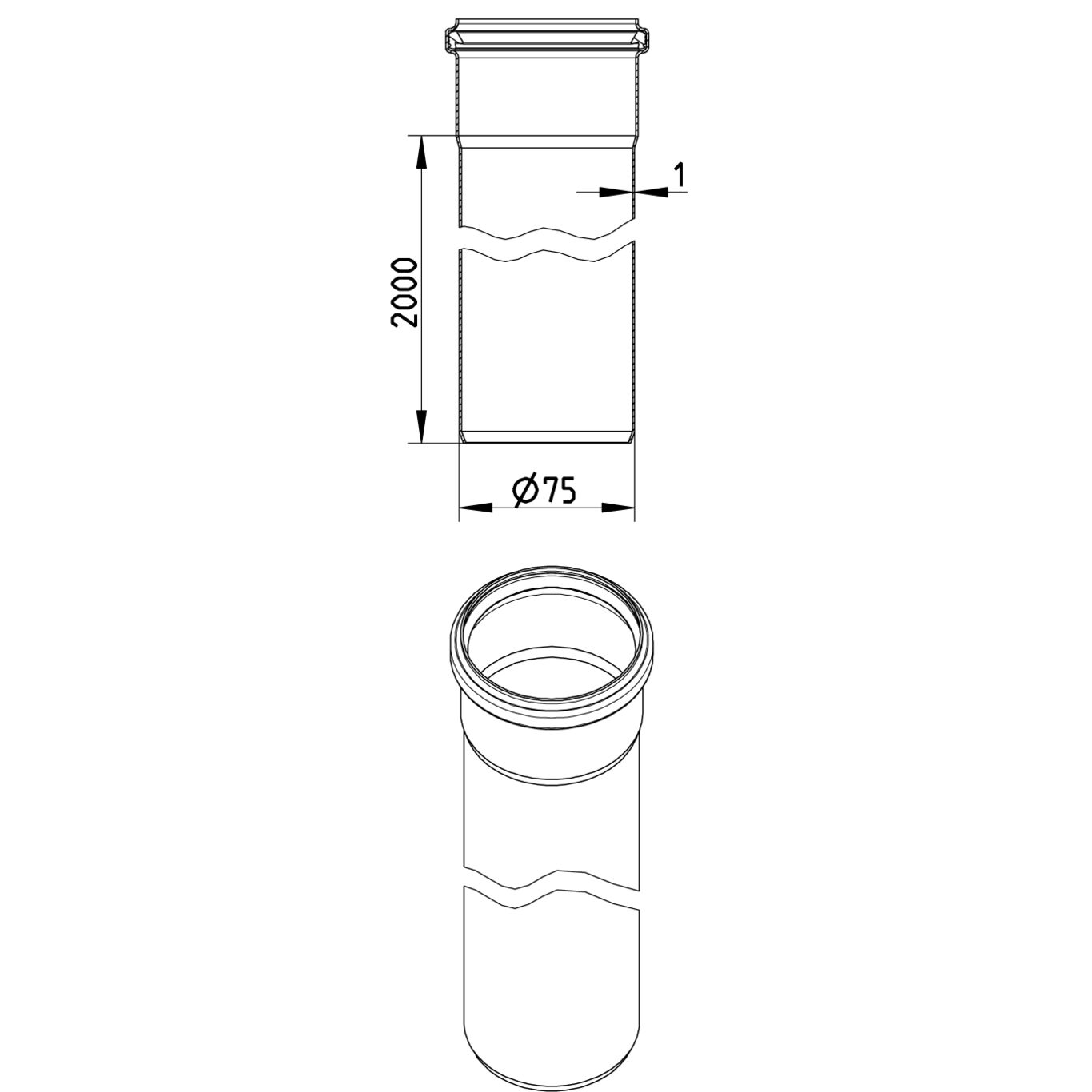

STRAIGHT PIPE WITH ONE SOCKET
-Length: 2000mm
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 6' 7" |
| Length of straight pipe (mm) | 2000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 3,70 |
| Weight (lbs) | 8,16 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24 RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products
