STRAIGHT PIPE WITH ONE SOCKET - (811.100.040 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.100.040 S
EAN no.: 5705499412727
VVS no.: 160120400
RSK no.: 1552753
NRF no.: 2172471
LVI no.: 0250035

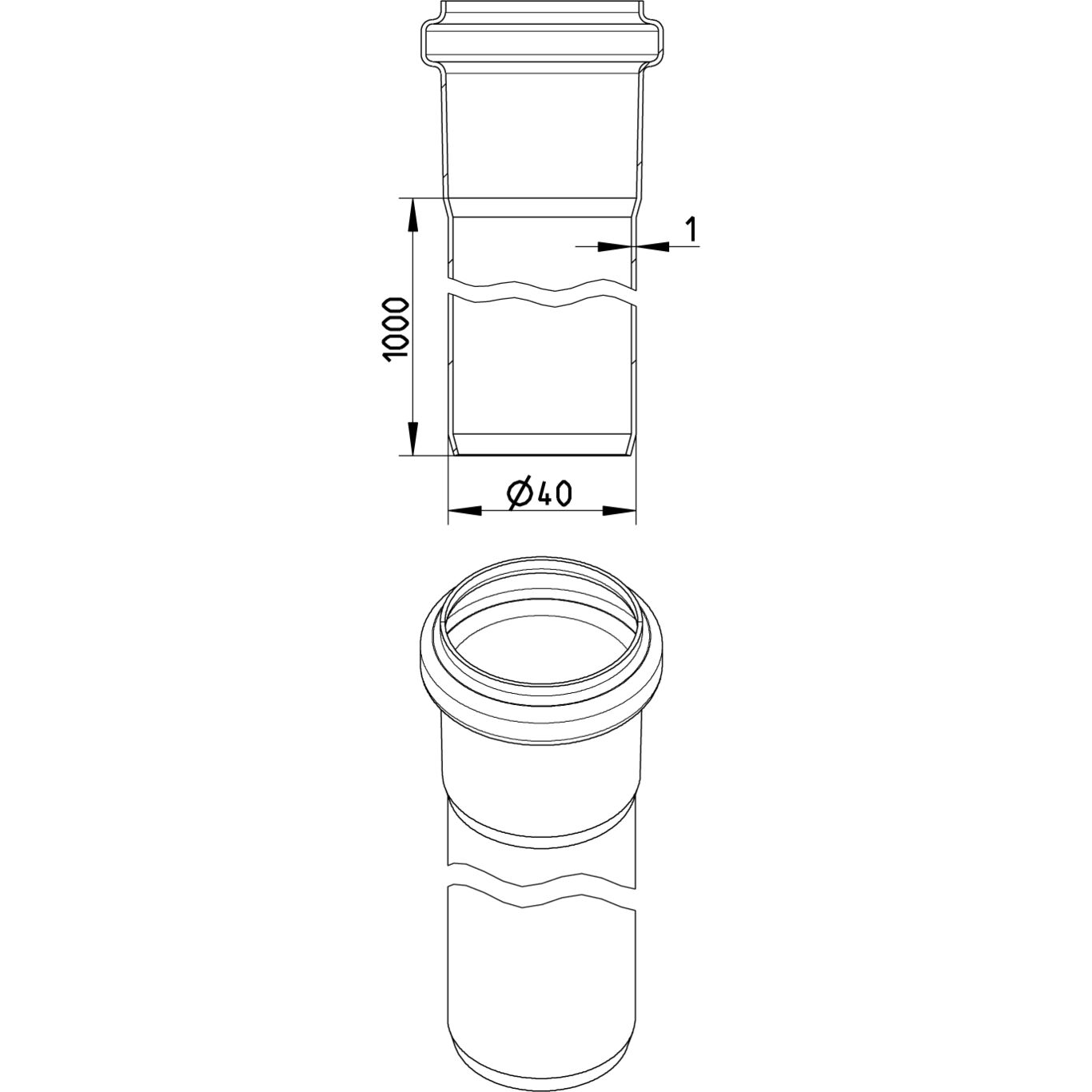

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø40mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of straight pipe (Inch) | 3' 3" |
| Length of straight pipe (mm) | 1000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (Inch) | 1½ |
| Outlet Diameter (mm) | 40 |
| Weight (kg) | 1,02 |
| Weight (lbs) | 2,25 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA_02 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22
